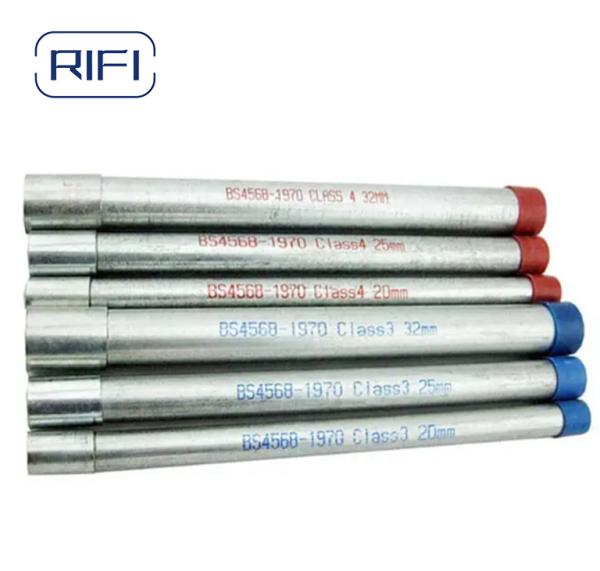

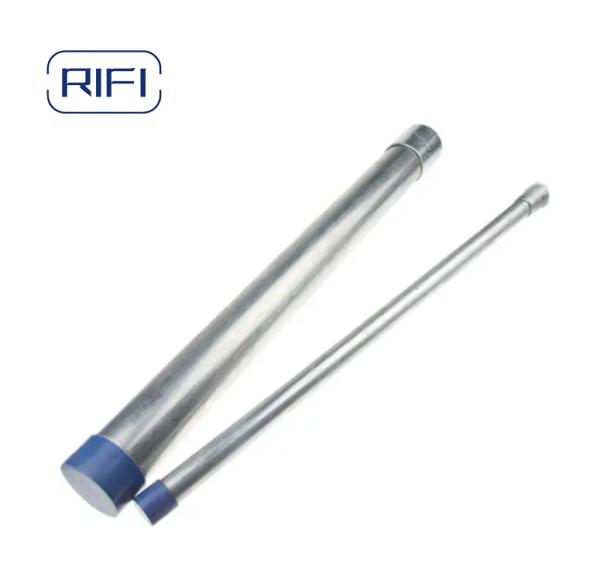

1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building
1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building
1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building
1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building
1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building
1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building
1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building
1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building
1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building
1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building
Specifications
Brand Name :
RIFI
Certification :
UL
Place of Origin :
China
MOQ :
1000PCS
Price :
$0.5-4/pcS
Payment Terms :
L/C, T/T
Supply Ability :
100000pcs/Month
Delivery Time :
30days
Packaging Details :
Woven Plastic Bag
Type :
Steel Gi Conduit
Finish :
Pre-Galvanized ; Hot DIP Galvanized
Standard :
BS4568 BS En61386
Class :
Class 3 ;Class 4
Thickness :
1.2 - 1.6 mm
Length :
3.75M
Usage :
Electrical Wiring
Description

Product Description

Quick Detail:
Standard:BS, BS 4568, BS 31
Grade:Q195-Q345, Q235, Q195
Thickness:1.2 - 1.6 mm
Section Shape:ROUND
Outer Diameter:3/4" 1" 1 1/4" 1 1/2" 2"
Place of Origin:Hunan, China
Application:Structure Pipe
Technique:pre-galvanized
Surface Treatment:galvanized
Special Pipe:EMT pipe; EMT conduit
Length:3.75M
Usage:Electrical Wiring
MOQ:1000PCS​

BS311940(Class 3)

Outside Diameter Length of Thread
Pipe Size Min Max Wall Thickness(mm) Length(m) Min Max
3/4" 18.8mm 19.1mm 1.2-1.6 3.81 13mm 15mm
1" 25.1mm 25.4mm 1.2-1.6 3.81 16mm 18mm
1-1/4" 31.5mm 31.8mm 1.2-1.6 3.81 18mm 20mm
1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building

​

​BS4568 1970(Class 3)

Outside Diameter
Pipe Size Min Max Wall Thickness(mm) Length(m)
20mm 19.6mm 19.9mm 1.2-1.6 3.75
25mm 24.4mm 24.9mm 1.2-1.6 3.75
32mm 31.5mm 31.8mm 1.2-1.6 3.75
40mm 39.4mm 39.7mm 1.2-1.6 3.75
50mm 49.4mm 49.7mm 1.2-1.6 3.75
1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building

​1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building

1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building

1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building

​1mm 1.2mm Gi Welded Steel Tube / Pipe And Hot DIP Galvanized Steel Conduit Pipe For Building

FAQ

Q1: Are you a trading company or manufacturing company?
A: Both we are, we have 2 production bases and about 10 sourcing factory to meet customer whole line items demand .

Q2:When can I get the quotation?
A1:For regular items within 24 hours; For sprcial items or customize items need a little more time .

Q3: How can I request product samples?
A: The samples are free but courier charge will be collected. Please send us samples list and courier account number.

Q4: How can I request a product catalog?
A: Pls send us your email and we will send you our e catalog ( pdf file ).
The PDF catalog we can send to you by email or WeTransfer.

Q5: What is your payment terms?
A:Normally 30% T/T deposit,balance against B/L copy;
the other is irrevocable L/C 100% at sight.

Q6: How about the delivery time?
A: Accord to your order list and quantity,mostly delivery in 30days.

Q7: How do we control the products' quality?
A: 1. high quality mold
2. raw materials control
3. production process quality control
4. final inspection
5. water testing (no leaking)
