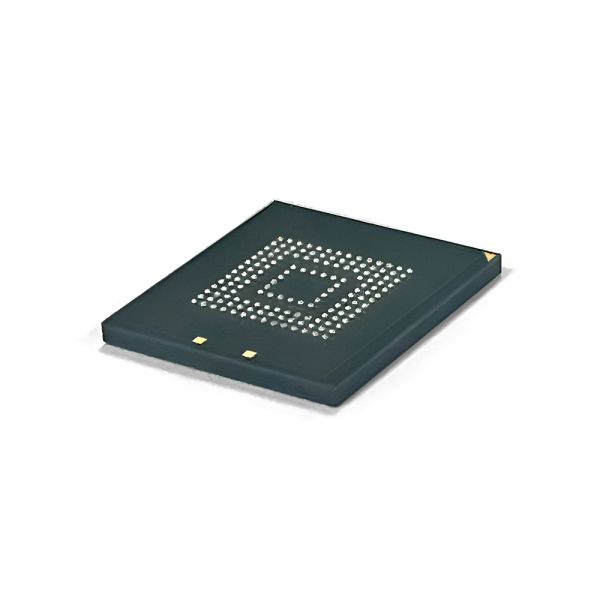

BGA153 EMMC5.1 64GB 128GB EMMC IC Memory Chip Embedded EMMC5.1
BGA153 EMMC5.1 64GB 128GB EMMC IC Memory Chip Embedded EMMC5.1
BGA153 EMMC5.1 64GB 128GB EMMC IC Memory Chip Embedded EMMC5.1
BGA153 EMMC5.1 64GB 128GB EMMC IC Memory Chip Embedded EMMC5.1
Specifications
Model Number :
G2864TLCB/G28128TLCB/G28256TLCB/G2564LTCB/G25128LTCB/G25256LTCB
Read speed :
Up to 330MB/s
Capacity :
64GB-256GB
Write speed :
Up to 240MB/s
Choice of Flash :
MLC/3DTLC/QLC NAND
Operating temperature :
0℃~70℃
Package Type :
BGA153
Brand Name :
PG
Place of Origin :
Shenzhen, China
Product name :
EMMC IC Memory Chip
MOQ :
50pcs
Agreement :
HS400
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100K a month
Delivery Time :
10 to 15 days
Description
BGA153 EMMC5.1 64GB 128GB EMMC IC Memory Chip Embedded EMMC5.1

The Gemini series eMMC5.1 is based on high-performance controller LDPC technology, Samsung and KIOXIA BiCS5 3DTLC/YMTC QLC NAND Flash for multi-layer stacking, complying with the HS400 standard. It meets customers' demanding requirements for large capacity, high performance, low power consumption, compatibility, and stability of eMMC in complex and diverse applications.

EMMC5.1 Specification
Model G2564GTLCB G25128TLCB G25256TLCB G25512TLCB
NAND flash 3DTLC NAND 3DTLC NAND 3DTLC NAND 3DTLC NAND
Capacity 64GB 128GB 256GB 512GB
CE 1 2 4 4
Read speed up to 330MB/s up to 330MB/s up to 330MB/s up to 330MB/s
Write speed up to 240MB/s up to 240MB/s up to 240MB/s up to 240MB/s
Operating temperature 0℃~70℃ 0℃~70℃ 0℃~70℃ 0℃~70℃
EP ≥3000 ≥3000 ≥3000 ≥3000
Packaging specification BGA 153 BGA 153 BGA 153 BGA 153
Size 11.5mmx13mmx1.0mm 11.5mmx13mmx1.0mm 11.5mmx13mmx1.2mm 11.5mmx13mmx1.2mm
BGA153 EMMC5.1 64GB 128GB EMMC IC Memory Chip Embedded EMMC5.1 BGA153 EMMC5.1 64GB 128GB EMMC IC Memory Chip Embedded EMMC5.1
Technical Details
Pin Definition

The pin definition of the eMMC chip is slightly different from that of a general SIM card or SD card, and needs to be modified appropriately according to the specific hardware device and chip specifications.

PCB Design Considerations

Power supply and interface: Ensure a stable power supply and ground cable for the eMMC chip.

Layout and routing: The length of the signal line should be matched as far as possible to reduce the delay and distortion of signal transmission.

Advantages of EMMC Chips
Suitability for Mobile Devices

Because of its compact design and high performance, eMMC chips have become the most popular storage units in mobile devices.

Data Security and Reliability

By integrating controllers and using advanced communication protocols, eMMC chips provide data security and reliability.

In short, eMMC chips play a crucial role in modern mobile devices due to their high efficiency, reliability and easy integration.

BGA153 EMMC5.1 64GB 128GB EMMC IC Memory Chip Embedded EMMC5.1
Why Choose Us?
  • Strong research and development strength
  • Our factory has advanced packaging and testing technology
  • Complete storage product production line
  • Operating our own brand PG focuses on the storage semiconductor field
  • Possess multiple copyright patents
  • High cost-effectiveness, and competitiveness
