PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153
PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153
PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153
PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153
Specifications
Brand Name :
NUW
Model Number :
G2504GPLCB/G2508GPLCB/G2516GPLCB
Place of Origin :
Shenzhen, China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100K a month
Delivery Time :
10 to 15 days
Product name :
PSLC eMMC 5.1
Nand :
PSLC
Storage Capacity :
4/8/16GB
Write Speed :
Up to 240 MB/s
Condition :
new
Bus Speed :
HS400 (up to 400 MB/s)
Key Features :
embedded EMMC
Error Correction :
Built-in ECC (Error Correction Code)
Description
PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153

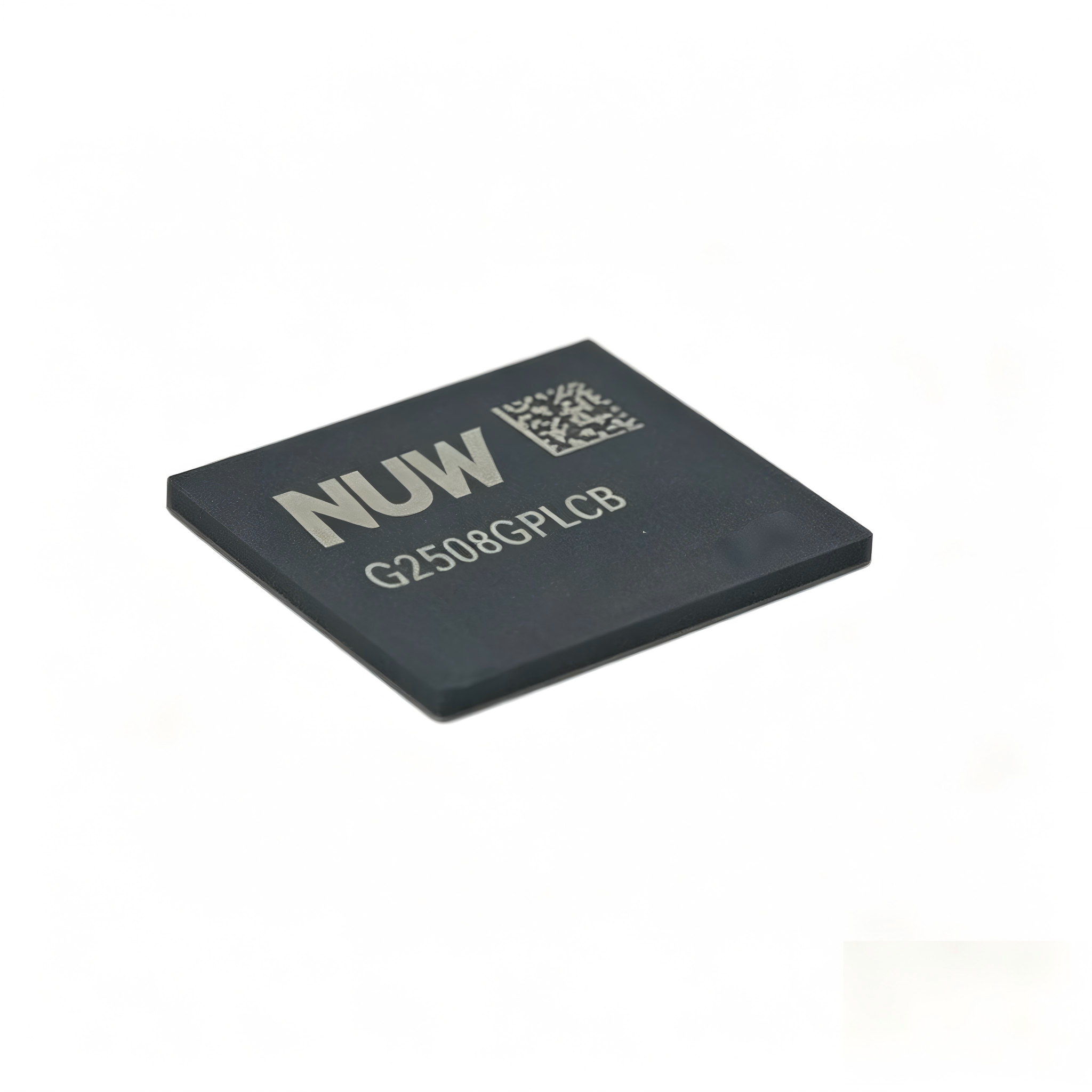

Our high-endurance pSLC eMMC 5.1 embedded memory chips are available in 4GB, 8GB and 16GB capacities, utilizing a standard 153-ball FBGA package and fully compliant with the JEDEC eMMC 5.1 specification.
Adopting pSLC technology at its core, the product configures NAND flash memory cells into a single-bit storage mode, delivering up to 30,000 P/E program/erase cycles — far exceeding that of standard TLC eMMC (approximately 3,000 cycles).
pSLC eMMC 5.1 is specially designed for embedded applications requiring high-frequency write operations and exceptional stability.

Core Features of pSLC eMMC 5.1

  • Interface Standard: eMMC 5.1, supporting HS400 high-speed mode with a maximum transfer rate of up to 400MB/s.
  • Capacity Options: 4GB / 8GB / 16GB.

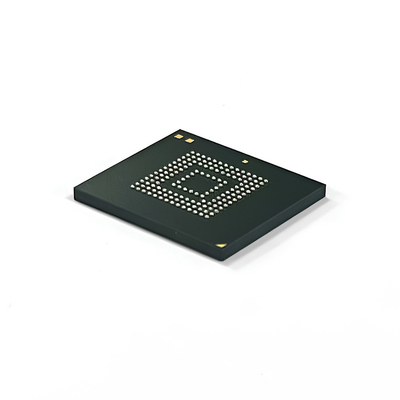

  • Package: BGA-153 (11.5×13.0mm), compatible with mainstream embedded motherboard designs.
  • Ultra-High Endurance: pSLC mode with 30,000 P/E cycles, greatly extending the service life of equipment.
  • Stability & Reliability: Built-in ECC error correction, bad block management and wear-leveling algorithms to ensure data integrity.

PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153

PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153

PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153PSLC EMMC 5.1 4/8/16GB Emmc Chips PE 30000 High Endurable Emmc BGA 153


Technical Specifications of PSLC eMMC 5.1
Model G2504GPLCB G2508PLCB G2516PLCB
NAND Flash PSLC PSLC PSLC
Capacity 4GB 8GB 16GB
Warranty 1 Year 1 Year 1 Year
Read Speed up to 330MB/s up to 330MB/s up to 330MB/s
Write Speed up to 240MB/s up to 240MB/s up to 240MB/s
Operating Temperature0 0℃~70℃ 0℃~70℃ 0℃~70℃
EP ≥30000 ≥30000 ≥30000
Packaging Specification BGA 153 BGA 153 BGA 153
Size 11.5mm×13mm×1.0mm 11.5mm×13mm×1.0mm 11.5mm×13mm×1.2mm
