eMMC 5.1 Embedded Storage with HS400 Interface for High-Speed Transmission and Low Power Consumption in Smart TVs & Set-Top Boxes
eMMC 5.1 Embedded Storage with HS400 Interface for High-Speed Transmission and Low Power Consumption in Smart TVs & Set-Top Boxes
eMMC 5.1 Embedded Storage with HS400 Interface for High-Speed Transmission and Low Power Consumption in Smart TVs & Set-Top Boxes
eMMC 5.1 Embedded Storage with HS400 Interface for High-Speed Transmission and Low Power Consumption in Smart TVs & Set-Top Boxes
Specifications
Brand Name :
PG
Model Number :
G2504GPLCB/G2508GPLCB/G2516GPLCB
Place of Origin :
Shenzhen, China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100K a month
Delivery Time :
10 to 15 days
Compatibility :
Tablet PC/ Set-top Box
Agreement :
HS400
Write Speed :
240MB/S
Origin :
SZ
Power Consumption :
Low power with power-saving modes
Use Case :
Learning Tablets
Operating Voltage :
2.7V - 3.6V
Custom :
Support
Storage Apacity :
16GB 8GB 4GB
Products Status :
New
Description

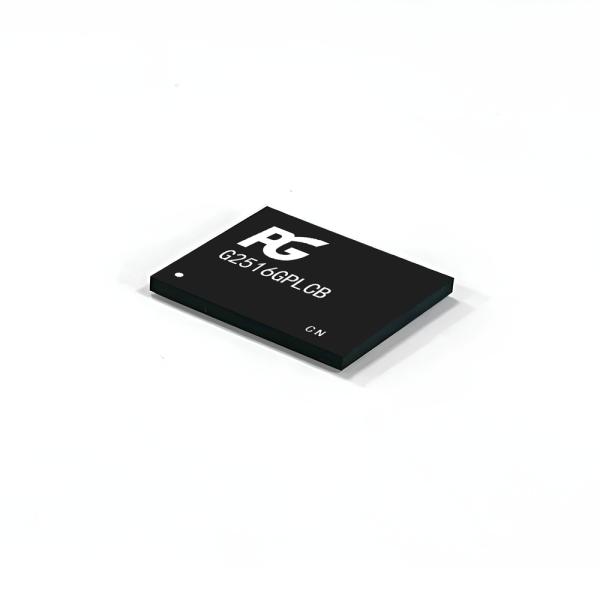

eMMC 5.1 8GB 16GB 4GB Consumer Grade eMMC 5.1 Embedded Storage for Smart TV & Set-Top Box
High-performance embedded storage solution designed for smart TVs and set-top boxes, delivering reliable performance and extended lifespan.
Core Performance Features
Mainstream eMMC 5.1 High-Speed Interface
Features the standard eMMC 5.1 high-speed interface with HS400 transmission mode, delivering maximum sequential read speeds of 270MB/s and write speeds of 210MB/s. Ensures faster app startup, smooth video playback, and seamless multi-task switching without loading delays. Backward compatible with eMMC 4.5 for broader device compatibility and easy upgrades.
Stable Performance & Long-Term Reliability
Built with high-performance controllers and SLC cache architecture with optimized read/write algorithms. Maintains stable random read/write performance without speed degradation over time. Features intelligent bad block management and wear leveling technology to ensure consistent performance with frequent data writing, extending product lifespan for long-term consumer use.
eMMC 5.1 Embedded Storage with HS400 Interface for High-Speed Transmission and Low Power Consumption in Smart TVs & Set-Top Boxes
Technical Specifications - PSLC eMMC 5.1
Model G2504GPLCB G2508GPLCB G2516GPLCB
NAND Flash PSLC PSLC PSLC
Capacity 4GB 8GB 16GB
Warranty 1 Year 1 Year 1 Year
Read Speed up to 330MB/s up to 330MB/s up to 330MB/s
Write Speed up to 240MB/s up to 240MB/s up to 240MB/s
Operating Temperature 0℃~70℃ 0℃~70℃ 0℃~70℃
EP ≥10000 ≥10000 ≥10000
Packaging Specification BGA 153 BGA 153 BGA 153
Size 11.5mm×13mm×1.0mm 11.5mm×13mm×1.0mm 11.5mm×13mm×1.0mm

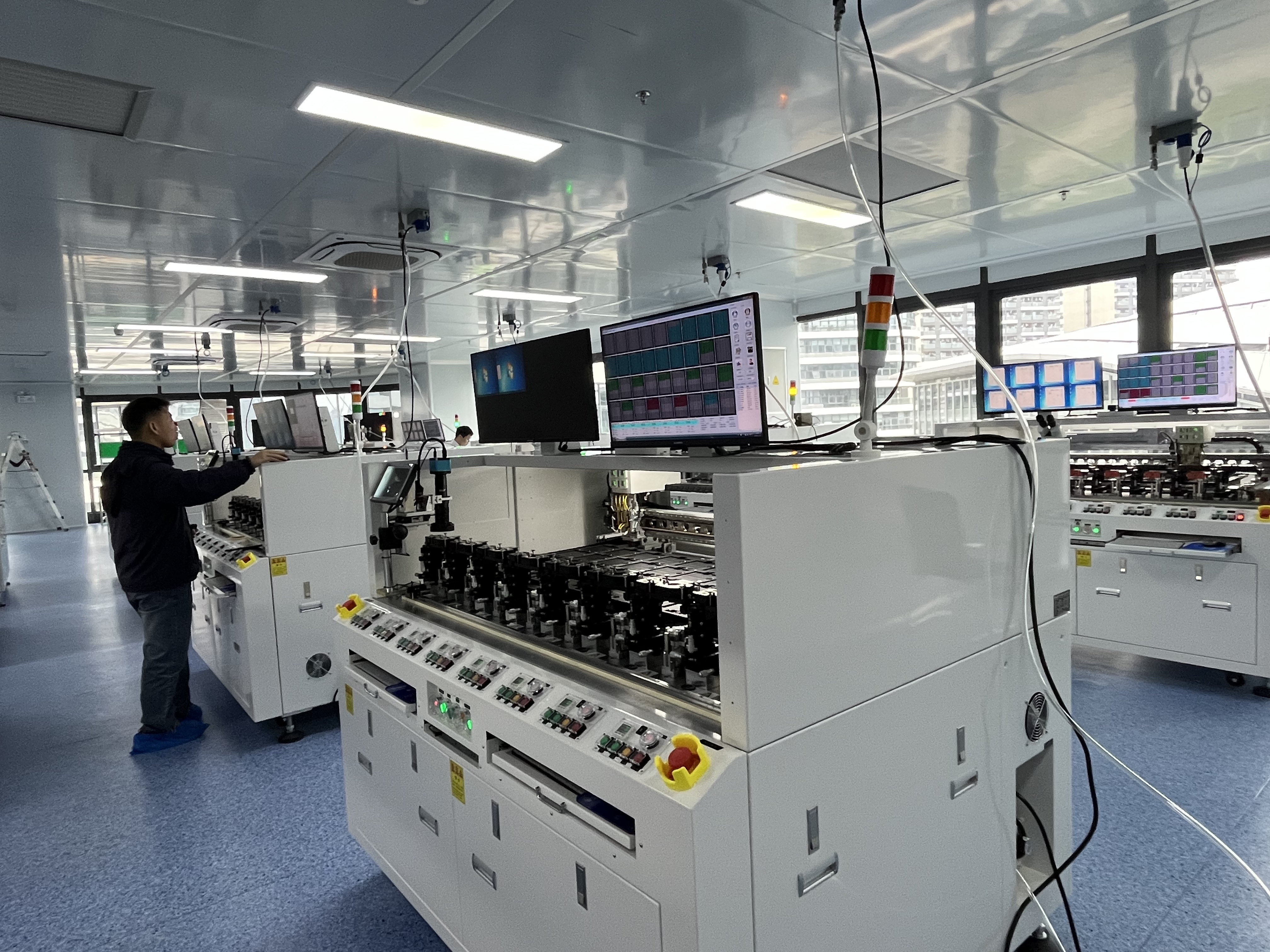

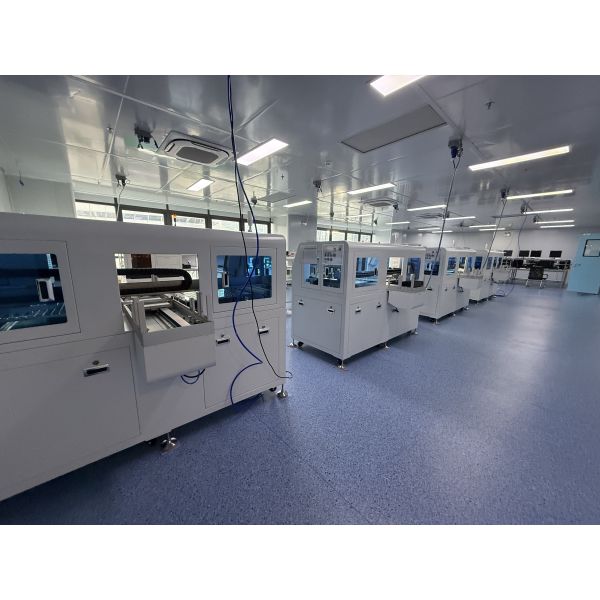

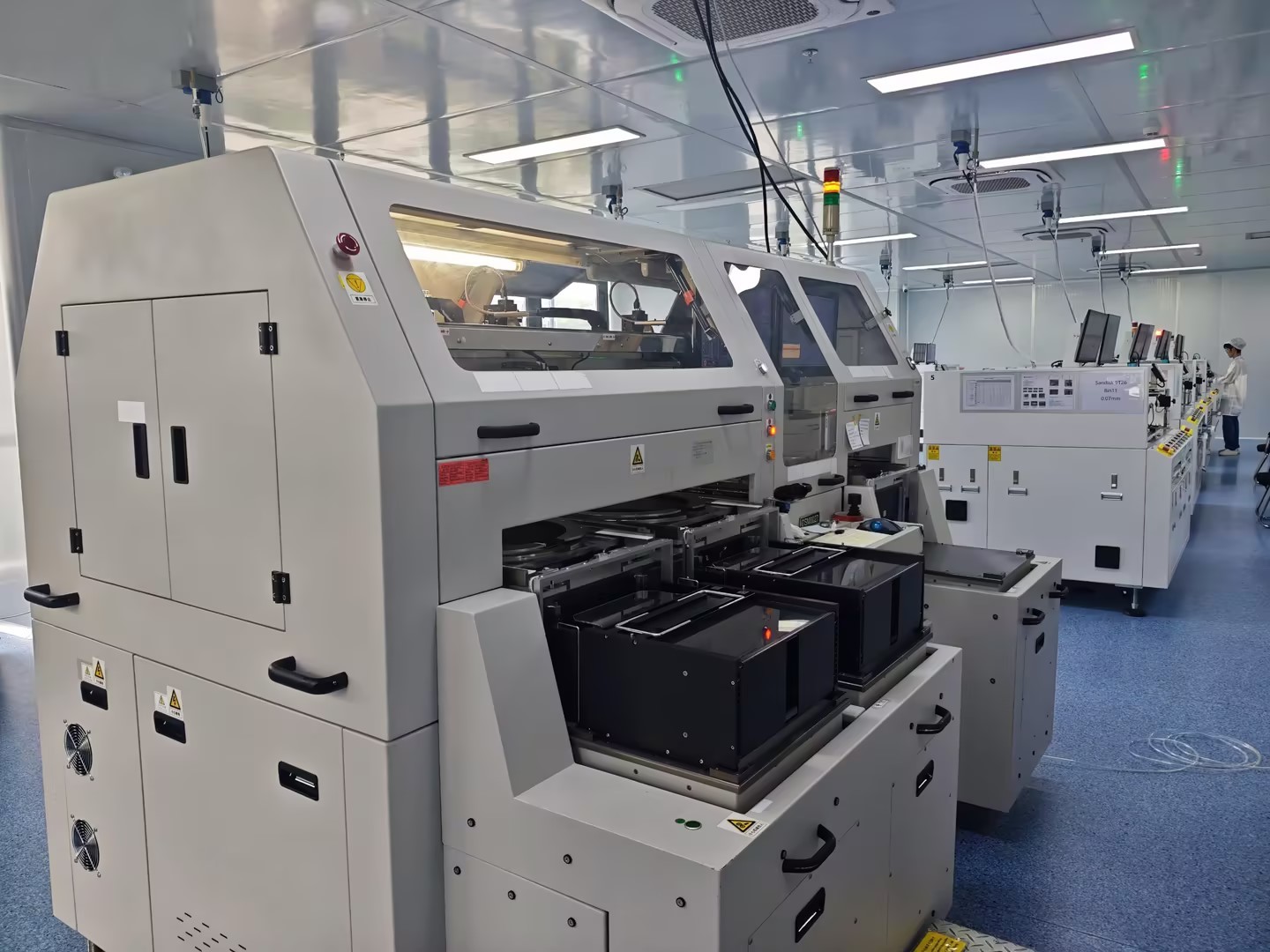

Production Line
