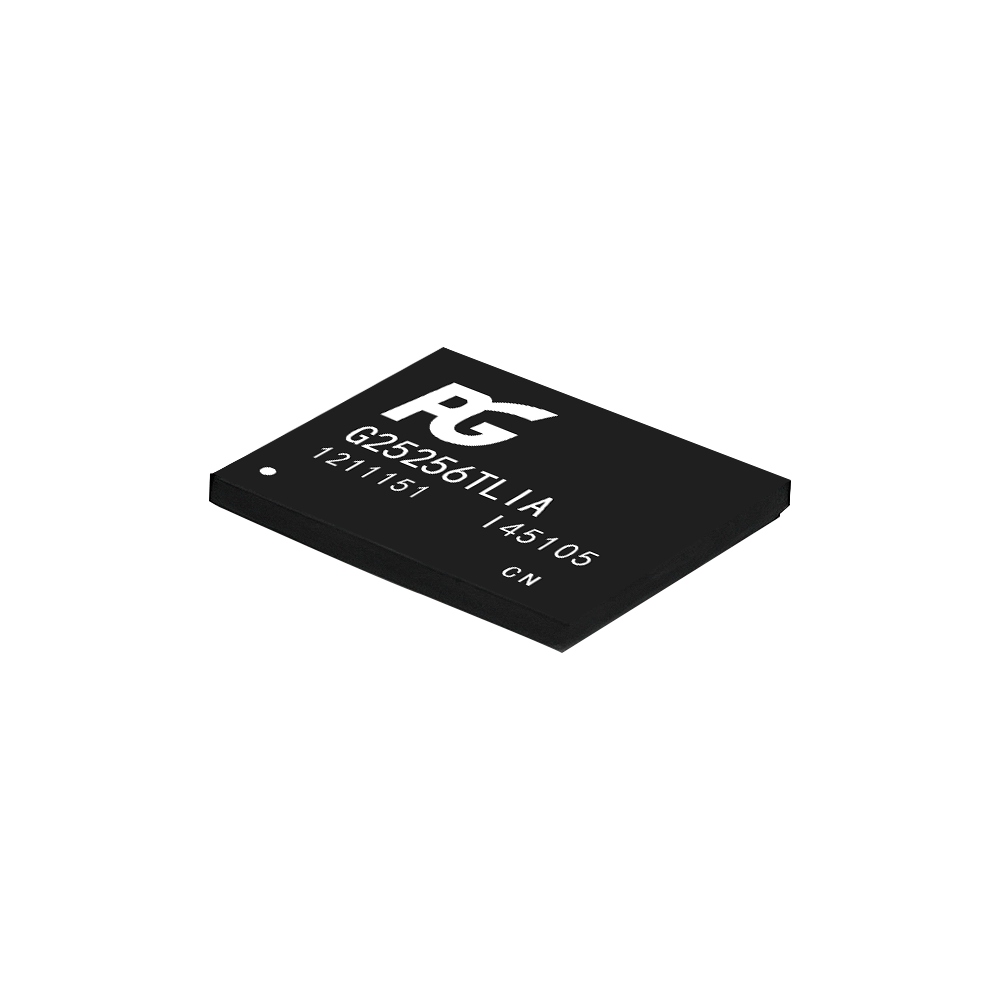

Original New Industrial eMMC Memory Flash Solution 64GB 128GB eMMC for IoT Edge Computing
Original New Industrial eMMC Memory Flash Solution 64GB 128GB eMMC for IoT Edge Computing
Specifications
Brand Name :
PG
Place of Origin :
Shenzhen, China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100K a month
Delivery Time :
10 to 15 days
Model Number :
G2864TLCB/G28128TLCB/G28256TLCB/G2564LTCB/G25128LTCB/G25256LTCB
Name :
Industrial eMMC for IoT Edge Computing
Wafer :
KIOXIA
Controller :
SMI
Warranty :
3 years
Write Speed :
240MB/s
Package :
BGA153
Material :
Plastic
Read speed :
330MB/s
Description
Original New Industrial eMMC Memory Flash Solution
Industrial-grade eMMC memory flash solutions in 64GB, 128GB, 256GB, and 512GB capacities, specifically designed for IoT edge computing and industrial automation applications.
Industrial Grade eMMC Overview
eMMC is a storage chip that integrates NAND Flash memory and flash controller into a standard BGA package. It connects to the main processor through a standard interface, simplifying system design. Compared with consumer-grade eMMC, industrial-grade eMMC maintains stricter standards for temperature range, reliability, lifespan, and quality control.
Industrial Grade eMMC Specifications
Model G2564GTLIH G25128TLIH G25256TLIH G25512TLIH
NAND Flash 3DTLC NAND 3DTLC NAND 3DTLC NAND 3DTLC NAND
Capacity 64GB 128GB 256GB 512GB
CE 1 2 4 4
Read Speed up to 330MB/s up to 330MB/s up to 330MB/s up to 330MB/s
Write Speed up to 240MB/s up to 240MB/s up to 240MB/s up to 240MB/s
Operating Temperature -40℃~85℃ -40℃~85℃ -40℃~85℃ -40℃~85℃
Packaging Specification BGA 153 BGA 153 BGA 153 BGA 153
Size 11.5mm*13mm*1.0mm 11.5mm*13mm*1.0mm 11.5mm*13mm*1.0mm 11.5mm*13mm*1.0mm
Original New Industrial eMMC Memory Flash Solution 64GB 128GB eMMC for IoT Edge Computing
Application Scenarios in IoT Gateway and Edge Computing
1. Carrier of Edge Operating Systems and Containerized Applications
Modern edge gateways typically run lightweight operating systems (Ubuntu Core, Yocto Linux, OpenWrt) or container engines (Docker) to deploy various microservice applications including protocol parsing, data filtering, and AI inference.
  • System Boot Disk: Stores complete operating system kernel, file system, and basic services with extremely high startup reliability requirements
  • Storage Container Images and Applications: Local storage of multiple container images and applications ensures edge applications continue running independently during network interruptions
  • Industrial Grade Requirement: System disk failure renders equipment inoperable, requiring costly on-site maintenance. High reliability and power-off protection prevent catastrophic failures
2. Local Buffering and Preprocessing of Time-Series Data
Gateways connect to dozens or hundreds of sensors collecting temperature, pressure, vibration, and other data at high frequencies (typically once per second).
  • Data Buffer Pool: Reliably stores collected raw data locally during network congestion or cloud service interruptions to prevent data loss, with automatic transmission resumption when connectivity is restored
  • Preprocessing Workspace: Cleans, compresses, formats, aggregates, and calculates raw data (generating 5-minute averages) to create simplified data for upload, reducing bandwidth and cloud storage costs
  • Industrial Grade Requirement: Continuous high-frequency writing of small files demands exceptional storage write durability (DWPD/TBW). Consumer-grade eMMC would quickly wear and fail under such operational loads
