Data Security Automotive eMMC 5.1 Embedded Flash Storage
Data Security Automotive eMMC 5.1 Embedded Flash Storage
Data Security Automotive eMMC 5.1 Embedded Flash Storage
Data Security Automotive eMMC 5.1 Embedded Flash Storage
Specifications
Brand Name :
PG
Operating Temperature :
-40C to 105C
Packaging Details :
Anti-static tray + vacuum sealed bag, export-grade carton
Memory :
Flash
Supply Ability :
100K a month
Delivery Time :
10 to 15 days
Price :
Negotiable
Payment Terms :
T/T,L/C
Application :
Telematics T-Box
Capacity :
128GB
Certification :
AEC-Q100 Grade 2、IATF 16949、CE、RoHS、ISO9001
Security Features :
RPMB, Secure Boot, Write Protection
Model Number :
G28128TLCA
Place of Origin :
Shenzhen, China
Interface :
eMMC 5.1 HS400
MOQ :
50 Pieces
Package :
BGA153
Product Name :
Data Security Automotive eMMC 5.1
Description
Data Security Automotive eMMC 5.1 Embedded Flash Storage
The PG G2816TLCA is a data security focused automotive eMMC 5.1 embedded flash storage device designed for telematics control units (T-Box), event data recorders, and other security-sensitive in-vehicle modules. Its 16GB BGA153 footprint delivers a compact, dependable storage foundation with hardware-backed security features that protect sensitive vehicle data.
Data security stability in the automotive environment means more than error correction. This device integrates a replay protected memory block (RPMB), secure boot support, and write protection, giving developers the tools to store keys, protect firmware integrity, and prevent unauthorized modification. Combined with power-loss protection and LDPC ECC, the G2816TLCA keeps critical data consistent and secure across the full vehicle lifecycle.
Built on the eMMC 5.1 HS400 interface, this embedded flash storage achieves fast, reliable data access while operating across the -40°C to 105°C automotive temperature range. It is engineered to deliver the data security stability that connected and autonomous vehicle platforms require as they handle increasing volumes of sensitive information.
Product Models
Model Capacity Protocol Standards NAND Package Dimensions Operating Temperature Storage Temperature
G2864GTLCA 64GB eMMC 5.1 3D TLC FBGA153 11.5*13mm -40℃~105℃ -50℃~125℃
G28128TLCA 128GB eMMC 5.1 3D TLC FBGA153 11.5*13mm -40℃~105℃ -50℃~125℃
G28256TLCA 256GB eMMC 5.1 3D TLC FBGA153 11.5*13mm -40℃~105℃ -50℃~125℃
G2819GPLCA 19GB eMMC 5.1 pSLC FBGA153 11.5*13mm -40℃~105℃ -50℃~125℃
Technical Specifications
Brand PG
Model Number G28128TLCA
Capacity 128GB
Interface eMMC 5.1 HS400
Package BGA153 (11.5 x 13 x 1.0 mm)
Operating Temperature -40°C to 105°C
Supply Voltage 3.3V VCC / 1.8V VCCQ
Security RPMB, Secure Boot, Write Protection
NAND Flash 3D TLC with LDPC ECC
Data Protection Power-loss protection
Key Features and Advantages
  • Hardware-backed RPMB for secure key and data storage
  • Secure boot support to verify firmware integrity
  • Write protection to prevent unauthorized modification
  • Power-loss protection for consistent writes during shutdown
  • LDPC ECC for robust error correction and data security stability
  • Automotive grade temperature range from -40°C to 105°C

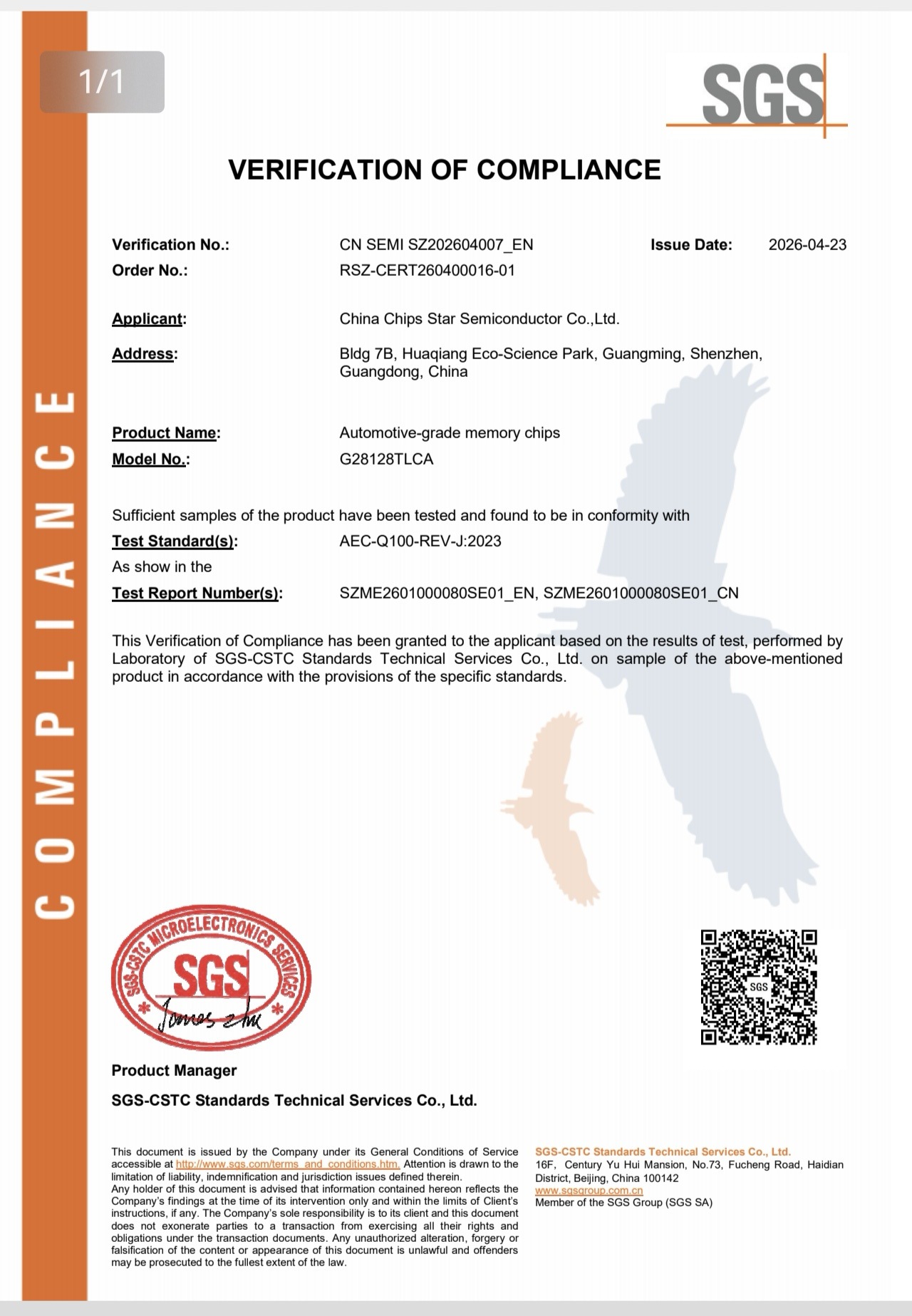

Related Certificates
Data Security Automotive eMMC 5.1 Embedded Flash Storage Data Security Automotive eMMC 5.1 Embedded Flash Storage Data Security Automotive eMMC 5.1 Embedded Flash Storage
Typical Applications
  • Telematics control units (T-Box)
  • Event data recorders (EDR)
  • Vehicle-to-everything (V2X) communication modules
  • Connected car gateways
  • Fleet management terminals
Quality and Reliability Assurance
PG combines hardware-backed security with disciplined manufacturing to deliver dependable data security stability across the vehicle lifecycle. Every automotive eMMC 5.1 embedded flash storage unit is traceable by wafer lot and passes temperature cycling, burn-in, and functional test before shipment. We supply complete datasheets, reliability reports, and secure provisioning guidance to help telematics and T-Box customers implement RPMB, secure boot, and write protection correctly. This end-to-end control protects sensitive vehicle data and gives your engineering team a trusted storage partner for connected and autonomous platforms.
Frequently Asked Questions
How does this eMMC improve data security stability in vehicles?
It combines RPMB for tamper-resistant storage, secure boot to verify firmware, and write protection to block unauthorized changes. Power-loss protection and LDPC ECC further ensure data remains consistent and recoverable, strengthening overall data security stability in the vehicle.
Is this embedded flash storage suitable for a telematics T-Box?
Yes. The 16GB capacity, compact BGA153 package, and hardware security features make it well matched for T-Box and connected gateway designs that must protect credentials and communication data.
Do you support custom firmware and secure provisioning?
We can assist with secure provisioning and provide engineering support to integrate the security features into your platform. Contact us to discuss your specific requirements.
