IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch
IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch
Specifications
Brand Name :
YBX
Model Number :
YB11B3-10A-Q
Certification :
cUL, TUV, CQC, CE, ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500000 Piece/Pieces per Month
Delivery Time :
15-25 days
Packaging Details :
56.5*28.5*22.5cm/CTN
Name :
YB11B3-10A-Q
Voltage :
115V/250V
Current :
1A 3A 6A 8A 10A
Climatic category :
-25°C~+85°C(25/85/21)
Line to Line :
1450VDC
Line to Ground :
2000VAC/2250VDC
Approval :
ISO9001:2008 cUL TUV CQC CE ROHS
Protection level :
IP40 according to IEC 60529
Flammability corresponding to :
UL 94V-0
material :
hardware
Description

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

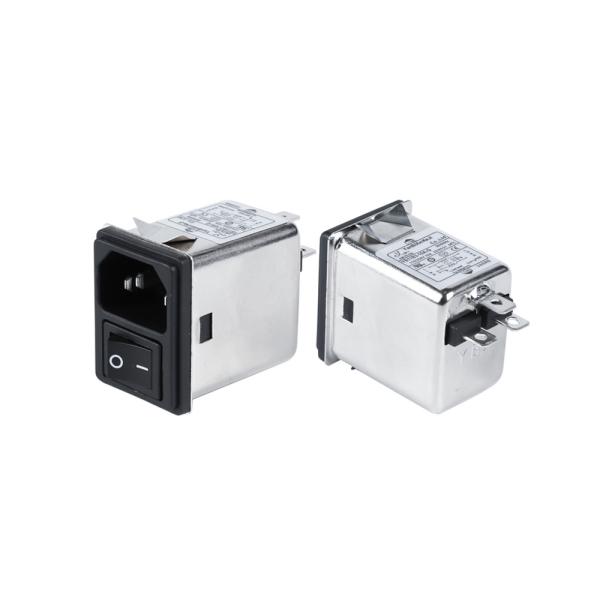

The product pictures:

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

Technical Specification:

Item EMI Power Filter
Model EMI Power Filter YB-B3
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 125VAC 250VAC
Rated Current 1A 3A 6A 10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 115VAC/50HZ 0.3uA Max
MOQ Negotiable
Price Negotiable
Lead Time 5~15 weekday

Features:

(1) Versions to 10A are available with 1 pole rocker switch

(2) There are a variety of parts and combinations to meet different customer's EMC tests

(3) Customized products according to customer's requirements

Typical Applications:

1.Portable electrical and electronic equipment;

2.Medical equipment;

3.Test and measurement equipment;

4.Small and medium-sized machines and household equipment

5.Single-phase power supply,switch-mode power supply

Rule of Nomination:

YB 11 B3 - 10A - Q ( R 5 G )

¦ ¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional

Tabulates:

Model No. Rated Current
@40°C
 Terminal Options*
 Bleeder resistor (optional)
G		 Leakage current 250V/50Hz Electrical Schematic
 Rated Voltage(V) Operating Frequency(Hz)
YB11B3-1A 1A Q S - - -

<0.8mA

 Fig.1

115/250V

50/60Hz
YB11B3-2A 2A Q S - - - Fig.1
YB11B3-3A 3A Q S - - - Fig.1
YB11B3-4A 4A Q S - - - Fig.1
YB11B3-6A 6A Q S - - - Fig.1
YB11B3-8A 8A Q S - - - Fig.1
YB11B3-10A 10A Q S - - - Fig.1
YB11B4-1A 1A Q S - - - Fig.1
YB11B4-2A 2A Q S - - - Fig.1
YB11B4-3A 3A Q S - - - Fig.1
YB11B4-4A 4A Q S - - - Fig.1
YB11B4-6A 6A Q S - - - Fig.1
YB11B4-8A 8A Q S - - - Fig.1
YB11B4-10A 10A Q S - - - Fig.1

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

Medical Type Tabulates:

Model No. Rated Current
@40°C
 Terminal Options
 Bleeder resistor(optional) Medical equipment
G		 Leakage current 250V/50Hz Electrical Schematic
 Rated Voltage(V) Operating Frequency(Hz)
YB11B3-1A-x(R5) 1A Q S - 1 5 -

<5μA

 Fig.3

115/250V

50/60Hz
YB11B3-2A-x(R5) 2A Q S - 1 5 - Fig.3
YB11B3-3A-x(R5) 3A Q S - 1 5 - Fig.3
YB11B3-4A-x(R5) 4A Q S - 1 5 - Fig.3
YB11B3-6A-x(R5) 6A Q S - 1 5 - Fig.3
YB11B3-8A-x(R5) 8A Q S - 1 5 - Fig.3
YB11B3-10A-x(R5) 10A Q S - 1 5 - Fig.3
YB11B4-1A-x(R5) 1A Q S - 1 5 - Fig.3
YB11B4-2A-x(R5) 2A Q S - 1 5 - Fig.3
YB11B4-3A-x(R5) 3A Q S - 1 5 - Fig.3
YB11B4-4A-x(R5) 4A Q S - 1 5 - Fig.3
YB11B4-6A-x(R5) 6A Q S - 1 5 - Fig.3
YB11B4-8A-x(R5) 8A Q S - 1 5 - Fig.3
YB11B4-10A-x(R5) 10A Q S - 1 5 - Fig.3

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch*Q: Fast-on 6.35x0.8mm IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch S: solder 4.0x0.8mm IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch W: UL1015 18awg

Electrical schematic:

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

Fig.1

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

Fig.3

Mechanical Dimension(Unit: mm)

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch


Case A B C D E F G H I J K
B3/B4 52 28 39.5 30 39 13 11 12.5 6.35*0.8
Tolerances ±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15

Insertion loss table(In 50ohm system according to IEC/CISPR No.17)

Common mode -------- differential mode

1A 3A

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

6A 8A

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

10A

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

Packaging

Power Line Filter: CTN/192pcs

N/G W.: 12/13.5KG

Measures:0.565*0.285*0.225m

Shipment

---Shipping terms: DHL, UPS, FedEx, TNT, EMS, or the carrier.

---Port is Shenzhen or as requests.

Our company:

  • We are a listed company. NO:667344, brand guarantee, reliable quality
  • We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality
  • We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.
  • Free EMC rectification technical support and provide free test samples
  • Automation technology, scale production, excellent price
  • Good service, fast delivery!
  • After-sales service: free replacement within three months, free maintenance within 6 years, life-long maintenance
  • Cooperate with the top scientific research laboratory
  • We have a professional R&D team

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switchIEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch
