Medical Equipment YB11C2-1A-Q(R5) EMI Filter High Efficiency IEC Inlet Power Line Filter

Three In One IEC Inlet Emi Filter:

3-in-1 IEC inlet EMI filter is a passive electronic component that combines three functions into a single unit: the IEC power input module, fuse and jack. It is designed to be mounted on socket devices and is usually used in electronic devices that require a power input.
Feature Of IEC Inlet Emi Filter:
1. IEC inlet: An IEC inlet is a standard connection for a power cord that allows electronic equipment to be plugged into a wall outlet or other power source.
2. Low insertion loss :IEC imported EMI filter will cause a certain signal power loss, known as insertion loss, our insertion loss is controlled between 30-90dB
3. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current.
Typical Application:
--Medical equipment
--Portable electrical and electronic equipment
--Small and medium-sized machines and household equipment
--Single-phase power supply,switch-mode power supply

Technical Specification:

Item Medical IEC Inlet Filter
Model IEC Inlet Emi Filter YB11C2-10A-Q
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 100pcs
Price USD1.5~8.8/Meter
Lead Time 5~15 weekday

Rule of Nomination:

YB------11-------C2--------1A----------Q----------------(R-----------5)

¦ ¦ ¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional medical type

C1,C3,C5 --- single fuse

C2,C4,C6 --- double fuse

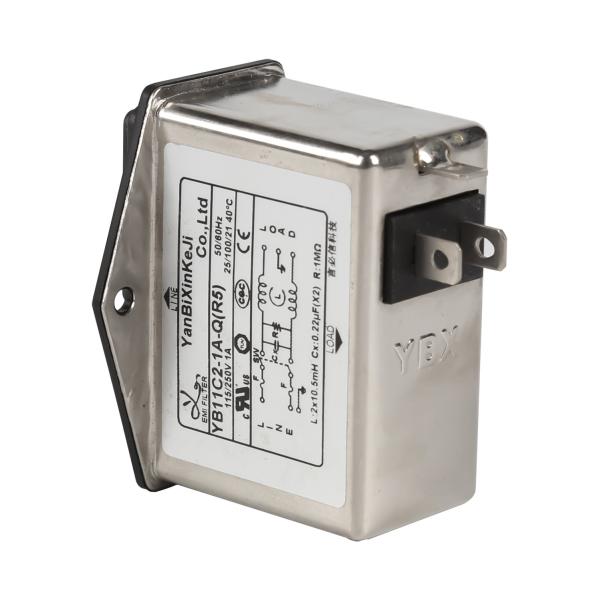

YB11C2-10A-Q Picture Picture:

Medical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line FilterMedical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line Filter

Tabulates:

Model No. Rated Current
@40°C
 Terminal Options

Bleeder resistor (optional)

R(MΩ)

 Medical equipment
G		 Leakage current 250V/50Hz Electrical Schematic
 Rated Voltage(V) Operating Frequency(Hz)

YB11C2-1A-x(R5) 1A Q S - 1 5 -

<5μA

 Fig.1

115/250V

50/60Hz
YB11C2-2A-x(R5) 2A Q S - 1 5 - Fig.1
YB11C2-3A-x(R5) 3A Q S - 1 5 - Fig.1
YB11C2-4A-x(R5) 4A Q S - 1 5 - Fig.1
YB11C2-6A-x(R5) 6A Q S - 1 5 - Fig.1
YB11C2-8A-x(R6) 8A Q S - 1 5 - Fig.1
YB11C2-10A-x(R5) 10A Q S - 1 5 - Fig.1

Model No. Rated Current
@40°C
 Terminal Options
 Bleeder resistor (optional) R(MΩ) Medical equipment
G		 Leakage current 250V/50Hz Electrical Schematic
 Rated Voltage(V) Operating Frequency(Hz)
YB11C3-1A-x(R5) 1A Q S - 1 5 -

<5μA

 Fig.1

115/250V

50/60Hz
YB11C3-2A-x(R5) 2A Q S - 1 5 - Fig.1
YB11C3-3A-x(R5) 3A Q S - 1 5 - Fig.1
YB11C3-4A-x(R5) 4A Q S - 1 5 - Fig.1
YB11C3-6A-x(R5) 6A Q S - 1 5 - Fig.1
YB11C3-8A-x(R5) 8A Q S - 1 5 - Fig.1
YB11C3-10A-x(R5) 10A Q S - 1 5 - Fig.1
YB11C4-1A-x(R5) 1A Q S - 1 5 - Fig.1
YB11C4-2A-x(R5) 2A Q S - 1 5 - Fig.1
YB11C4-3A-x(R5) 3A Q S - 1 5 - Fig.1
YB11C4-4A-x(R5) 4A Q S - 1 5 - Fig.1
YB11C4-6A-x(R5) 6A Q S - 1 5 - Fig.1
YB11C4-8A-x(R5) 8A Q S - 1 5 - Fig.1
YB11C4-10A-x(R5) 10A Q S - 1 5 - Fig.1

Model No. Rated Current
@40°C
 Terminal Options
 Bleeder resistor (optional) R(MΩ) Medical equipment
G		 Leakage current 250V/50Hz Electrical Schematic
 Rated Voltage(V) Operating Frequency(Hz)
YB11C5-1A-x(R5) 1A Q S - 1 5 -

<5μA

 Fig.1

115/250V

50/60Hz
YB11C5-2A-x(R5) 2A Q S - 1 5 - Fig.1
YB11C5-3A-x(R5) 3A Q S - 1 5 - Fig.1
YB11C5-4A-x(R5) 4A Q S - 1 5 - Fig.1
YB11C5-6A-x(R5) 6A Q S - 1 5 - Fig.1
YB11C5-8A-x(R5) 8A Q S - 1 5 - Fig.1
YB11C5-10A-x(R5) 10A Q S - 1 5 - Fig.1
YB11C6-1A-x(R5) 1A Q S - 1 5 - Fig.1
YB11C6-2A-x(R5) 2A Q S - 1 5 - Fig.1
YB11C6-3A-x(R5) 3A Q S - 1 5 - Fig.1
YB11C6-4A-x(R5) 4A Q S - 1 5 - Fig.1
YB11C6-6A-x(R5) 6A Q S - 1 5 - Fig.1
YB11C6-8A-x(R5) 8A Q S - 1 5 - Fig.1
YB11C6-10A-x(R5) 10A Q S - 1 5 - Fig.1

Medical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line Filter*Q: Fast-on 6.35x0.8mm Medical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line Filter S: solder 4.0x0.8mm Medical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line Filter W: UL1015 18awg

Electrical schematic:

Medical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line Filter

Fig.1

Mechanical Dimension(Unit: mm)

C1/C2 CASE

Medical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line Filter

Case A B C D E F G H I J K L
C1/C2 62 61 29.5 50 40 65 11 11 17 3.5 6.3*0.8 46.0
Tolerances ±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15 ±0.15

C3/C4 CASE

Medical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line Filter

Case A B C D E F G H I J K L
C3/C4 62 61 29.5 80 72 35 11 11 17 3.5 6.35*0.8 46
Tolerances ±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15 46

C5/C6 CASE

Medical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line Filter

Case A B C D E F G H I J K
C5/C6 62 61 29.5 65.5 32 11 11 19 6.35*0.8
Tolerances ±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

1A 3A

Medical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line Filter Medical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line Filter

6A 8A

Medical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line Filter Medical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line Filter

10A

Medical Equipment Double Fuse Emi Power Filter High Efficiency IEC Inlet Power Line Filter
