YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter
YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter
YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter
YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter
YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter
YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter
Specifications
Brand Name :
YBX
Model Number :
YB12D2-10A-S(R)
Certification :
cUL, TUV, CQC, CE, ROHS
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Delivery Time :
20-25 days
Packaging Details :
56.5*28.5*22.5cm
Product :
Single Phase EMI Filter
Rated current :
1A-10A
Frequency :
50/60Hz
Case :
Metal
Brand :
YBX
Certificate :
ISO9001 cUL TUV CQC CE ROHS
Description

115vac/250vac Single Phase Filter Power Line Filter For Fitness Equipment

High Performance One Stage 10A Single Phase Filter:

YB12D2-10A-S(R) Single Phase Filter:

YB12D2-10A-S(R) is the single phase filter. According to different equipment to choose the appropriate output mode, its connection mode can be selected fast-on terminal, M4 screw, electronic wire. The maximum rated current up to 50 amps. Designed with both common mode and differential mode performing high noise suppression.

Filter Selection Table:
Part No. Case Rated Currents (A) Output Connections
YB12D2-6A D2 6 Fast-on terminal
YB12D2-10A D2 10
YB12D2-15A D2 15 Wire
YB12D2-20A D2 20
YB12D2-30A D2 30 M4 Screw
YB12D2-40A D2 40

YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter*Q: Fast-on 6.35x0.8mm YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter S: Screw lug YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise FilterW: UL1015 18awg

Naming Rule:

YB 12 D2 - 10A - S
∣ ∣ ∣ ∣ ∣
Our brand Circuit Dimension Current Output Connection
12:12 circuit D3 10A :10 amp Q:fast-on tab 250
20A :20 amp W:wire
30A :30 amp S:M4 screw

Features Of Single Phase Filter:

-- The rated current can be offered from 1 to 50 amps.
-- Various output selections such as M4 screw terminal wire and terminal block.
-- Low leakage current version upon requested.
-- The compact size can be applied to various situations.
-- It meets the relevant safety approval regulations, such as UL, CSA and the CE marking.

EMI Filter Application:

1. Electrical and electronic equipment

2. Medical equipment

3. Datacom equipment

4. Office automation equipment

Technical Specification:

Item Single Phase Filter Rated Current 1~10A
Model YB12D2-10A-S(R) Environmental Temperature 40°C
Transfer Function Low Pass Temperature Range 25 / 085 / 21
Package Type Surface Mount Operating Frequency 50/60HZ
Nominal Center Frequency 10K-30MHZ Line to Line 1450VDC
Insertion Loss 60~90dB Line to Ground 2250VDC
Input Impedance 50Ω Maximum Leakage Current 250VAC/60HZ 0.8mA Max
Rated Voltage 115V/250V MOQ 100pcs

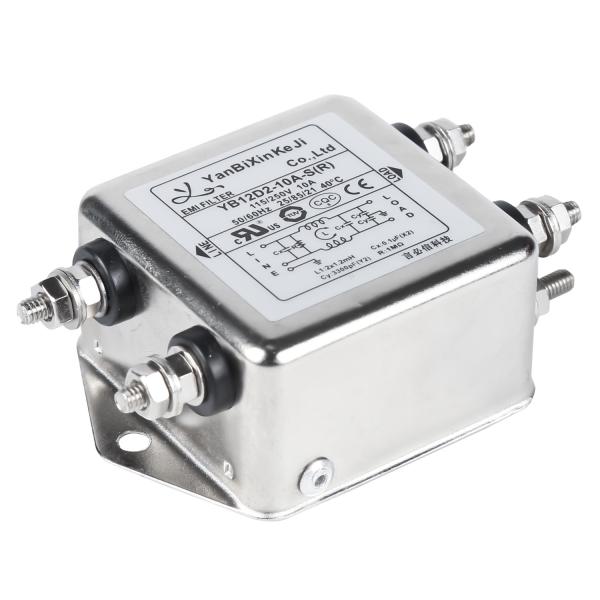

YB12D2-10A-S(R) Filter Picture:

YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter

Electrical Schematic:

YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter

Mechanical Dimension(Unit: mm)

YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise FilterYB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter

YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter

Our Certificates:

YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter
