Specifications
Model Number :
TD2418
MOQ :
1000
Delivery Time :
14-21days
Payment Terms :
T/T L/C
Price :
1.1
Certification :
ISO9001:2015; RoHS; REACH
Supply Ability :
100000pcs
Brand Name :
Careful Tenda
Place of Origin :
Guangdong, China
Description
Careful Tenda Upright Heavy-Industrial Common Mode Filter with Pure Copper Bar Winding TD2418
The TD2418 vertical common mode inductor utilizes an oversized anti-saturation toroidal core and thick pure copper flat wire to maintain stable inductance under extreme current conditions. The flat winding design significantly reduces AC resistance and heat generation, while reinforced insulation ensures safe high-voltage operation. Featuring an industry-standard pin footprint, this component is ideal for high-power supplies, industrial drives, and CCC-certified equipment. Manufactured under ISO9001 standards and compliant with RoHS and REACH requirements.
Key Features
  • High-performance anti-saturation toroidal core
  • Pure copper flat wire construction
  • Minimized AC resistance and temperature rise
  • Reinforced insulation for superior voltage withstand capability
  • 10×13 mm pin footprint for space-efficient designs
  • Compact vertical design
  • ISO9001-manufactured and RoHS/REACH compliant
Technical Specifications
Type Common mode choke
Function EMI/EMC Suppression
Model Number TD2418
Brand Name Careful Tenda
Application EMI/EMC Suppression
Place of Origin Guangdong, China
Inductance 10mH Min
Package / Case Yes
Size / Dimension 23.5×16×31.5mm
Height 35mm
Number of Coils 48
Material - Core R12K
DC Resistance (DCR) 100mΩ Max
Product Images
Careful Tenda Upright Heavy-Industrial Common Mode Filter with Pure Copper Bar Winding TD2418

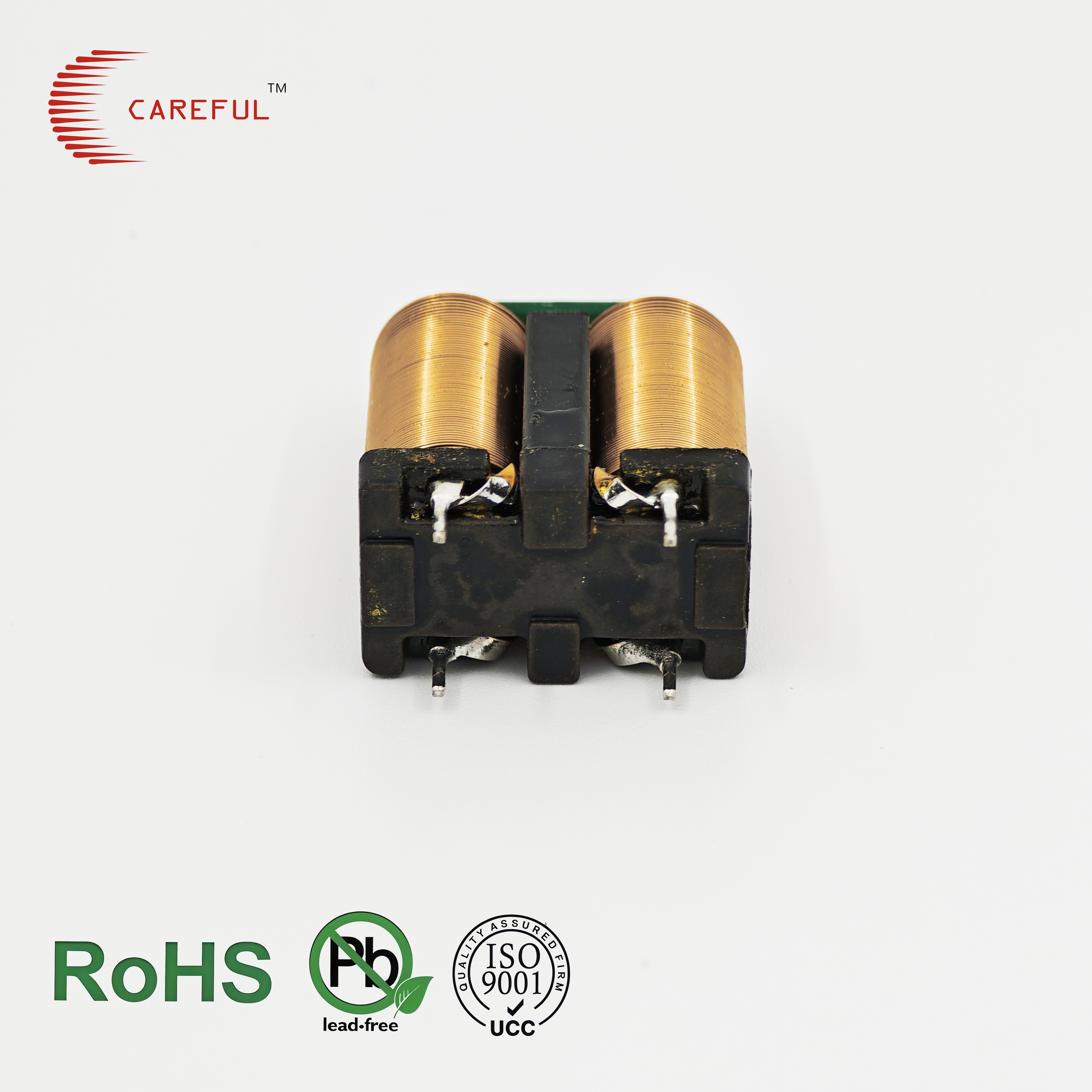

Front View
Careful Tenda Upright Heavy-Industrial Common Mode Filter with Pure Copper Bar Winding TD2418

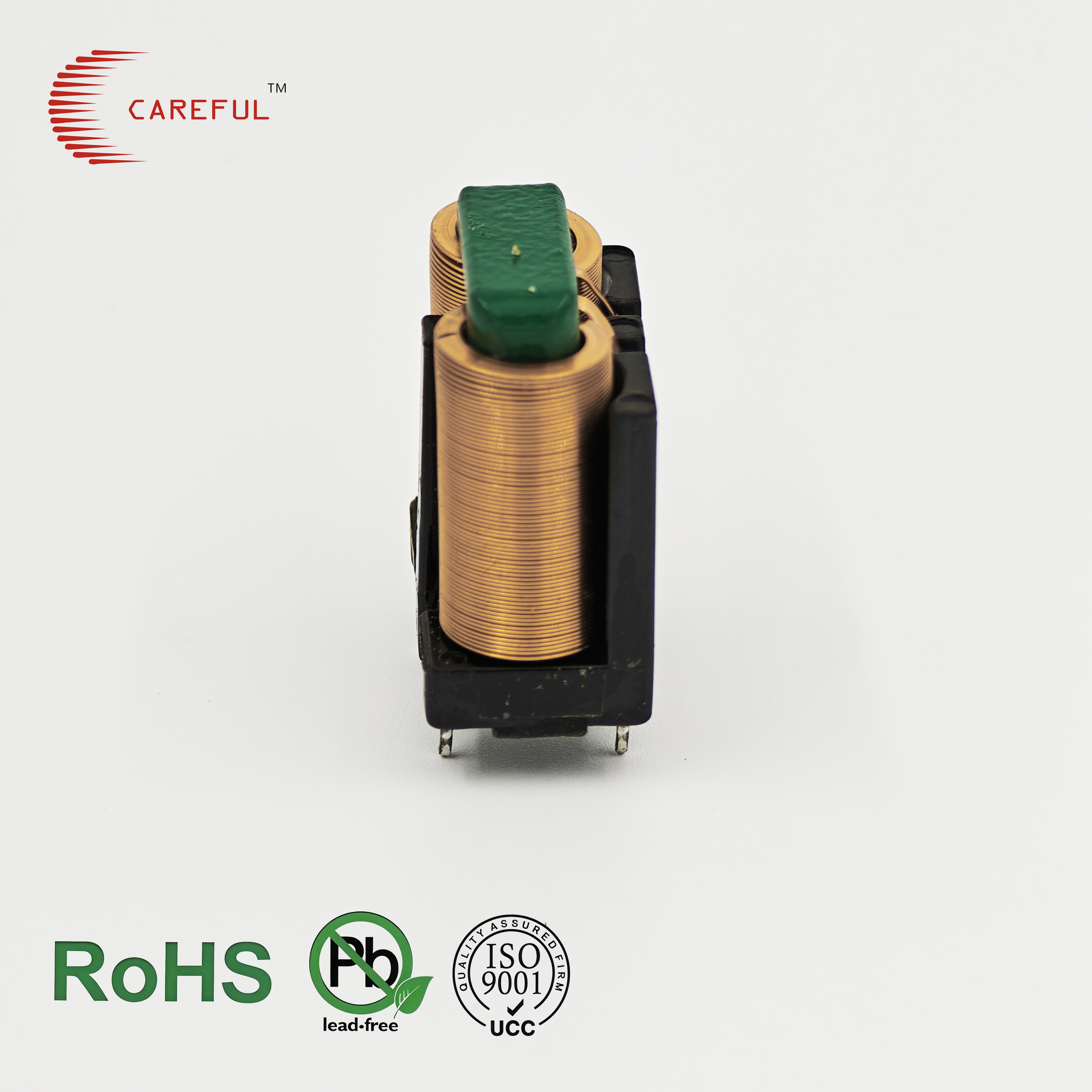

Side View
Careful Tenda Upright Heavy-Industrial Common Mode Filter with Pure Copper Bar Winding TD2418
Top View
Careful Tenda Upright Heavy-Industrial Common Mode Filter with Pure Copper Bar Winding TD2418
Detailed Construction
Careful Tenda Upright Heavy-Industrial Common Mode Filter with Pure Copper Bar Winding TD2418
Pin Configuration
Careful Tenda Upright Heavy-Industrial Common Mode Filter with Pure Copper Bar Winding TD2418
Size Comparison
Careful Tenda Upright Heavy-Industrial Common Mode Filter with Pure Copper Bar Winding TD2418
Application Example
Careful Tenda Upright Heavy-Industrial Common Mode Filter with Pure Copper Bar Winding TD2418
Manufacturing Quality
Careful Tenda Upright Heavy-Industrial Common Mode Filter with Pure Copper Bar Winding TD2418
Packaging
Careful Tenda Upright Heavy-Industrial Common Mode Filter with Pure Copper Bar Winding TD2418
Technical Documentation
