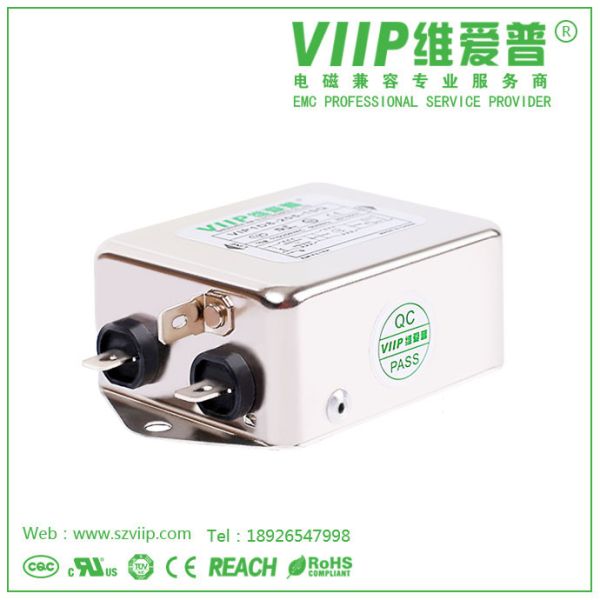

Iron Housing Inverter EMI Filter with 250V AC / 440V AC Rating for 50/60Hz Applications
Iron Housing Inverter EMI Filter with 250V AC / 440V AC Rating for 50/60Hz Applications
Iron Housing Inverter EMI Filter with 250V AC / 440V AC Rating for 50/60Hz Applications
Iron Housing Inverter EMI Filter with 250V AC / 440V AC Rating for 50/60Hz Applications
Specifications
Brand Name :
Weiaipu
Model Number :
VIP3
Package :
Paper Box
Operating Frequency :
50/60HZ
Dimensions :
Varies By Model, E.g., 70mm X 50mm X 30mm
Type :
EMI Filter
Warranty Period :
1 Years
Nominal Center Frequency :
50/60Hz
Housing Material :
Iron
Rated Voltage :
250V AC / 440V AC
Description
Iron Housing Material Inverter EMI Filter
Rated Voltage: 250V AC / 440V AC | Designed for Electromagnetic Interference Suppression
Product Overview
The Inverter EMI Filter is a highly reliable and efficient solution designed specifically for Frequency Drive Inverter applications. Engineered to effectively suppress electromagnetic interference (EMI) generated by inverters, this filter ensures optimal performance and longevity of your electronic systems.
Key features include a robust iron housing for mechanical strength and environmental protection, high voltage tolerance of 2700VDC line-to-line, and wide operating temperature range from -25°C to +85°C, making it suitable for various industrial environments.
Key Features
  • Product Name: Inverter EMI Filter
  • Type: EMI Filter
  • Environmental Temperature: 40°C
  • Leakage Current: < 3.5 mA at 250V AC
  • Nominal Center Frequency: 50/60Hz
  • Package: Paper Box
  • High-performance AC EMI Filter for effective noise suppression
  • Reliable EMI Power Filter suitable for various inverter applications
  • Designed to ensure compliance with electromagnetic compatibility standards
Technical Specifications
Parameter Specification
Environmental Temperature 40°C
Type EMI Filter
Line To Line Voltage 2700VDC
Rated Current 1A To 1000A
Dimensions Varies By Model (e.g., 70mm × 50mm × 30mm)
Dielectric Strength 1500V AC For 1 Minute
Housing Material Iron
Warranty Period 1 Year
Leakage Current < 3.5 mA At 250V AC
Operating Frequency 50/60Hz
Iron Housing Inverter EMI Filter with 250V AC / 440V AC Rating for 50/60Hz Applications
Applications
The Weiaipu VIP3 EMI Filter is designed for exceptional electromagnetic interference suppression in various applications including:
  • Renewable energy systems (solar inverters, wind turbine converters)
  • Motor drives and industrial automation equipment
  • Uninterruptible power supplies (UPS)
  • Consumer electronics and medical devices
  • Telecommunications equipment
  • Manufacturing plants and data centers
Support & Services
Our comprehensive support includes detailed installation guides, troubleshooting assistance, and application advice. Our technical team provides product selection guidance, circuit design recommendations, and customized solutions for specific EMI filtering requirements.
We conduct rigorous quality testing and provide certification documentation to ensure compliance with international standards. After-sales services include warranty coverage, prompt replacement, and repair services to minimize downtime.
