V18011A Snap On Ferrite Choke with Cylindrical Ferrite Core for EMI RFI Noise Filtering and Industrial Signal Protection
V18011A Snap On Ferrite Choke with Cylindrical Ferrite Core for EMI RFI Noise Filtering and Industrial Signal Protection
Specifications
Model Number :
V18011A
Impedance :
155 ohm min at 100MHz
Brand Name :
VIIP
Material :
F9
MOQ :
Negotiable
Delivery Time :
5-8 days
Tolerance :
±1%
Payment Terms :
T/T,Western Union
Certification :
Rohs Reach
Operation Temperature :
-40 to +125°C
Price :
Negotiable
Shape :
Cylindrical
Place of Origin :
china
Inner Diameter :
9mm / 0.35in
Supply Ability :
5k For one week
Description
V18011A Snap On Ferrite Choke Cable Clip
Signal Integrity Snap On Ferrite Choke Core RFI EMI Noise Suppressor Cable Clip with Cylindrical Ferrite Core for EMI RFI Noise Filtering and Industrial Signal Protection
Product Specifications
Place of Origin: Guangdong, China
Brand Name: VIIP
Model Number: V18011A
Type: Soft
Composite: Ferrite Magnet
Shape: Cylindrical
Application: Industrial Magnet
Tolerance: ±1%
Delivery Time: within 7 days
Material: F9
Impedance: 155 ohm min at 100MHz
Condition: EMC, EMI
PB Free Status: RoHS REACH
Color: Black
Operation Temperature: -40 to +125°C
Product Features
  • EMI RFI Noise Filter Clip with ferrite core and plastic cover
  • Helps reduce EMI on AC power lines and improve signal integrity
  • Easy to install - simply clip onto cables for immediate performance
  • Provides clearer signals and faster data transmission
  • Reduces electromagnetic interference effectively

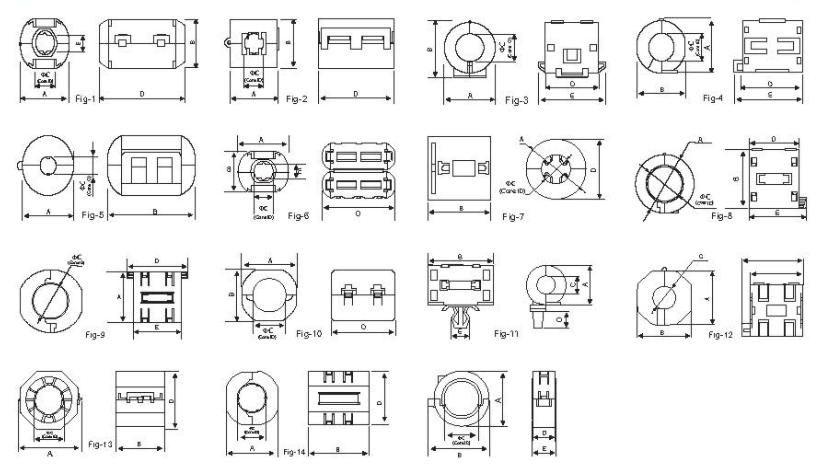

Technical Specifications Table
No Specifications Fig ΦA B ΦC D E Impedance(Ω) 25MHz Impedance(Ω) 100MHz
15 V18011A 4 20.5±1 / 11±1 32±1 36±1 60 135
1V130231119.5±132±19±19±0.57.8±0.5100160
2V18001A113±111.8±13.5±0.825.2±12.5±1120200
3V18001113±112±15±125±12.5±165135
4V18002116.5±114±17±0.830±1/65130
5V18002C520.7±139.4±17.2±0.5//105205
6V18003119.5±118±19±0.835±15.5±170140
7V18004123.5±122.2±113±0.836±110±170135
8V18005221±119.5±16.5±0.832.5±1/120255
9V18006225.5±124±110±0.832.5±1/110220
10V18007232.5±130.5±113±0.832±1/115215
V18011A Snap On Ferrite Choke with Cylindrical Ferrite Core for EMI RFI Noise Filtering and Industrial Signal Protection
Applications
9mm / 0.35in inner diameter: Suitable for 0.27 - 0.35in / 7 - 9mm cables
  • HDMI Cable
  • VGA Cable
  • DVI Cable
  • Power Line
  • Loudspeaker Cable
  • Industrial Cable
V18011A Snap On Ferrite Choke with Cylindrical Ferrite Core for EMI RFI Noise Filtering and Industrial Signal Protection V18011A Snap On Ferrite Choke with Cylindrical Ferrite Core for EMI RFI Noise Filtering and Industrial Signal Protection V18011A Snap On Ferrite Choke with Cylindrical Ferrite Core for EMI RFI Noise Filtering and Industrial Signal Protection
Company Advantages
Customized Solutions

Professional R&D team dedicated to providing cost-effective solutions without unnecessary expenses.

Quality Assurance

National high-tech listed enterprise with reliable quality and relevant product certifications.

Technical Support

Cooperation with top scientific research laboratories providing free EMC rectification technical support, samples, and conduction tests.

Scale Production

Advanced automation technology, large-scale production capabilities, competitive pricing, and excellent service.
