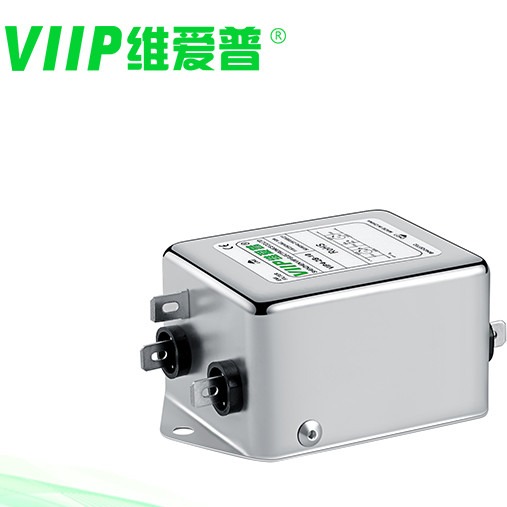

110V / 250V Low Frequency AC EMI Filter Terminal Block For Power Electronics
110V / 250V Low Frequency AC EMI Filter Terminal Block For Power Electronics
110V / 250V Low Frequency AC EMI Filter Terminal Block For Power Electronics
110V / 250V Low Frequency AC EMI Filter Terminal Block For Power Electronics
Specifications
Brand Name :
VIIP
Model Number :
VIP4-2B-20
Certification :
CE ROHS,CE CQC
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pcs within 10-15 days
Packaging Details :
33*33*18
Type :
AC single filter
Rated voltage :
110/250VAC
Transfer function :
Low Pass
Application :
Electronic Equipments
Package type :
Surface Mount
Description

110V/250V Low Frequency AC Filter,Terminal Block,For Power Electronics

Quick Detail:

Item number VIP4-2B-20
Package Type Surface Mount
Nominal Center Frequency 10KHZ-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 20A
Environmental Temperature 40°C
Temperature 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2200VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 5pcs
PORT Shenzhen
Lead Time 5~15 working days

Features:

This is a low frequency AC filter designed for 110V/250V power electronics equipment. It features terminal block for convenient wiring connection.Features:
•110Vac/250Vac,50/60Hz input
•3A maximum rated current
•EMI noise attenuation up to 35dB from 30KHz to 10MHz
•Compact plastic case, flame retardant and RoHS compliant
•Terminal block for quick installation and wiring
•CE markedApplications:
•AC/DC power supplies
•Frequency inverters
•Electric control products
•Prevent low frequency noises generated from power electronics
•Improve the performance of sensitive circuits by filtering power source
•Meet EMC compliance standards for reliable operationThis AC power line filter suits various low voltage power electronics equipment to suppress power line EMI noises in the low frequency spectrum. It has a rated current up to 3A at 250Vac and provides high attenuation for frequencies ranging from 30KHz to 10MHz. The convenient terminal block allows easy and reliable wiring connection.

Specifications:

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]		 Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-1A-01 1A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-03 3A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-06 6A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-10 10A <0.5mA Fig 2 Fig 1 - - - 0 - - - 75
VIP4-1B-06 6A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 140
VIP4-1B-10 10A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-20 20A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-30 30A <1.0mA Fig 5 Fig 2 M6 - - - - - - 320
VIP4-1B-50 50A <2.0mA Fig 5 Fig 2 M6 - - - - - - 600
VIP4-1B-100 100A <2.0mA Fig 5 Fig 2 M8 - - - - - - 1380
VIP4-1B-150 150A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900
VIP4-1B-200 200A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900

FAQ:

Q1: Do you offer customized product ?
A: Yes, we can develop a new mold at you need if you can provide us with the samples or drawings and specification.


Q2: Are you a factory?
A: Yes, we are an ISO9001 manufacturer, an integration of EMI filter R&D, production and sales since 2009.


Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.


Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can negotiate about the payment term,like 70% deposit in advance 30% pay before delivery, etc.
Q5: How about the certificates?
A:ISO9001,CE, TUV, UL, ROHS, CQC, REACH etc.


Q6: How about the sample?
A: Free samples. You need to pay for Currier cost. Please contact us for details.

Q7: What are services available after-sale?

A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.
