Specifications
Brand Name :
Sihovision
Model Number :
R-I75BPH
Certification :
CE, FCC, RoHS
Place of Origin :
CN
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, MoneyGram
CPU :
Intel Cherrytrail Z8350
RAM :
4GB
Storage :
64G
Operation System :
Windows 10
Camera :
front 2.0MP, rear 5.0MP Auto focus with flash
Screen :
7"
Resolution :
800*1280 IPS
Brightness :
1000 cd/m2
Touchscreen :
Capacitive(10 points)
Baterry :
3.7V/7500mAh
IP grade :
IP65 waterproof
Description

Specification

Model:R-I75BPH
PC
CPU Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz
GPU Intel® HD Graphics
RAM 4GB
SSD 64GB EMMC
Indicator light Charging indicator light,which is red flash when low power,keeping on red light when power more than 20% , ,keeping on green light when full charged .
L/P-Sensor Light/Proximity sensors
G_sensor Gravity acceleration sensor
WIFI WIFI 802.11(ac/a/b/g/n) dual frequency 2.4G+5.8G WIFI
Bluetooth BT4.2 (BLE) class 1, Transmission distance: 10m
3G Optional: H350 GSM/GPRS/EDGE Band(MHz):900/1800;WCDMA Band(MHz):900/2100
4G EC25-E : LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8
GPS U-BLOX M8Q GNSS.Support GPS/Beidou/glonass
NFC Optional: NXP NFC 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm
Camera front 2.0MP, rear 5.0MP Auto focus with flash
Speaker 8Ω/0.8W waterproof BOX speaker*1
Mic Sensitivity:-42db, output impedance 2.2kΩ
Operation System windows 10 Home/ Pro/ IOT 64bit
LCD panel
Panel size 7"
Resolution 800*1280 IPS
Aspect ratio 16:10
Brightness (cd/m²) 1000 cd/m2
Touch panel
Touchscreen Type 5 points capacity TP,G+G, support touch with wearing gloves and wet finger
Surface Hardness 7H
Interface
USB 1*MicroUSB, 1*Android OTG

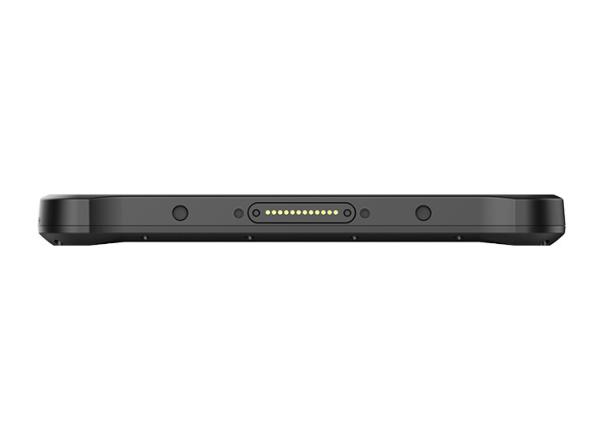

Pogo Pin 1*12pin Pogo Pin
Audio Output 1*3.5mm
HDMI HDMI 1.4a Type C*1
TF Slot 1*TF Slot, max: 128G
SIM 1*SIM
Power 1*DC 5V 3A, Optional: Overvoltage protection of circuit,Max DC24V
OTG Cable USB OTG to MICRO USB cable length: 45mm
USB Cable USB to micro 5P L=1.2M 4core aluminum foil shield cable
Power Supply
Power Adaptor AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A
Battery Removable Li-polymer battery
Capacity: 3.7V/7500mAh
nearly 6hours(50% volume sounds, 50% brightness, 1080P HD video display by default)
Operating Environment
IP grade IP65 waterproof
Drop Height 1.22cm composite wood floors, in operation status
Operate Temperature -20 °C to 60 °C
Store Temperature -30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing
Packing Details
Net weight 707g
Gross weight 1294g
Product Dimension 216.98*133.96*21.4mm
Packing size 325*162*61mm
Other
Warranty 1 year warranty
Certificate CE, FCC, RoHS
Color Black
Module extension (Optional)
One-dimension barcode N 4313, Optical resolution: 5mil, Scan speed: 50 times/s, Code system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11
Two-dimension barcode Honeywell N3680 hardcode/ Optical resolution:5mil/ scan speed:50 times /s, Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Fingerprint The fingerprint module authenticated by Chinese Ministry of public security, support the collection of resident fingerprint which built in their ID card.
UHF M-550 UHF RFID slim all-in-one module.
ID Module support reading the 2nd,the 3rd ID card information and the fingerprint information built-in.
Optional Accessories
Accessories Docking Charger, Hand-strap, Vehicle Mount, 5V3A Car Charge
