10MM Capacitive Touch Screen Monitor , 12 Inch Sunlight Readable Display 1000 Nits
10MM Capacitive Touch Screen Monitor , 12 Inch Sunlight Readable Display 1000 Nits
10MM Capacitive Touch Screen Monitor , 12 Inch Sunlight Readable Display 1000 Nits
10MM Capacitive Touch Screen Monitor , 12 Inch Sunlight Readable Display 1000 Nits
10MM Capacitive Touch Screen Monitor , 12 Inch Sunlight Readable Display 1000 Nits
10MM Capacitive Touch Screen Monitor , 12 Inch Sunlight Readable Display 1000 Nits
10MM Capacitive Touch Screen Monitor , 12 Inch Sunlight Readable Display 1000 Nits
10MM Capacitive Touch Screen Monitor , 12 Inch Sunlight Readable Display 1000 Nits
Specifications
Brand Name :
SHINHO
Model Number :
SL12
Certification :
CE, FCC, RoHS
Place of Origin :
China(Mainland)
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Product name :
12 inch 1000nits Brightness monitor
Color :
Black
Material :
Aluminium Alloy
Brightness Control :
Light sensor for auto dimming
Brightness (cd/m²) :
1000nits Sunlight Readable
IP Grade :
Front IP65 Waterproof
OEM/ODM :
Support
Warranty :
12months
Description

12 Inch Wide Temperature 1000nits Brightness 10MM Capacitive Touch Screen Monitor

Feature

1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof.
2. Industrial wide temperature LCD panel, wide viewing angle, high brightness 1000 nits, sunlight readable.
3. With Light sensor for auto dimming.anti-interference and Anti-vibration
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
5. High performance mainboard, 7x24 continuous operation.
6.12-24V wide voltage support.
7. Built in Fans for cooling.
8. Support wall mounting,embedded mounting,desk stand mouting etc.

Specification

Model:SL12
LCD panel
Panel size 12"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits sunlight readable

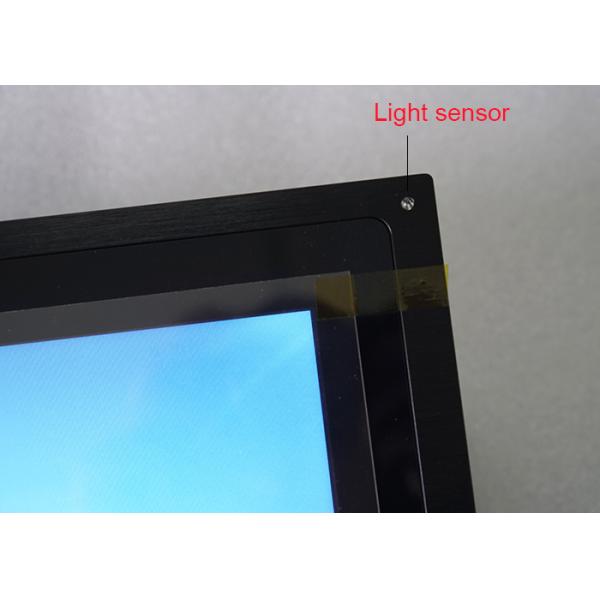

Brightness control Light sensor for auto dimming
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)

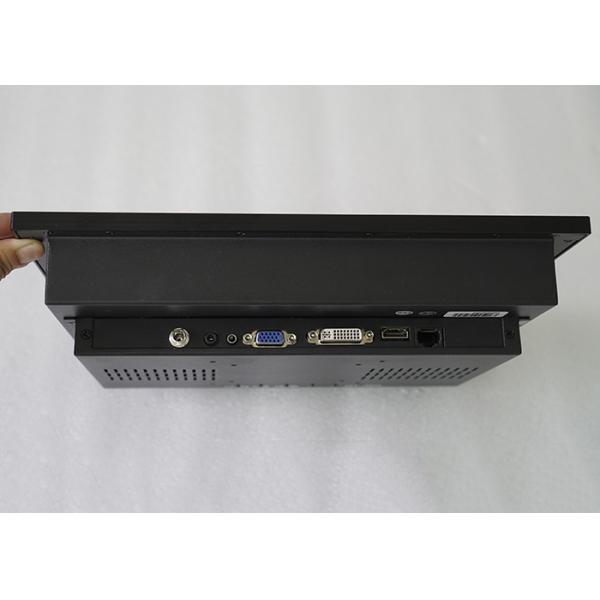

Signal Ports
VGA 1x VGA
DVI 1x DVI
HDMI 1x HDMI
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material Aluminum Alloy
Color Black, Silver
VESA mounting 75x75mm/100x100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 65°C, storage: -20 to 80°C
Relative humidity operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight 3.4 kg
Gross weight 5 kg
Product Dimension 31.9*25.7*7.09cm
Packing size 43*38*18cm
Accessories Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card
Other
Mounting embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS

Pictures

10MM Capacitive Touch Screen Monitor , 12 Inch Sunlight Readable Display 1000 Nits

10MM Capacitive Touch Screen Monitor , 12 Inch Sunlight Readable Display 1000 Nits

10MM Capacitive Touch Screen Monitor , 12 Inch Sunlight Readable Display 1000 Nits

10MM Capacitive Touch Screen Monitor , 12 Inch Sunlight Readable Display 1000 Nits

Application

Ticket machine

Out fare turnstile gates

On vessel

School

Game Cabinet

Stereo garage

Security monitoring

Self serve kiosk

Automatic pay station machine
