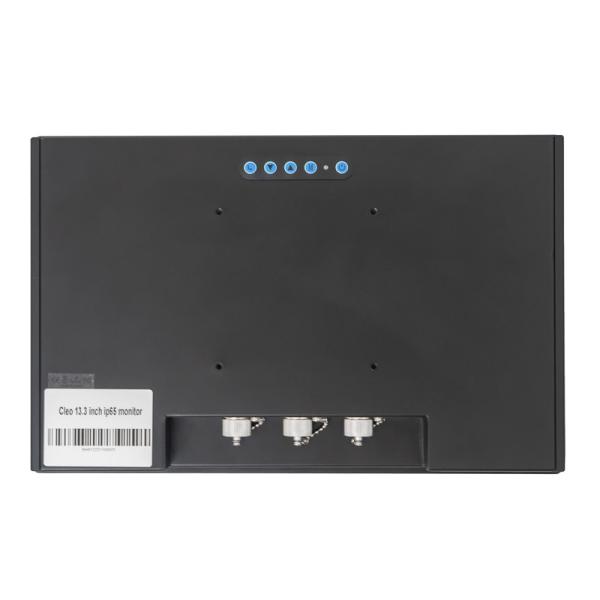

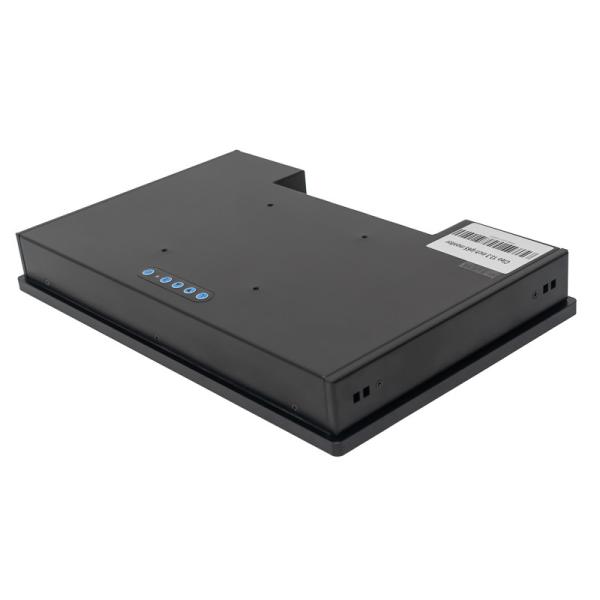

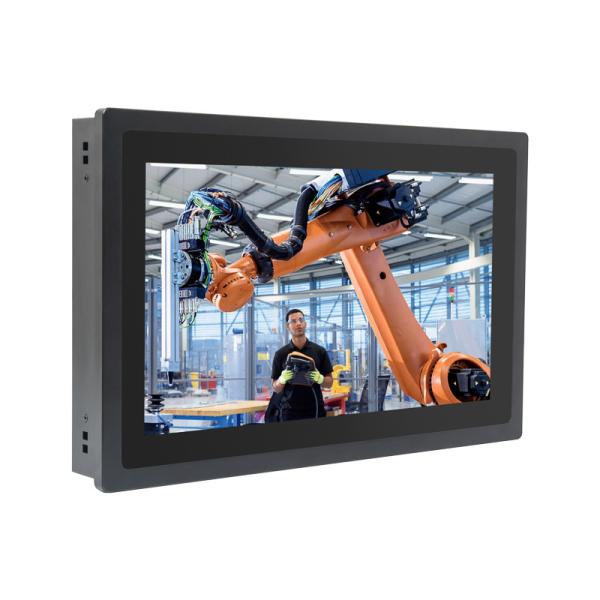

Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor
Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor
Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor
Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor
Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor
Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor
Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor
Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor
Specifications
Brand Name :
Sihovision
Model Number :
SL12W
Certification :
CE, FCC, RoHS
Place of Origin :
Shenzhen,China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal, MoneyGram
Product Name :
Full IP67 waterproof monitor
Type :
Open Frame High Brightness Screen 1000 Nits Lcd Monitor Display
Brightness (cd/m²) :
1000nits, sunlight readable
Resolution :
1280*800 (16:10)
Widescreen :
Yes
Viewing angle :
85°/85°/85°/85°(Typ.)(CR≥10)
Touchscreen Type :
5 wire resistive touch
IP Grade :
Fully IP67 waterproof
Panel type :
TFT
Temperature Range :
operating: -20 to 70°C, storage: -30 to 80°C.
Application :
embedded/desktop/wall mount
Warranty :
1 Year
Description

Raspberry pi Suport High Brightness 1000 Nits Full IP67 waterproof monitor For Outdoor Application

Features

  • Material: aluminium alloy front bezel + High strength cold rolled steel back case

  • 12 inch industrial LCD panel, Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.

  • High brightness, 1000 nits sunlight readable

  • Adopt 5 wire resistive touch, stable, durable, anti-interference.

  • IP Grade: Full IP67 waterproof.

  • Interface: HDMI+ USB for touch, Sealed I/O with waterproof cable set included.

  • High performance mainboard, 7x24 continuous operation

  • Support raspberry pi

Specifications

Model:SL12W

LCD panel

Panel size

12"

Resolution

1280*800

Aspect ratio

16:10

Support Color

16.7M colors

Brightness (cd/m²)

1000 nits, sunlight readable

Contrast ratio

700:1

View angle

80°/80°/80°/60° (R/L/U/D)

Touch panel

Touchscreen Type

5 wire resistive touch

Touch Interface

USB (RS232 optional)

Touch response time

<8ms

Luminousness

75-85%

Surface Hardness

3H

Working Life

>35 million times

Touch options

( PCAP touch optional)

Singal Ports

HDMI

1xHDMI

VGA

optional

DVI

optional

Audio in/out

optional

OSD

OSD control

Brightness, contrast ratio, auto adjustment, H/V position, language select etc.

Support languages

English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.

Support OS

Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.

Power Supply

External Power Supply

AC 100-240V

Working voltage

DC 12V

Power consumption

≤35W

Enclosure

Material

aluminium alloy front bezel + High strength cold rolled steel back case

Color

Black, white, Silver, color can be customized

VESA mounting

100x100 mm

IP-grade

Full IP67 waterproof

Operating Environment

Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative humidity

operating: 10% to 90%, storage: 5% to 90%

Packing Details

Net weight

3kg

Gross weight

4.2kg

Product Dimension

32.3x22.5x5.45cm

Packing size

47x38x20 cm

Accessories

Power adapter, waterproof HDMI cable, USB cable

Other

Mounting (options)

1) wall brackets for wall-mounting, VESA 100×100 mm

2) stable metal holder to support the monitor

Warranty

1 year warranty

Drawing

Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor

Applications

  • outdoor terminal

  • livestock equipment

  • control cabinet

  • food plant project

  • manufacturing processes

  • Marine navigation system
