Specifications
Brand Name :
MESTECHS
Model Number :
IV02 V5.0
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200sets/week
Delivery Time :
35 work days
Packaging Details :
Common package
bandwidth :
100M
DSL standards :
ADSL ADSL2 ADSL2+ VDSL VDSL2
vdsl2 profiles :
30a 35b g.fast vdsl2
distance :
6.5KM
Material :
Copper twisted pair
power input :
DC 5v
service :
custmoziable
customer :
telecom
Description

IV02:vdsl2 module,high speed modem,industry module,G.INP vdsl2,G.Vector vdsl2

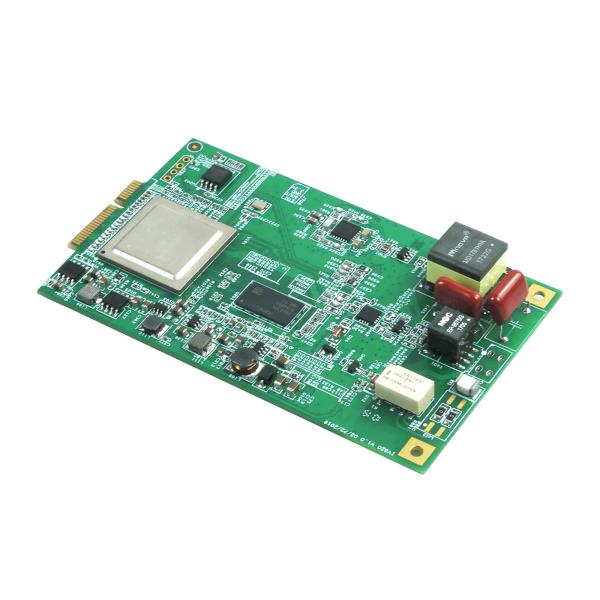

IV02 V5.0 using the latest 28-nanometer Broadcom main chip, is a compatible ADSL / ADSL2 +/ VDSL / VDSL2 embedded Module. This module can either operate with analoge (Annex A) or with ISDN(Annex B) based data links. Smaller size, lower power consumption and more suitable for embedded applications industry.

  • VDSL/ADSL Ethernet-Module
  • Annex A/B/M/J
  • IPv4 and IPv6
  • 2 LAN-Port 10/100 Mbps
  • 1RS232 Interface(CLI Interface, TTL level)
  • Low power consumption
  • Equipped with multiple I / O interface
  • Temperature Range:-40℃ to 70℃


6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material

Applications

  • Remote access via remote desktop
  • Video monitoring
  • Network connection
  • Transfer of high data volume(operating data, archives)

6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material

Item IV02 IV820
VDSL2 profile 8a, 8b, 8c, 8d, 12a, 12b Yes Yes
17a Yes Yes
30a No Yes
35B No Yes
G.Fast(106MHz) No Yes
Annex B/J Yes Yes
G.Vector Yes Yes
G.INP Yes Yes
G.Bonding No No
LAN 100M Ethernet Gigabit Ethernet
Power consumer 2.5w 4.5W

DSL Features

DSL standards

VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a ADSL over POTS with Annex A and Annex B
ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5(ADSL2+)
ADSL over POTS with Annex M (extended upstream bandwidth) G.992.3 (ADSL2) and G.992.5 (ADSL2+)

Line Speed

ADSL2+:Max24Mbps(downstream)max1Mbps(upstream) VDSL2: Max100Mbps(downstream,upstream)

DSL line length

Max 5.5km

IP and Network Features


Operating Modes Bridge/PPPoE/PPPoA/DHCP/IPoA/IPoE

Ports and Connectors

DSL

1 RJ11(Tip, Ring),
1 RJ45

Serial Ports

RS232 interface (CLI Interface, TTL level);

LAN

1 RJ45R Ethernet,10/100Mbps,MDI/MDI-X, Autonegotitation

Power Supply

DC 5V input, max 1.5W


Mechanical Data

Size

72x60x14 mm

Weight

120g

Environmental Conditions

-20 to 60 ℃(Operation)
5 to 95%(not condensing)

Certifications


Conformities CE

Configuration and Management

Configuration

Web-based(HTTP) CLI(Command Line Interface)
Telnet

Indicators

3LEDS


Mechanical Structure

6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material

Order Information

Product Description Order Code

Industinal VDSL2/ADSL2 Module IV02-A(ANNEXA) IV02-B(ANNEXB)
