Specifications
Brand Name :
MESTECHS
Model Number :
TDSL1006
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
45 work days
Price :
Negotiable
Packaging Details :
Common package
Supply Ability :
200sets/week
Size :
127*76mm
standard :
ITU 992.1,iTU992.2
DSL mode :
ADSL,ADSL2,ADSL2+,annex L
Transmission media :
twisted pair,Copper,coaxial
application :
video monitor
industry :
oil deposit,Chemical industry
Description

TDSL1006:high upstream DSL,long distance adsl,point to point adsl,Video Surveillance transmission technology

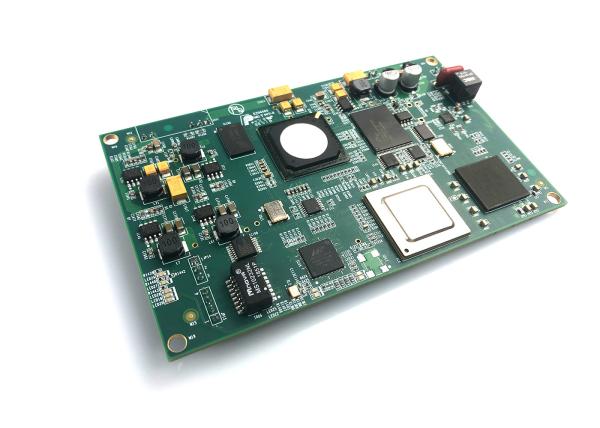

TDSL1006 is point to point adsl module,it compatible with existing ADSL, ADSL2,ADSL2+ technology ,The unit work in remote with IPCAM to provide high upstream bandwidth in the distance loop ;The solution will solve the ADSL technology low upstream bandwidth drawback,It is very suitable for remote video monitor and large data uplink application base on twisted-pair,coax and copper cable.

  • Max 6.5km in ADSL Annex L mode
  • 100Mbps in vdsl2 mode
  • 100M/1000M ethernet
  • web/http
  • tone disble/enable by CLI
  • custom hw/sw
High Upstream DSL Mini DSLAM , Long Distance Point To Point ADSL DSLAM

Upstream rate compare with VDSL2&SHDSL

Loop length(km) VDSL2 SHDSL TDSL1006
1 100M 2.3M 24M
2 1.5M 2.3M 15M
3 - 2.3M 12M
4 - 1M 6M
5 - 512K 3M
6 - - 1M(Annex L)

Typical Application

DSL Features
Standards

G.992.1,G.992.2,G.992.3,G.992.4,G.992.5

Available version:Annex B/L

Line speed 24M upstream and 1M downstream
DSL line length 6.5KM in annex L mode. 5.5km in annex A.
Network Features
DSL 1X2 pin header(2.54mm)
LAN 1X4 Pin header(2.54mm),10/100Mbps,MDI/MDI-X
Serial Ports 1X3 Pin header(2.54mm),CLI Interface, TTL level
Power Supply 1x2 pin header(2.54mm),DC/12V input
Mechanical Data
Size 127*76MM
Weight 72g
Environmental Conditions

-40 to 70 ℃(Operation)

5 to 95%(not condensing)

Configuration and Management
Configuration Web-based(HTTP) ,CLI(Command Line Interface) ,Telnet
Indicators

Dimension:(mm)

High Upstream DSL Mini DSLAM , Long Distance Point To Point ADSL DSLAM

Pin Assignment

Pin Pin number Pin name Description
JP8 1 GND GND GND
2 12V Power input DC/12V
JP13 1 LINE1_P DSL1 signal
2 LINE1_N DSL1 signal
JP14 1 TX_232 RS232 TXD TTL level
2 Rx_232 RS232 RXD TTL Level
3 GND GND GND

JP15

1 ETH_Tx+ Tranceive Data+
2 ETH_Tx- Tranceive Data-
3 ETH_Rx+ Receive Data+
4 ETH_Rx- Receive Data-

Order Information

Product Description Order Code

Single port ADSL CO module TDSL1006
