IPPC-1002T 10.4 Industrial All In One PC Touch Screen I3 I5 I7 U Series CPU Motherboard
IPPC-1002T 10.4 Industrial All In One PC Touch Screen I3 I5 I7 U Series CPU Motherboard
IPPC-1002T 10.4 Industrial All In One PC Touch Screen I3 I5 I7 U Series CPU Motherboard
IPPC-1002T 10.4 Industrial All In One PC Touch Screen I3 I5 I7 U Series CPU Motherboard
IPPC-1002T 10.4 Industrial All In One PC Touch Screen I3 I5 I7 U Series CPU Motherboard
IPPC-1002T 10.4 Industrial All In One PC Touch Screen I3 I5 I7 U Series CPU Motherboard
Specifications
Brand Name :
Yanyue
Model Number :
IPPC-1002T
Certification :
CE, FCC
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
motherboard 100000 pieces / month ; IPC 5000 sets / month
Delivery Time :
According to Quantity
Packaging Details :
Wooden Box
Name :
Industrial Touch Panel PC
Adapt motherboard :
Low power ITX motherboard
Touch screen :
5-wire resistance screen
CPU/GPU :
Intel i5 3317U
Memory :
4G DDR3
Hard disk :
128G MSATA
Description
IPPC-1002T 10.4" Touch Industrial Panel PC with I3/I5/I7 U Series CPU Motherboard for Selection

Features :

■ Ultra-low power consumption, multiple board paste I3/I5/I7 U series CPU motherboard for choice

■ Aluminum alloy wire drawing panel

■ Waterproof grade IP65 for panel

■ Standardized dual-network 2-string 2USB

■ Supporting simultaneous installation of mSATA solid state hard disk and 2.5 inch mechanical/solid state hard disk

■ Various installation options

■ Resistance Touch Screen, OEM Capacitance Screen

Specification parameters Optional configuration
Front panel Aluminum alloy panel, the nature of wire drawing oxidation Optional black or other colors, optional sandblasting treatment
Back chassis 1.2mm steel plate, silver, sandblasted fin Optional industrial black or other colours
Adapt motherboard Low power ITX motherboard All low power ITX motherboards of Yanyue are available
LCD screen 10.4” TFT,LED backlight； Resolution 1024*768； Lattice:0.297*0.297； Maximum color:16.7M； Brightness:300cd/㎡； Contrast:800:1； Response speed:16ms； MTBF:50,000h Visual angle:(+80° ~ -80°) (+80° ~ -80°)；
Touch screen 5-wire resistance screen Customizable Capacitance Screen
CPU/GPU Intel i5 3317U J1900/3, 4th, 6th and 7th Generation U Series CPUs for Selection
Memory 4G DDR3 Optional 2G/8G/16G DDR3 notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; 2.5 "500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk
Interface Aerial plug (DC12V); 2USB; 2RJ45 (Gigabit); VGA; HDMI, audio output; MIC input; 2COM 8 USB or 6COM or 1LPT can be customized; Phoenix terminal can be customized for interpolation location, and wide-voltage input can be customized.
Size 291mm(length)* 230mm(width)* 65mm(thickness) Weight 4/5KG
Industrial Power Supply 12V@5A adapter, Taiwan Qiaowei Brand Optional non-configuration
Installation mode Embedded screw installation; Embedded hook installation; VISA wall mounting installation
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
IP Level Panel IP65 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

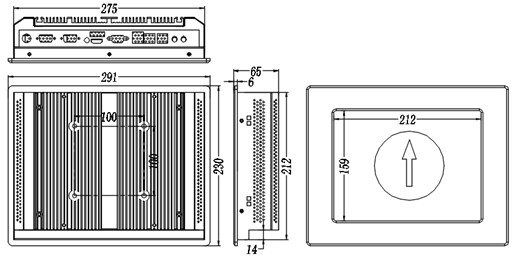

Installation Dimension Diagram 　IPPC-1002T 10.4

IPPC-1002T 10.4IPPC-1002T 10.4
