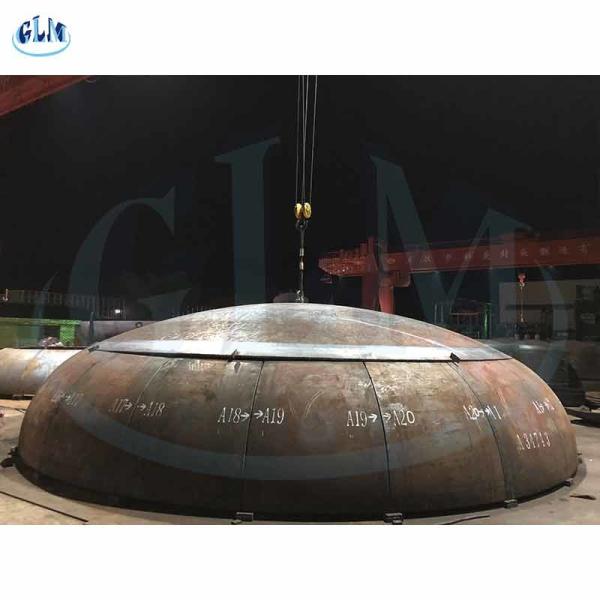

Diameter 4800mm 304l Elliptical Dish Head 2:1 Thickness 20mm
Diameter 4800mm 304l Elliptical Dish Head 2:1 Thickness 20mm
Specifications
Brand Name :
GLM
Model Number :
CAP
Certification :
ASME, PED and GB
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
wooden box and iron shelf or as percustomers requirement
Material :
SA5-240 304l
Head Code :
Elliptical Dish Head
Surface Treatment :
Weld Edge Preparation
Mfg Process :
Cold Press
Application :
Offshore , Cryogenic Industry
keywords :
stainless steel ellipsoidal heads
Diameter :
4800mm
thickness :
20mm
Description

Diameter 4800mm 304l Elliptical Dish Head 2:1 Thickness 20mm

Description of elliptical dish head 2:1

Ellipsoidal Head
This head has an elliptical shape and the most popular ratio is 2:1 (which means that the width of the ellipse is double the depth). When it comes to handling pressure stresses, elliptical head is less efficient than a hemispherical head, so ASME specifications require increased thickness.

Specifications of dish head:

Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.
Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available

Item Process of dish head

1. picking steel 2. cutting 3. welding 4. heating
5. stamping 6. spinning 7. trimming 8. defect dection
9. QC 10. warehousing 11. transportation

Products of elliptical head

Diameter 4800mm 304l Elliptical Dish Head 2:1 Thickness 20mm

Diameter 4800mm 304l Elliptical Dish Head 2:1 Thickness 20mm

Diameter 4800mm 304l Elliptical Dish Head 2:1 Thickness 20mm

Our Company

Our main products are Dish Head,Hemispherical head,Spherical head,Elliptical head,Conical head,Flat head,etc,available with different kinds of material and OEM service.The certificate we obtained are ISO9001,ISO14001,OHSAS18001 and ASME.

With 40000 square meter workshops,200employees,20years accumulated experience,advanced technologies and equipments,we always support our customers with best quality&best service and fast delivery.We warmly welcome to your visiting of our factory.

Diameter 4800mm 304l Elliptical Dish Head 2:1 Thickness 20mm

Diameter 4800mm 304l Elliptical Dish Head 2:1 Thickness 20mm

Diameter 4800mm 304l Elliptical Dish Head 2:1 Thickness 20mm
