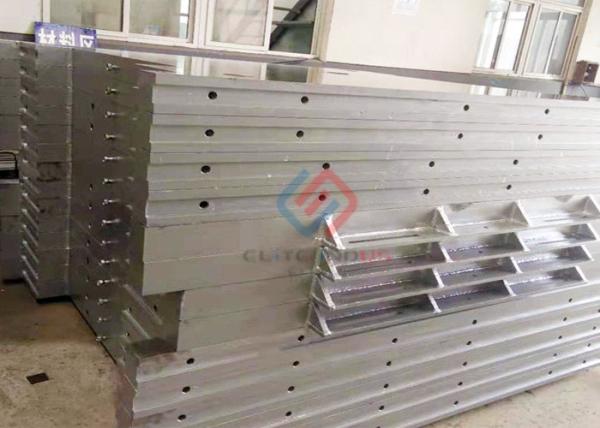

carbon steel aluminium stainless steel heating platens

for Hydraulic thermal laminator

Introduction :

ELITE Heating platens deliver high levels of thermal stability to many kinds of applications that involve heated or cooled plates.

This kind of perforated plates can be designed for electric, thermal oil, water, or steam heating/cooling.

These technologically advanced plates uniformly apply heating/cooling energy provided to the platen.

In some cases temperature uniformity can reach up to +/-1.5 ℃.

Introduction of heating Platens

ELITE Heating platens application advisor.

In manufacturing, a platen is a metal plate used in presses.

The press can be for laminating or for the production of a wide range of items including gaskets, particle board,

semiconductor wafers, and plywood, fabric laminator etc...

Many of these processes require heating the plate to high temperatures.

These heaters deliver high watt densities and are designed to fit in tight spaces.

Heating is a complex process governed by the principles of thermodynamics, fluid mechanics, and heat transfer.

Heat transfer, in particular, is useful knowledge as it will help inform important aspects of heater selection and system design.

Heat transfer is the movement of heat from one area (or object) to another, always from areas of high concentration (hot) to areas of low concentration (cool).

Approximate heating platens dimensions:

ELITE Heating platens Types (A, B, C, D, D Edge Pin, E, M)

Type A - Electric Strip Plate

Type B - Electric Cartridge Plate

Type C - Steam, Water, or Thermal Fluid Platen

Type D - Steam, Water, or Thermal Fluid Platen

Type E - Steam, Water, or Thermal Fluid Platen

Advantages of heating platens :

Excellent thermal uniformity on the surface

Less scrap parts and more heating/cooling control

A more responsive platen

Quicker heat up times

Rapid thermal recovery for quick cycle applications

Package of heating platens :

Anti rust oil to be applied on material and each rod to be packed in paper sleeve.

After the final inspection, the plates are protected from corrosion.

The plates are packed depending on the transport type.

Packaging provides safe manipulation and guarantees damage-free delivery.
