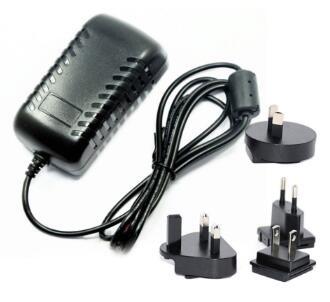

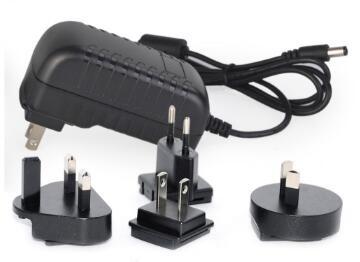

UL Ac Adaptor 12V Transformer Supply Electronic Ac-dc Driver SAA 12v 1.5a 24v 0.75a Interchangeable Plug Power
UL Ac Adaptor 12V Transformer Supply Electronic Ac-dc Driver SAA 12v 1.5a 24v 0.75a Interchangeable Plug Power
UL Ac Adaptor 12V Transformer Supply Electronic Ac-dc Driver SAA 12v 1.5a 24v 0.75a Interchangeable Plug Power
UL Ac Adaptor 12V Transformer Supply Electronic Ac-dc Driver SAA 12v 1.5a 24v 0.75a Interchangeable Plug Power
UL Ac Adaptor 12V Transformer Supply Electronic Ac-dc Driver SAA 12v 1.5a 24v 0.75a Interchangeable Plug Power
UL Ac Adaptor 12V Transformer Supply Electronic Ac-dc Driver SAA 12v 1.5a 24v 0.75a Interchangeable Plug Power
Specifications
Brand Name :
YHY
Model Number :
YHY-12001500
Certification :
UL, TUV, GS, PSE, RCM, SAA, C-tick, KC, GS, BLS, CE, FCC, CCC, NOM
Place of Origin :
China, Shenzhen
MOQ :
NO
Price :
USD2.88-5.5 per piece
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
1000000pcs per week
Delivery Time :
10-15 work days
Packaging Details :
Carton+White box Carton Size:54*23.5*34.5cm 80PCS/CTN
Output Type :
Single
Connection :
plug in
Output current :
1.5A-1.7A
Input Voltage :
100-240VAC
Output Frequency :
50/60Hz
DC Jack :
5.5*2.1/5.5*2.5 etc
DC cable length :
1.2m/1.5m or customized
Power :
18-20W
Warranty :
3years
Description

UL Ac Adaptor 12V Transformer Supply Electronic Ac-dc Driver SAA 12v 1.5a 24v 0.75a Interchangeable Plug Power

Output Output Max. Power Max. DOE VI
(V) (A) (W)
12V 1.5A 18W √
24V 0.75A 18W √

UL Ac Adaptor 12V Transformer Supply Electronic Ac-dc Driver SAA 12v 1.5a 24v 0.75a Interchangeable Plug Power

Input Voltage Range 100-240Vac 50/60Hz
Input Current(Max) 2.5A
Temperature Coefficient ±0.05%/℃
Voltage Accuracy ±2%
Total Regulation ±5%
Ripple & Noise 120mV
Short Circuit Protection Continuous - hiccup mode
Over Voltage Protection 110-150% of nominal (Cycle input power to reset)
Efficiency at Average Load 88% min
Operation Temperature 0 to ＋60℃, derating linearly to 50% load above 40℃
Storage Temperature -10 to ＋85℃
Humidity (non condensing) 10-90% RH
Cooling Convection
Withstand Voltage Input to Ground 1.5kVAC
Input to Output 3kVAC
(Output is connected to Ground)
Vibration (non condensing) 23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
Shock < 196.1 m/s2 (20G)
Safety Agency Certifications UL62368,UL1310,UL60950-1, EN609501-1, IEC60950-1, CE Mark
DOE Regulation VI
Off-Load Power Consumption <210mV
Conducted & Radiated EMI EN55023-B, FCC Class B
Immunity EN55024

UL Ac Adaptor 12V Transformer Supply Electronic Ac-dc Driver SAA 12v 1.5a 24v 0.75a Interchangeable Plug Power

Power Output Output AC Type
Voltage Current
18W Series 0-6.0V 0-3.0A Desktop
7-12.0V 0-1.5A Wall-mounted
13-18.0V 0-1.0A Interchangeable
19-25.0V 0-0.75A
26-30.0V 0-0.6A
Remark:
1.Model NO : YHY-XXXYYYYY , "XXX" is for current
"YYYYY" is for voltage
2.Input :100-240Vac , 50-60Hz , 2.5A max.
