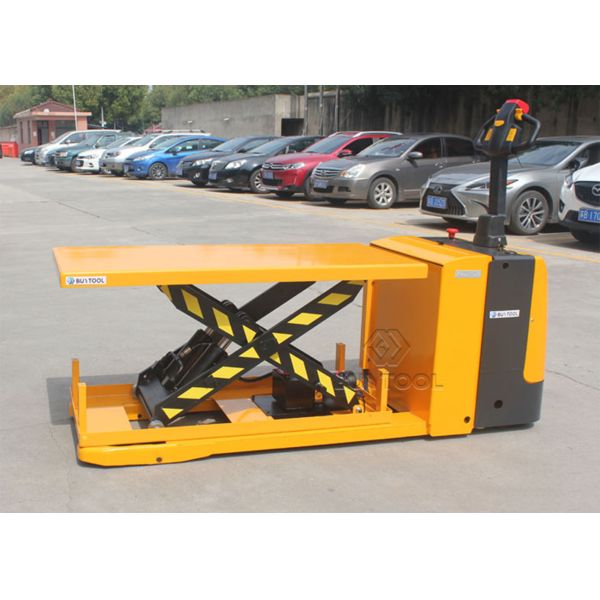

1 Ton Battery Operated High Lift Pallet Truck 2000kg 2500kg 1000mm With Platform Lift
1 Ton Battery Operated High Lift Pallet Truck 2000kg 2500kg 1000mm With Platform Lift
1 Ton Battery Operated High Lift Pallet Truck 2000kg 2500kg 1000mm With Platform Lift
1 Ton Battery Operated High Lift Pallet Truck 2000kg 2500kg 1000mm With Platform Lift
1 Ton Battery Operated High Lift Pallet Truck 2000kg 2500kg 1000mm With Platform Lift
1 Ton Battery Operated High Lift Pallet Truck 2000kg 2500kg 1000mm With Platform Lift
1 Ton Battery Operated High Lift Pallet Truck 2000kg 2500kg 1000mm With Platform Lift
1 Ton Battery Operated High Lift Pallet Truck 2000kg 2500kg 1000mm With Platform Lift
Specifications
Brand Name :
Buytool
Model Number :
HWCBD2000
Certification :
CE,SGS,ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 unit
Price :
$1449~2099 usd/unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 units per month
Delivery Time :
20 working days
Packaging Details :
2200×760×1600mm
Name :
Electric Pallet Truck
Material :
Alloy Steel Q345B
Capacity :
2000kg
Table Dimensions :
1500x700mm
Min. Height :
315mm
Max. Height :
1000mm
Overall Size :
2140×730×1400mm
Motor Power :
2.2KW
Battery :
24V/210Ah
Charger :
24V Working Voltage
Color :
Yellow, Red, Blue, White, Green, Black, Etc.
Application :
Warehouse, Workshop, Building Material Shops
Warranty of Core Components :
One Year
HS Code :
842710
Description

3000kg Battery Operated Fully Electric Pallet Truck With Platform Lift

1. Top quality controller system from CURTIS;
2. WINNER hydraulic power pack;
3. Vertical AC motor;
4. Large capacity battery;
5. REMA plug from Germany;
6. Reverse button on handle;
7. Press the Red emergency button to cut down the power unit;
8. Buffering pedal to make the operator feel comfortable.

Model Capacity Lowered Height Raised Height Platform Size Base Frame Size Lift Time Power pack Net Weight
kg (mm) (mm) (mm) (mm) (second) (kg)
HW1001 1000 205 1000 820×1300 640×1240 20-25 380v/50HZ,AC1.1kw 160
HW1002 205 1000 1000×1600 640×1240 20-25 186
HW1003 240 1300 850×1700 640×1580 30-35 200
HW1004 240 1300 1000×1700 640×1580 30-35 210
HW1005 240 1300 850×2000 640×1580 30-35 212
HW1006 240 1300 1000×2000 640×1580 30-35 223
HW2001 2000 230 1050 850×1300 785×1220 20-25 380v/50HZ,AC1.5kw 235
HW2002 230 1050 1000×1600 785×1220 20-25 268
HW2003 250 1300 850×1700 785×1600 25-35 289
HW2004 250 1300 1000×1700 785×1600 25-35 300
HW2005 250 1300 850×2000 785×1600 25-35 300
HW2006 250 1300 1000×2000 785×1600 25-35 315
HW4001 4000 240 1100 1200×1700 900×1600 30-40 380v/50HZ,AC2.2kw 375
HW4002 240 1100 1200×2000 900×1600 30-40 405
HW4003 300 1400 1000×2000 900×2000 45-50 470
HW4004 300 1400 1200×2000 900×2000 45-50 490
HW4005 300 1400 1000×2200 900×2000 45-50 480
HW4006 300 1400 1200×2200 900×2000 45-50 505
HW4007 300 1400 1500×1700 1200×1600 45-50 420
HW4008 300 1400 1800×2200 1500×2000 45-50 540

Model CBD20
Standard type F20 F25 F30
Electric Power Steering FZ20 FZ25 FZ30
Drive unit Electric Electric Electric
Operation Standing Standing Standing
Capacity kg 2000 2500 3000
Overall length mm 1893/2289 1893/2289 1893/2289
Overall width mm 730 730 730
Overall height mm 1390 1390 1390
Min. fork height mm 85 85 85
Max. fork height mm 205 205 205
Fork size mm 1150×160×56 1150×160×56 1150×160×56
Fork outside width mm 530/680 530/680 530/680
Turning radius mm 1725 1725 1725
Drive motor power KW 1.6 AC 1.6 AC 1.6 AC
Lift motor power KW 0.8 2 2
Battery voltage Ah/V 210/24 210/24 210/24
Net weight (no battery) kg 453/458 467/472 481/486
Battery weight kg 185 185 185

1 Ton Battery Operated High Lift Pallet Truck 2000kg 2500kg 1000mm With Platform Lift

1 Ton Battery Operated High Lift Pallet Truck 2000kg 2500kg 1000mm With Platform Lift

FAQ:

What the mainly currency Buytool can accept?
Prices are quoted mostly in US dollars or EURO. All prices are subject to change without notice.


Can you introduce the shipment of Buytool?
Shipping charges for all Buytool orders are calculated based on the shipping method of the order, the weight or volume of the items on the order, and the destination.We normally can do FOB/CIF/DAP/DDP/DDU terms and also we can send the goods via express or AIR according customer’s requirements. All wooden packages can be fumigated at our side and we will provide the official certification if your Customers need.

CIF TERM: Buytool will arrange the shipping company and will be in charge to assure the goods shipped to destination port. You will not need to pay the shipping company upon delivery to destination port.

FOB TERM: If you would like your preferred shipping company to pick up your order, simply let us know when you place your order. You will be responsible for paying your shipping company sea freight charges besides your order. Buytool only in charge of sending the goods to loading port as agree on order.

What about the delivery time?
Most of items can be shipped out within 30days, some items need a little bit longer time to prepare, we will explain these to you if this situation happens.

What’s the payment term of Buytool?
Buytool accepts L/C at sight or T/T, anyway we prefer T/T mainly because it will save money for both parties, Your first order with Buytool must be prepaid with T/T, after first time, we accept the payment as we ship out goods, then fax the copy of documents to you, you balance the rest payment ,and we will express the original documents to you after we get the money. Any other info please contact us for detail.
