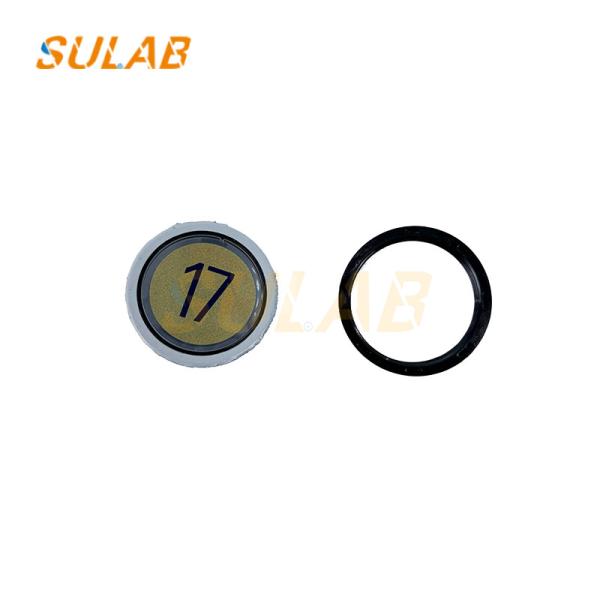

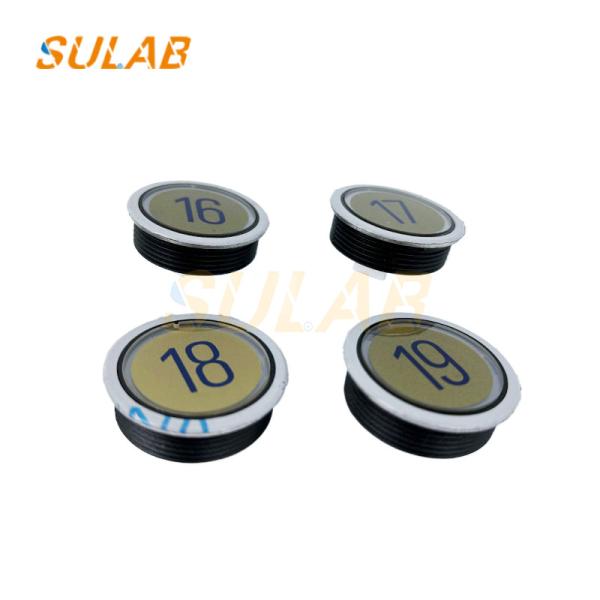

Elevator Push Button with Stainless Steel Faceplate 24V DC IP54 Rated for Elevator Call Buttons
Elevator Push Button with Stainless Steel Faceplate 24V DC IP54 Rated for Elevator Call Buttons
Elevator Push Button with Stainless Steel Faceplate 24V DC IP54 Rated for Elevator Call Buttons
Elevator Push Button with Stainless Steel Faceplate 24V DC IP54 Rated for Elevator Call Buttons
Elevator Push Button with Stainless Steel Faceplate 24V DC IP54 Rated for Elevator Call Buttons
Elevator Push Button with Stainless Steel Faceplate 24V DC IP54 Rated for Elevator Call Buttons
Elevator Push Button with Stainless Steel Faceplate 24V DC IP54 Rated for Elevator Call Buttons
Elevator Push Button with Stainless Steel Faceplate 24V DC IP54 Rated for Elevator Call Buttons
Elevator Push Button with Stainless Steel Faceplate 24V DC IP54 Rated for Elevator Call Buttons
Elevator Push Button with Stainless Steel Faceplate 24V DC IP54 Rated for Elevator Call Buttons
Specifications
Brand Name :
SULAB
Model Number :
5400
MOQ :
1
Payment Terms :
L/C,D/A,D/P,Western Union,MoneyGram,T/T
Delivery Time :
Normally 2-3 working days after payment
Supply Ability :
100
Transportion :
TNT, UPS, DHL, Fedex, Air, Sea
Applicable :
Elevator
Packages :
Carton, Wooden case, Pallet etc
Brand :
Sulab
Description :
Elevator parts
Model :
FB-9B
MOQ :
1PC
Warranty :
One year
Payment Method :
Company Bank, Western union, alibaba, Paypal etc
Description

1. Key Features & Specifications

① Physical Design

  • Material:

    • Faceplate: Stainless steel or brushed aluminum (anti-corrosion).

    • Button Caps: Polycarbonate (scratch-resistant, UV-stable).

  • Mounting:

    • Surface-mounted or flush-mounted (depending on cab design).

    • Standard cutout: 22mm–25mm diameter (varies by button type).

  • Finish Options:

    • Brushed metal, matte black, or custom colors (for aesthetic integration).

② Electrical & Functional Specs

  • Button Type:

    • Momentary push-button (normally open contact).

    • Illuminated LED (white, red, or green backlight).

  • Voltage Rating: 24V DC (low-voltage operation for safety).

  • Contact Rating: 1A @ 30V DC (sufficient for elevator control signals).

  • Tactile Feedback: Audible "click" or silent operation (configurable).

③ Compliance & Durability

  • IP Rating: IP54 (dust and splash-proof).

  • Fire Safety: Meets EN 81-70 (fire-resistant materials).

  • Cycle Life: ≥500,000 presses (long-lasting reliability).

2. Common Button Types in Sc 5400 Series

Button Type Function Appearance
Floor Selection Selects destination floor Number + LED backlight
Door Open/Close Manual door control ◁▷ symbol + green/red LED
Emergency Stop Halts elevator in emergencies Red button + yellow bezel
Alarm/Call Triggers emergency intercom Bell icon + red backlight

3. Installation & Compatibility

  • Compatible Controllers:

    • Sc Miconic 10 / Miconic TX / PORT systems.

  • Wiring:

    • Uses ribbon cable or terminal block connections.

    • Plug-and-play with Sc’s modular cab panels.

4. Troubleshooting & Maintenance

Common Issues

  • Button unresponsive → Check wiring or LED power supply.

  • LED flickering → Loose connection or failing backlight.

  • Stuck button → Debris in mechanism (clean with compressed air).

Replacement Notes

  • Ensure Sc 5400-compatible part numbers (e.g., A12345-001).

  • Buttons are field-replaceable without full panel removal.
