Details for Elevator Car Top Circuit Pcb Board SCCAR 13.QL ID NR. 560546

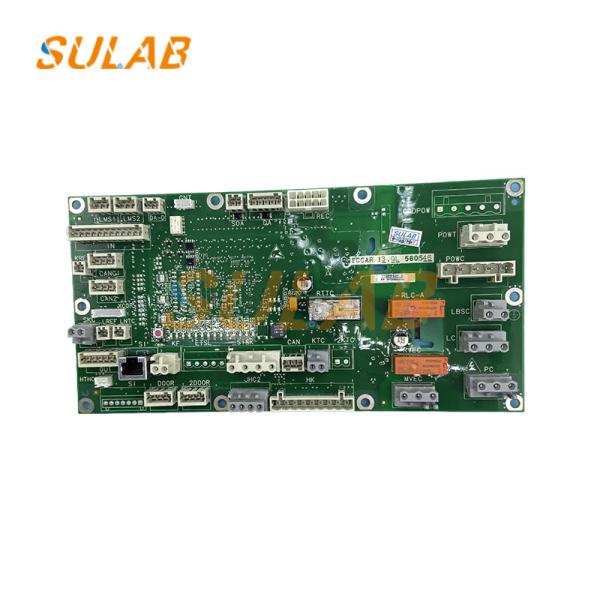

Pictures for Elevator Car Top Circuit Pcb Board SCCAR 13.QL ID NR. 560546

SB auxiliary contact is disconnected when the car is moving. Additional information: None. Source identification: None. Possible error causes: a) Safety circuit is disconnected. b) Measures to be taken: Check the safety circuit and the wiring of the SB auxiliary contact. 009 KB fault (KB-FAULT) Description: The brake contact KB or KB1 does not work properly. The operation control requires information from both KB and KB1 contacts. When there is only one KB signal, check whether there is a short connection on the PCB plug.

Elevator PCB Board - FAQ

Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.

Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.

Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.

Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.

Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
