CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators
CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators
CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators
CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators
CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators
CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators
CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators
CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators
CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators
CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators
CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators
CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT for Elevators
Specifications
Model Number :
CNTD CMV16031C2
MOQ :
1
Payment Terms :
D/A,D/P,T/T,Western Union
Delivery Time :
3-5 Working Days
Type :
CNTD CMV16031C2
Product name :
CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT
Applicable :
elevator parts,Elevator Equipment,General for escalator parts,Passenger Lift,Passenger Elevator
Transportation :
Clients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
Business type :
manufacturer
Packing :
Packed in carton
Description

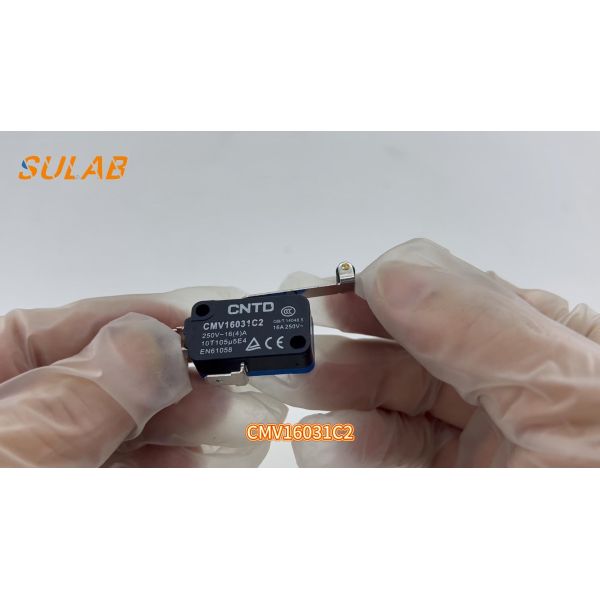

CNTD CMV16031C2 Snap-Action Limit Switch 16 A 250 V Long-Lever Roller SPDT


Heavy-duty snap-action micro-limit switch for elevator door position, home-appliance interlock and industrial automation.
Long lever with 19 mm nylon roller gives 30° over-travel and positive NC/NO action; silver-alloy contacts handle 16 A @ 250 V AC.
Glass-fiber reinforced housing (UL 94 V-0), IP 40 protection, > 1 million mechanical cycles, –25 °C ~ +85 °C.
Drop-in replacement for CMV16001C / 16011C / 16021C series; quick-connect 6.3 mm terminals accept standard harness.
CE, RoHS, UL file E258663.



Item Value
Model CMV16031C2
Electrical rating 16 A 250 V AC, 1/4 HP 125 V
Contact form SPDT (1NO+1NC)
Operating force ≤ 0.5 N
Release force ≥ 0.15 N

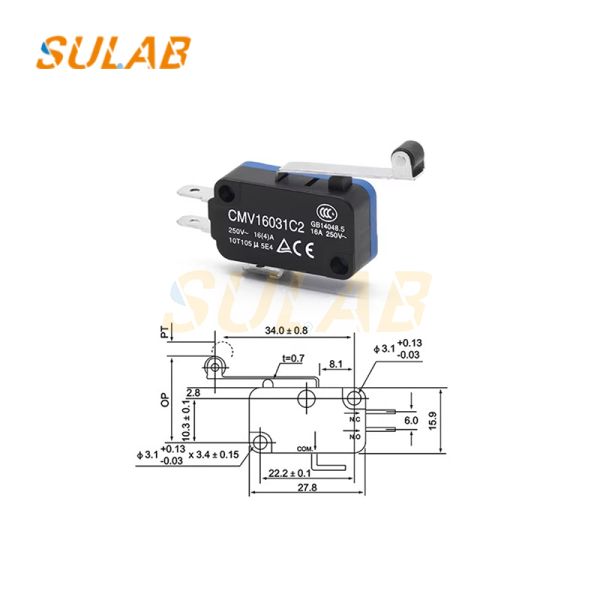

Pre-travel 6 mm ± 1 mm
Over-travel ≥ 3 mm (30° lever)
Roller diameter 19 mm nylon
Terminals 6.3 mm quick-connect
Dielectric strength 1 500 V RMS
Insulation resistance ≥ 100 MΩ (500 V DC)
Mechanical life 1 × 10⁶ cycles
Temperature range –25 °C ~ +85 °C
Protection IP 40
Approvals UL, CE, RoHS
Weight 28 g
Mounting 2 × M4 screws, 25.2 mm centres
