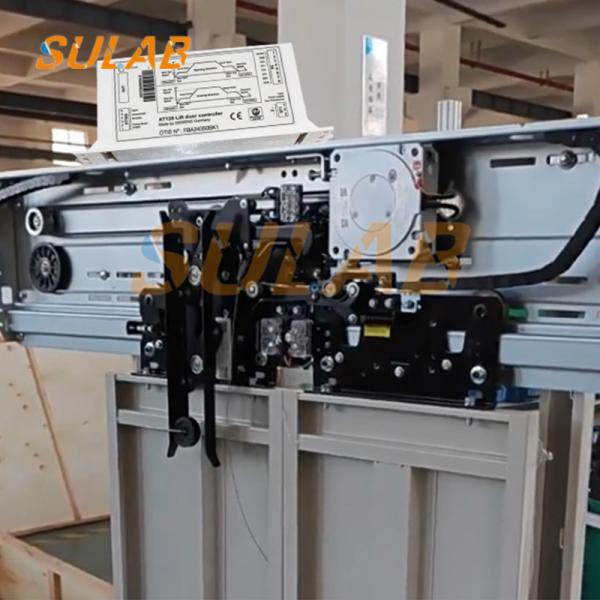

Otis Elevator AT120 Door Machine Controller FAA24350BK1 Frequency Drive Module For Smooth Door Operation Spare Part

• Serves as the core control unit of Otis AT120 door operator system, managing elevator door opening, closing and locking operations with precise motion control algorithms.
• Implements closed-loop vector control with encoder feedback, achieving ±1mm positioning accuracy and smooth S-type acceleration/deceleration curves for elevator doors.
• Features door width, torque and motor direction self-learning capabilities, enabling quick adaptation to different door system configurations and easy on-site debugging.

  Brand	SULAB
  Description	Elevator parts
  Model	AT120
  MOQ	1PC
  Transportion	TNT, UPS, DHL, Fedex, Air, Sea
  Applicable	Elevator
  Packages	Carton, Wooden case, Pallet etc
  Delivery Time	Normally 2-3 working days after payment
  Warranty	One year
  Payment Method	Company Bank, Western union, Paypal etc

  Integrates advanced anti-pinch protection with adjustable torque limit (≤150N), immediately stopping and reversing door movement upon obstacle detection to ensure passenger safety.

  Maintains stable communication with LCBII/TCB main control boards via discrete signals, providing real-time door status feedback and fault diagnosis data for maintenance.

  Equipped with industrial-grade EMC anti-interference performance and comprehensive overcurrent/overvoltage protection, ensuring reliable operation even in harsh elevator environment.






Elevator Door Controller – Frequently Asked Questions

Q1: How do I identify the correct replacement elevator door controller?

Check the original controller part number, hardware revision, supply voltage, motor type, connector layout, and communication interface. Similar-looking controllers may have different control functions or software requirements.

Q2: Can an elevator door controller work with a different door motor?

Not necessarily. Compatibility depends on the motor type, rated electrical parameters, position feedback, and control method. The controller and motor specifications must be verified together.

Q3: Does an elevator door controller require door travel learning after replacement?

Some door controllers require door travel learning, motor parameter configuration, or position calibration after replacement. Other systems use different setup procedures. Requirements depend on the controller model and door operator design.

Q4: What causes an elevator door controller to report faults?

Possible causes include power supply problems, motor feedback errors, wiring faults, incorrect settings, or controller failure. Fault indications should be interpreted using the specific controller's technical documentation.

Q5: Can I replace only the elevator door controller instead of the complete door operator?

In some systems, the controller can be replaced separately if it is compatible with the existing motor, feedback device, wiring, and control interfaces. Compatibility should be confirmed before ordering.
