Specifications
Product Type :
Elevator LCD Display Board / PCB Panel
Display Technology :
High-contrast LCD with LED backlight
Voltage :
DC 24V ±10%
Dimensions :
180mm × 120mm × 25mm (Standard mounting)
Interface :
12-pin industrial connector
Brand Name :
Mitsubishi
Model Number :
P235726B000G22 (Compatible with G01/G02/G11/G12)
MOQ :
1
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
3-5 working days
Description

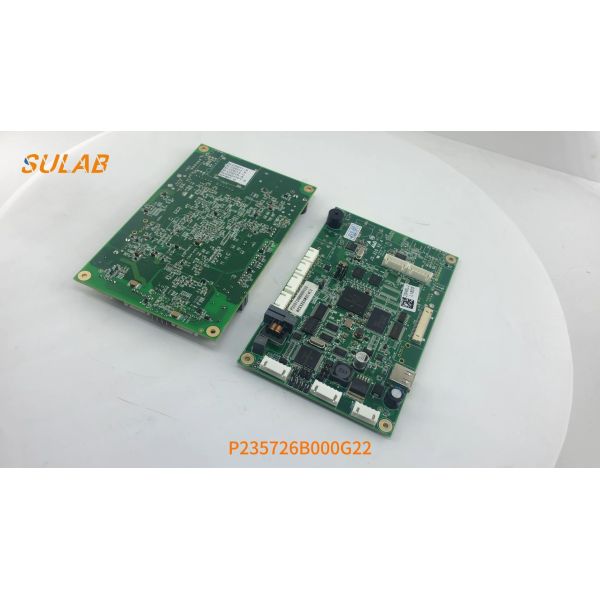

Mitsubishi Elevator Parts LCD Panel P235726B000G22 G01 G02 G11 G12 Elevator Display Board
Original Mitsubishi elevator LCD display panel P235726B000G22, designed for modern elevator control systems. This high-performance display board serves as both COP (Car Operating Panel) and LOP (Landing Operating Panel) interface, ensuring clear floor indication and status display for passengers. Compatible with multiple variants including G01, G02, G11, and G12 specifications.
Technical Specifications
Parameter Specification
Brand Mitsubishi
Model P235726B000G22 (Compatible with G01/G02/G11/G12)
Product Type Elevator LCD Display Board / PCB Panel
Display Technology High-contrast LCD with LED backlight
Voltage DC 24V ±10%
Dimensions 180mm * 120mm * 25mm (Standard mounting)
Interface 12-pin industrial connector
Certification CE, ISO 9001, Mitsubishi original standards
Key Features
  • Genuine Mitsubishi Part - 100% original factory component with Mitsubishi holographic seal and part number verification
  • Multi-Model Compatibility - Interchangeable with P235726B000G01, G02, G11, G12 series, reducing inventory complexity
  • Crystal Clear Display - High-brightness LCD ensures excellent visibility in all lighting conditions, including direct sunlight in lobbies
  • Plug-and-Play Installation - Exact OEM dimensions and connector layout for tool-free replacement in under 15 minutes
  • Industrial-Grade Durability - Vibration-resistant design rated for 10+ years of continuous elevator operation
  • Comprehensive Warranty - 12-month replacement guarantee with free technical support


Elevator Display - FAQ

Q1: What types of displays are used in elevator systems?
Elevator systems use LED indicators, LCD screens, including TFT LCD displays, and other display technologies to show floor numbers, travel direction, and operating status.

Q2: Are elevator displays with the same screen size interchangeable?
Not necessarily. Displays with the same dimensions may differ in supply voltage, communication protocols, connector configurations, and control requirements. Compatibility must be verified before replacement.

Q3: What causes an elevator floor display to show incorrect information?
Possible causes include communication errors, controller configuration problems, wiring faults, or display module failure. The actual cause should be identified before replacement.

Q4: Can an elevator display be upgraded without replacing the control system?
In some systems, the display can be upgraded separately if the replacement supports the existing controller, communication protocol, and electrical requirements.

Q5: What information is required to order a replacement elevator display?
Please provide the original part number, display type, screen dimensions, supply voltage, communication interface, connector details, controller model, and clear photos for accurate matching.
