High flexibility twisted cable without sheath RVS PVC insulated wire
High flexibility twisted cable without sheath RVS PVC insulated wire
High flexibility twisted cable without sheath RVS PVC insulated wire
High flexibility twisted cable without sheath RVS PVC insulated wire
Specifications
Brand Name :
SUNNY
Model Number :
RVS
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
100meters
Price :
Negotiation
Payment Terms :
L/C,Western Union,T/T
Supply Ability :
50000 meters/week
Delivery Time :
7~15 days
Packaging Details :
in Carton Box
Name :
High flexibility twisted cable
Transportation :
DHL TNT FEDEX
Warranty time :
12 Months
Applicable :
Elevator Equipment
Category :
elevator parts
Specification :
2*0.5
Model :
High flexibility twisted cable
Product :
High flexibility twisted cable
Description

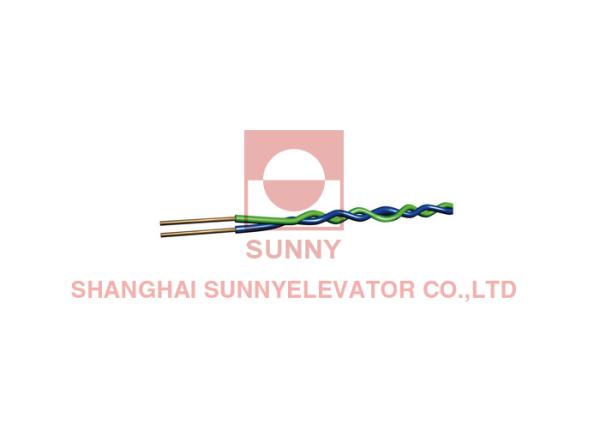

High flexibility twisted cable without sheath RVS PVC insulated wire

● Application:Applied for the internal connection of the cabin, machine room, temporary connection in the shaft.
● Feature:
1.PVC insulation.
2.Rated voltage AC300/300V,rated temperature 70℃.

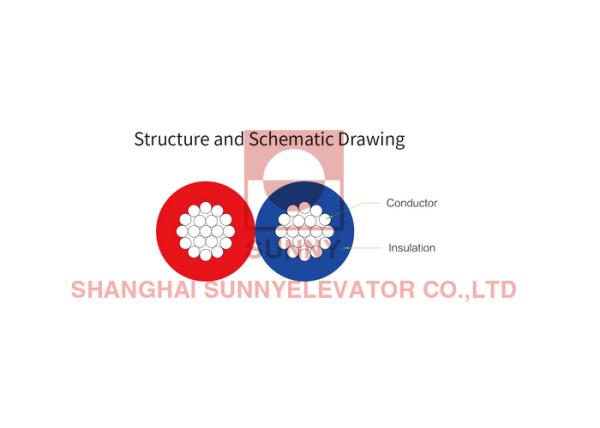

3.The conductor consists of multi-copper wires or tinned copper wires are available.


Cable parameters

Type Specification

Conductor Structure

(quanlity/diameter)

Finished product

(max.outer dia.)(mm)

Insulation resistance

at 70°C(Ω/KM)

DC resistance of

conductor at 20℃

(Ω/KM)
RVS 2*0.5 28/0.15 6.0 ≥0.016 ≤39.0
RVS 2*0.75 42/0.15 6.2 ≥0.014 ≤26.0
RVS 2*1.0 57/0.15 6.6 ≥0.011 ≤19.5
RVS 2*1.5 84/0.15 7.2 ≥0.010 ≤13.3
RVS 2*2.5 140/0.15 8.2 ≥0.009 ≤7.98
RVS 2*4 224/0.15 9.2 ≥0.007 ≤4.95
RVS 2*6 189/0.2 10.6 ≥0.006 ≤3.30

High flexibility twisted cable without sheath RVS PVC insulated wire



High flexibility twisted cable without sheath RVS PVC insulated wire


High flexibility twisted cable without sheath RVS PVC insulated wire

High flexibility twisted cable without sheath RVS PVC insulated wire


FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
