0.25~0.63m/S Speed Super Heavy-Duty Elevator Safety Gear Industrial Lift Safety Clamp
0.25~0.63m/S Speed Super Heavy-Duty Elevator Safety Gear Industrial Lift Safety Clamp
0.25~0.63m/S Speed Super Heavy-Duty Elevator Safety Gear Industrial Lift Safety Clamp
0.25~0.63m/S Speed Super Heavy-Duty Elevator Safety Gear Industrial Lift Safety Clamp
Specifications
Brand Name :
SUNNY
Model Number :
SN-SG-L16/A
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 Pcs
Price :
$ 120~185
Payment Terms :
Western Union,T/T,L/C,Paypal
Supply Ability :
5000 Pcs/ Month
Delivery Time :
7 working days
Packaging Details :
Wooden box
Name :
Elevator Safety Gear
Type :
Elevator Parts
speed :
0.25~0.63m/s
Model :
Car parts
Product name :
Elevator Safety Gear
Product :
Elevator Safety Gear
Use :
Lift
Voltage :
AC220V
P+Q(kg) :
≤58000
Width of guide rails :
31.75mm
Description

0.25~0.63m/S Speed Super Heavy-Duty Elevator Safety Gear Industrial Lift Safety Clamp

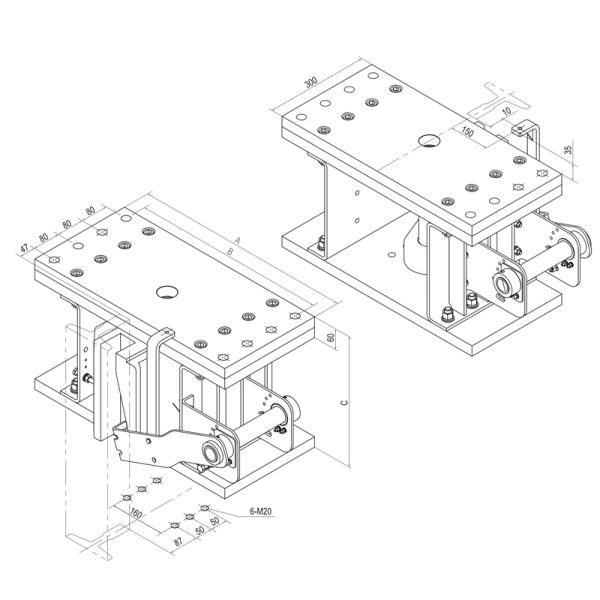

Type Rated speed(m/s) Tripping speed(m/s) P+Q(kg) Rail width(mm) A B C Certifications
SN-SG-L16 0.25~0.63 0.29~0.8 ≤58000 31.75 604 534 347 GB
SN-SG-L16A 0.25~0.63 0.29~0.8 ≤75000 31.75 730 670 391 GB
0.25~0.63m/S Speed Super Heavy-Duty Elevator Safety Gear Industrial Lift Safety Clamp
0.25~0.63m/S Speed Super Heavy-Duty Elevator Safety Gear Industrial Lift Safety Clamp 0.25~0.63m/S Speed Super Heavy-Duty Elevator Safety Gear Industrial Lift Safety Clamp

0.25~0.63m/S Speed Super Heavy-Duty Elevator Safety Gear Industrial Lift Safety Clamp

0.25~0.63m/S Speed Super Heavy-Duty Elevator Safety Gear Industrial Lift Safety Clamp

FAQ

  1. Are the elevator wire ropes durable?

    The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.

  2. Is it dangerous for power failure suddenly during the elevator running?

    If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.

  3. Will us be hurt when it closed suddenly?

    In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.

  4. How the elevator running?

    Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.

  5. Is the escalator installation complicated?

    We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.

  6. Do you have any cerifications?

    Yes, we do with ISO9001 / CCC / CE Certificates for u.
