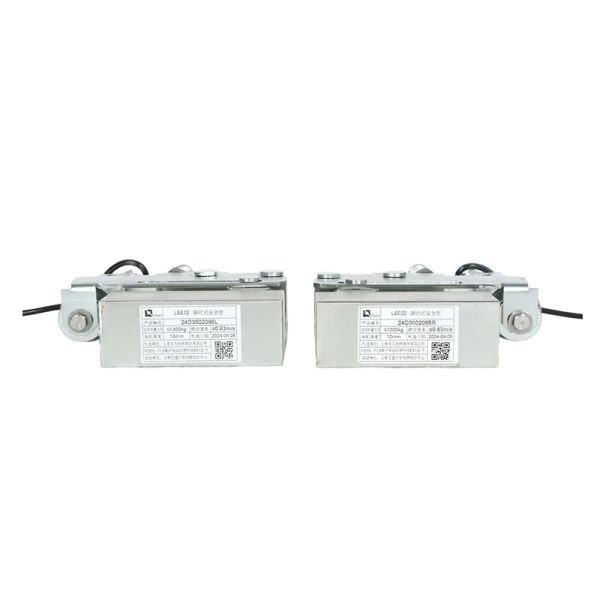

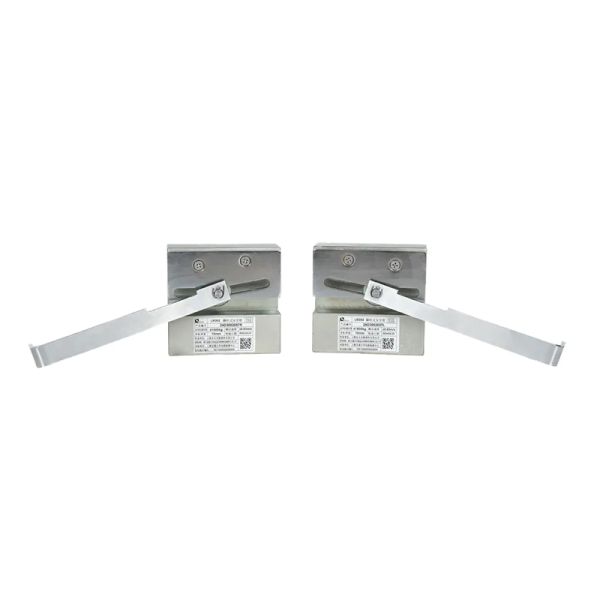

Villa Elevator Safety Gear Home Lift Safety Device With 9/10/15.88/16mm Rail Width
Villa Elevator Safety Gear Home Lift Safety Device With 9/10/15.88/16mm Rail Width
Villa Elevator Safety Gear Home Lift Safety Device With 9/10/15.88/16mm Rail Width
Villa Elevator Safety Gear Home Lift Safety Device With 9/10/15.88/16mm Rail Width
Villa Elevator Safety Gear Home Lift Safety Device With 9/10/15.88/16mm Rail Width
Villa Elevator Safety Gear Home Lift Safety Device With 9/10/15.88/16mm Rail Width
Specifications
Brand Name :
SUNNY
Model Number :
SN-SG-LSG02
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 Pcs
Price :
$ 90-150
Payment Terms :
Western Union,T/T,L/C,Paypal
Supply Ability :
5000 Pcs/ Month
Delivery Time :
7 working days
Packaging Details :
Wooden box
Name :
Villa Elevator Safety Gear Home Lift Safety Device
Type :
Elevator Parts
speed :
0.25-0.63m/s
P+Q :
≤1500 kg
Tripping speed :
0.29-0.8 m/s
Model :
Car parts
Product name :
Villa Elevator Safety Gear Home Lift Safety Device
Product :
Villa Elevator Safety Gear Home Lift Safety Device
Use :
Lift
Rail Width :
9/10/15.88/16mm
Description
Villa Elevator Safety Gear Home Lift Safety Device With 9/10/15.88/16mm Rail Width
Product Features

The LSG02 villa elevator safety gear home lift safety device features multiple mounting interfaces to accommodate the diverse installation requirements of residential elevators. Whether mounted vertically or sideways, the LSG02 offers flexible adaptation to meet diverse space layout requirements.
The LSG02 utilizes a roller-type instantaneous safety clamp structure, offering fast action and a short stopping distance, typically within tens of millimeters. It is ideal for emergency braking in low-speed elevators. Its extremely short stopping time effectively prevents the car from falling, ensuring passenger safety.
The LSG02 also offers excellent compatibility and scalability, making it suitable for a wide range of residential elevator models.

Rated Speed 0.25-0.63 m/s
Tripping Speed 0.29-0.8 m/s
Rail Width 9/10/15.88/16 mm
Permitted P+Q 6500-12500 kg
Certifications GB

Villa Elevator Safety Gear Home Lift Safety Device With 9/10/15.88/16mm Rail Width

Villa Elevator Safety Gear Home Lift Safety Device With 9/10/15.88/16mm Rail Width

Villa Elevator Safety Gear Home Lift Safety Device With 9/10/15.88/16mm Rail Width

Villa Elevator Safety Gear Home Lift Safety Device With 9/10/15.88/16mm Rail Width

Villa Elevator Safety Gear Home Lift Safety Device With 9/10/15.88/16mm Rail Width

FAQ
Are the elevator wire ropes durable?

The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.

Is it dangerous for power failure suddenly during the elevator running?

If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.

Will us be hurt when it closed suddenly?

In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.

How the elevator running?

Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.

Is the escalator installation complicated?

We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.

Do you have any cerifications?

Yes, we do with ISO9001 / CCC / CE Certificates for u.
