Specifications
Brand Name :
SUNNY
Model Number :
SN-SG-LSG03
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 Pcs
Price :
$ 90-150
Payment Terms :
Western Union,T/T,L/C,Paypal
Supply Ability :
5000 Pcs/ Month
Delivery Time :
7 working days
Packaging Details :
Wooden box
Name :
Elevator Progressive Safety Gear
Type :
Elevator Parts
speed :
0.25-1.0 m/s
P+Q :
1000~6500 kg
Tripping speed :
0.29-3.22 m/s
Model :
Car parts
Product name :
Elevator Progressive Safety Gear
Product :
Elevator Progressive Safety Gear
Use :
Lift
Rail Width :
9/10/15.88/16mm
Description


GB/CE Certifications Elevator Progressive Safety Gear Device Lift Safety Clamp


Product Features

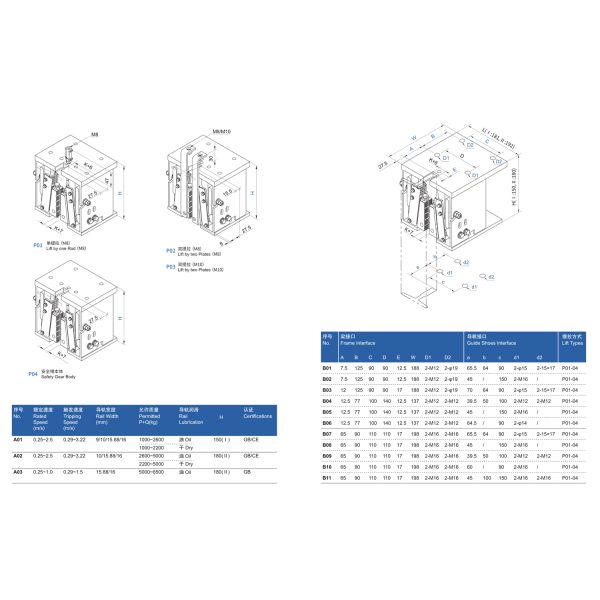

The LSG03 elevator progressive safety gear device lift safety clamp utilizes a dual-wedge structure with a U-shaped leaf spring as the spring element. In the event of an elevator overspeed or malfunction, friction between the wedges and the guide rails provides smooth braking, effectively stopping the elevator car.


Rated Speed 0.25-2.5 m/s
Tripping Speed 0.29-3.33 m/s
Rail Width 9/10/15.88/16 mm
Permitted P+Q 1000-6500 kg
Rail Lubrication Oil/Dry
Certifications GB/CE


GB/CE Certifications Elevator Progressive Safety Gear Device Lift Safety Clamp


GB/CE Certifications Elevator Progressive Safety Gear Device Lift Safety Clamp


GB/CE Certifications Elevator Progressive Safety Gear Device Lift Safety Clamp


GB/CE Certifications Elevator Progressive Safety Gear Device Lift Safety Clamp

GB/CE Certifications Elevator Progressive Safety Gear Device Lift Safety Clamp


FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
