High-capacity Freight Lift Safety Gear Cargo Elevator Safety Parts With 0.25~1.5m/s
High-capacity Freight Lift Safety Gear Cargo Elevator Safety Parts With 0.25~1.5m/s
High-capacity Freight Lift Safety Gear Cargo Elevator Safety Parts With 0.25~1.5m/s
High-capacity Freight Lift Safety Gear Cargo Elevator Safety Parts With 0.25~1.5m/s
High-capacity Freight Lift Safety Gear Cargo Elevator Safety Parts With 0.25~1.5m/s
High-capacity Freight Lift Safety Gear Cargo Elevator Safety Parts With 0.25~1.5m/s
Specifications
Brand Name :
SUNNY
Model Number :
SN-SG-LSG18
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 Pcs
Price :
$ 90-150
Payment Terms :
Western Union,T/T,L/C,Paypal
Supply Ability :
5000 Pcs/ Month
Delivery Time :
7 working days
Packaging Details :
Wooden box
Name :
Lift Safety Gear
Type :
Elevator Parts
speed :
0.25-1.5m/s
P+Q :
6500~12500 kg
Tripping speed :
0.29-2.04 m/s
Model :
Car parts
Product name :
Lift Safety Gear
Product :
Lift Safety Gear
Use :
Lift
Rail Width :
9/16mm
Description
High-capacity Freight Lift Safety Gear Cargo Elevator Safety Parts With 0.25~1.5m/s
Product Features

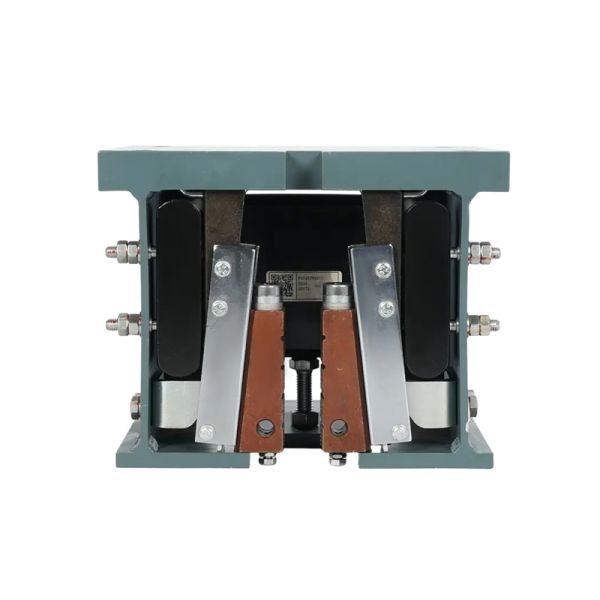

The LSG18 high-capacity freight lift safety gear cargo elevator safety parts, lies in its dual wedge structure and U-shaped leaf spring as the spring element. This ensures smooth and reliable car braking in emergency situations, safeguarding both passengers and cargo. With a maximum system mass of 12.5 tons, this safety clamp is suitable for freight elevator systems with high rated speeds and heavy loads.

The structural design of this safety clamp fully considers the high reliability and long life requirements of practical applications. The U-shaped leaf spring, as the spring element, provides stable clamping force between the wedge and the guide rail, ensuring smooth braking and reducing impact and wear on the guide rail. Furthermore, the deformation of the U-shaped leaf spring determines the clamping force, so it is precisely adjusted to the load and guide rail conditions before shipment and sealed to ensure stable performance.

Rated Speed 0.25-1.5 m/s
Tripping Speed 0.29-2.04 m/s
Rail Width 9/16 mm
Permitted P+Q 6500-12500 kg
Rail Lubrication Oil/Dry
Certifications GB

High-capacity Freight Lift Safety Gear Cargo Elevator Safety Parts With 0.25~1.5m/s

High-capacity Freight Lift Safety Gear Cargo Elevator Safety Parts With 0.25~1.5m/s

High-capacity Freight Lift Safety Gear Cargo Elevator Safety Parts With 0.25~1.5m/s

High-capacity Freight Lift Safety Gear Cargo Elevator Safety Parts With 0.25~1.5m/s

High-capacity Freight Lift Safety Gear Cargo Elevator Safety Parts With 0.25~1.5m/s

FAQ
Are the elevator wire ropes durable?

The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.

Is it dangerous for power failure suddenly during the elevator running?

If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.

Will us be hurt when it closed suddenly?

In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.

How the elevator running?

Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.

Is the escalator installation complicated?

We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.

Do you have any cerifications?

Yes, we do with ISO9001 / CCC / CE Certificates for u.
