450~1000KG Gearless Elevator Machine For Sightseeing Elevators
450~1000KG Gearless Elevator Machine For Sightseeing Elevators
Specifications
Brand Name :
SUNNY
Model Number :
SN-FRD32WA
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
$500~1200
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
5000pcs/month
Delivery Time :
7~15 days
Packaging Details :
Wooden box
Name :
Gearless Elevator Machine
Load :
450~1000KG
Speed :
0.5-2.0m/s
Traction ratio :
2:1
Static load :
3000kg
Brake :
DC110V,2*1.5A
Warranty time :
12 Months
Application :
elevator.lift
Model :
Gearless Elevator Machine
Type :
Gearless Elevator Machine
Description
450~1000KG Gearless Elevator Machine For Sightseeing Elevators
This series of main units are widely used in the configuration of inorganic guest elevators and sightseeing elevators

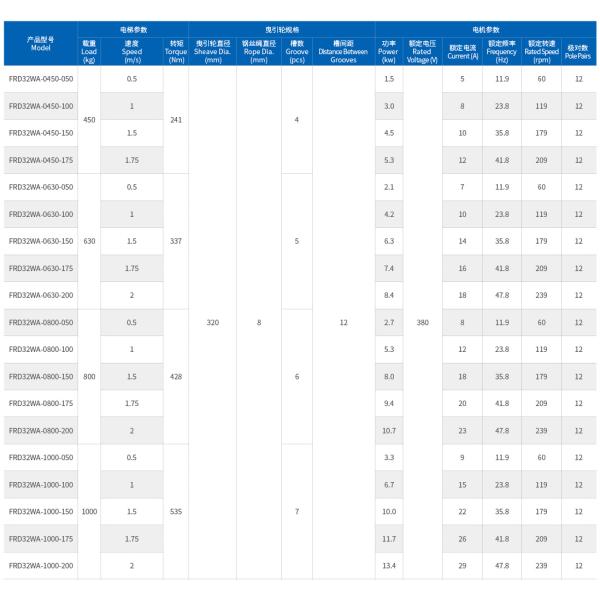

Product Specifications
Attribute Value
Name Gearless Elevator Machine
Load 450~1000KG
Speed 0.5-2.0m/s
Traction ratio 2:1
Static load 3000kg
Brake DC110V,2*1.5A
Warranty time 12 Months
Application elevator.lift
Model Gearless Elevator Machine
Type Gearless Elevator Machine

450~1000KG Gearless Elevator Machine For Sightseeing Elevators

450~1000KG Gearless Elevator Machine For Sightseeing Elevators

450~1000KG Gearless Elevator Machine For Sightseeing Elevators

450~1000KG Gearless Elevator Machine For Sightseeing Elevators

Frequently Asked Questions
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration considers not only wire rope and rated load, but also the size of the traction. The tensile strength exceeds the lift weight, with a safety factor of four or more wire ropes, preventing simultaneous breakage.
2. Is it dangerous during sudden power failure while the elevator is running?
In such cases, the elevator automatically stops due to electrical and mechanical safety devices. The brakes engage during power failure. Planned outages are preceded by prior notice from power supply departments.
3. Will users be hurt if the doors close suddenly?
The doors automatically reopen when touched during closing, with anti-pinch switches preventing closure. The closing force is carefully calibrated for safety.
4. How does the elevator operate?
Elevators move via counterweight wire ropes through traction drive, moving vertically along guide rails.
5. Is escalator installation complicated?
Our escalators feature integrated structures for precision and efficiency, enabling easier installation and more convenient commissioning.
6. Do you have any certifications?
Yes, we hold ISO9001, CCC, and CE Certificates for our products.
