350kg~700kg Direct Drive Winding Drum Gearless Machine For Home Lift
350kg~700kg Direct Drive Winding Drum Gearless Machine For Home Lift
350kg~700kg Direct Drive Winding Drum Gearless Machine For Home Lift
350kg~700kg Direct Drive Winding Drum Gearless Machine For Home Lift
Specifications
Brand Name :
SUNNY
Model Number :
SN-KA120D
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
$500~1200
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
5000pcs/month
Delivery Time :
7~15 days
Packaging Details :
Wooden box
Name :
Gearless Machine
Load :
350kg~700kg
Speed :
0.25m/s-0.4m/s
Traction ratio :
1:1
Static load :
1500kg
Voltage :
220V/380V
Warranty time :
12 Months
Application :
elevator.lift
Model :
Gearless Machine
Type :
Gearless Machine
Description

350kg~700kg Direct Drive Winding Drum Gearless Machine For Home Lift

Quality direct drive machine PMS motor (Home lift application without counterweight design)

Load(P+Q):350kg~700kg Voltage:220V/380V IP Code: IP41
Speed:0.25m/s-0.4m/s Brake Vol: DC110V INS.Class: F
Roping:1:1 Static Load:1500kg Poles: 32

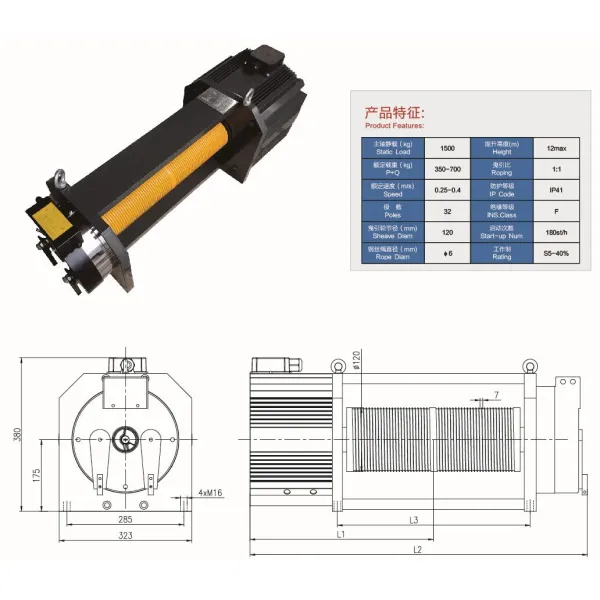

SN-KA120D Series Direct drive Machine Drum Traction Machine Specification

Type

Load

(P+Q)
[kg]

 Lift
Speed
[m/s]		 Drum
Diam
[mm]		 Groove Vol
[V]		 Power
[kW]		 Hoist height(M) Speed
[r/min]		 Current
[A]		 Freq
[Hz]		 Poles
SN-KA120D 350 0.3 120 2×Φ6 380V 1.1 6-12 48 5 12.80 32
SN-KA120D 350 0.4 120 2×Φ6 380V 1.4 6-12 64 5 17.07 32
SN-KA120D 500 0.3 120 2×Φ6 380V 1.6 6-12 48 6 12.80 32
SN-KA120D 500 0.4 120 2×Φ6 380V 2.1 6-12 64 7 17.07 32
SN-KA120D 600 0.3 120 2×Φ6 380V 1.8 6-12 48 7 12.80 32
SN-KA120D 600 0.4 120 2×Φ6 380V 2.4 6-12 64 9 17.07 32
SN-KA120D 700 0.3 120 2×Φ6 380V 2.1 6-12 48 8 12.80 32
SN-KA120D 700 0.4 120 2×Φ6 380V 2.8 6-12 64 10 17.07 32

350kg~700kg Direct Drive Winding Drum Gearless Machine For Home Lift

350kg~700kg Direct Drive Winding Drum Gearless Machine For Home Lift

350kg~700kg Direct Drive Winding Drum Gearless Machine For Home Lift

350kg~700kg Direct Drive Winding Drum Gearless Machine For Home Lift

Frequently Asked Questions
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration considers not only wire rope and rated load, but also the size of the traction. The tensile strength exceeds the lift weight, with a safety factor of four or more wire ropes, preventing simultaneous breakage.
2. Is it dangerous during sudden power failure while the elevator is running?
In such cases, the elevator automatically stops due to electrical and mechanical safety devices. The brakes engage during power failure. Planned outages are preceded by prior notice from power supply departments.
3. Will users be hurt if the doors close suddenly?
The doors automatically reopen when touched during closing, with anti-pinch switches preventing closure. The closing force is carefully calibrated for safety.
4. How does the elevator operate?
Elevators move via counterweight wire ropes through traction drive, moving vertically along guide rails.
5. Is escalator installation complicated?
Our escalators feature integrated structures for precision and efficiency, enabling easier installation and more convenient commissioning.
6. Do you have any certifications?
Yes, we hold ISO9001, CCC, and CE Certificates for our products.
