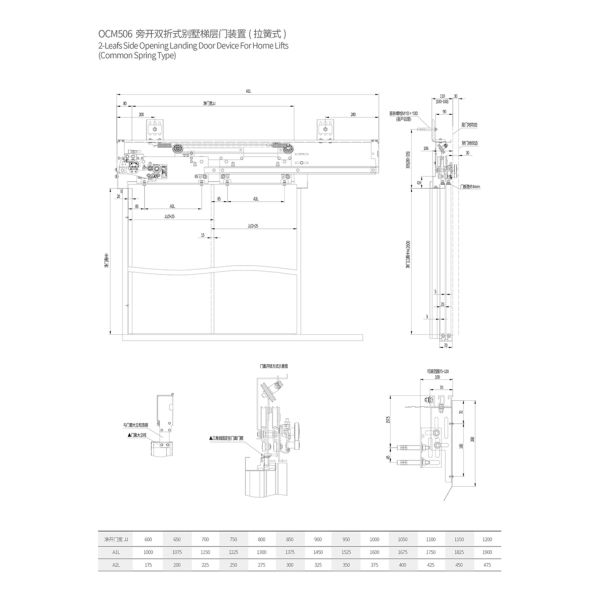

DC110V 2-Leafs Side Opening Landing Door Device For Home Lifts (Common Spring Type)
DC110V 2-Leafs Side Opening Landing Door Device For Home Lifts (Common Spring Type)
Specifications
Brand Name :
SUNNY
Model Number :
SN-OCM-506
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
$500~1200
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
5000pcs/month
Delivery Time :
7~15 days
Packaging Details :
container
Name :
2-Leafs Side Opening Landing Door Device
Product Name :
2-Leafs Side Opening Landing Door Device
JJ :
600~1200MM
Used :
Elevator Parts
System :
Elevator control system
Install :
Common Spring Type
Transportation :
Sea Delivery
Applicable :
Elevator Equipment
Model :
2-Leafs Side Opening Landing Door Device
Type :
2-Leafs Side Opening Landing Door Device
Description

2-Leafs Side Opening Landing Door Device For Home Lifts (Common Spring Type)

Features:

◎The door hanger has a safety hook to prevent collision and fall off, passed 45kg soft pendulum test, which conforms to GB/T7588.1/2 standard requirement
◎Door lock voltages ≤ AC230V,≤ DC110V
◎Using common spring self-closing type. Common spring is located inside the upper side of landing door device
◎Using door jamb unlocking type. 70 sill is applicable, especially for home lifts
◎Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER. Level of protection is IP20
◎Standard floor height ≥ HH+600, lowest floor height HH+400

DC110V 2-Leafs Side Opening Landing Door Device For Home Lifts (Common Spring Type)


DC110V 2-Leafs Side Opening Landing Door Device For Home Lifts (Common Spring Type) DC110V 2-Leafs Side Opening Landing Door Device For Home Lifts (Common Spring Type) DC110V 2-Leafs Side Opening Landing Door Device For Home Lifts (Common Spring Type) DC110V 2-Leafs Side Opening Landing Door Device For Home Lifts (Common Spring Type)
Frequently Asked Questions
Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration considers not only wire rope and rated load, but also the size of the traction. The tensile strength of wire rope exceeds the weight of the lift, with a safety factor of at least four wire ropes to prevent simultaneous breakage.
Is it dangerous for power failure suddenly during the elevator running?
In case of power failure, the elevator will automatically stop due to electrical and mechanical safety devices. Elevator brakes will engage automatically. Power supply departments typically provide prior notice for planned outages.
Will us be hurt when it closed suddenly?
During closing, if the door contacts a person, it will automatically reopen without danger. The anti-pinch switch prevents closure when obstruction is detected, and closing force is carefully regulated.
How the elevator running?
Elevators operate via counterweight wire ropes through traction drive, moving vertically along guide rails.
Is the escalator installation complicated?
Our escalators feature integrated structures for precision and efficiency, making installation and commissioning simpler and more convenient.
Do you have any cerifications?
Yes, we hold ISO9001, CCC, and CE Certificates for our products.
