Specifications
Brand Name :
PingFang
Model Number :
DYN30A (D07)
Certification :
CE, ISO13485
Place of Origin :
Changshu, Jiangsu
MOQ :
50 PCS
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
1000 PCS per Month
Delivery Time :
20 work days
Packaging Details :
1 pc packaged into 1 carton (carton size: 650*360*770mm); All sides of the interior are protected by pearl cotton ; 20GP=162CTNS 40GP=324CTNS
Product name :
Foldable Electric Wheelchair
Material :
Aluminum Alloy
Maximum Speed :
6km / h
Charging Time :
4h
Surface :
Environmental Protection Coating
Load Capacity :
100 KG ; 220.46 lb
Applicable People :
Disabled or Elderly
Description

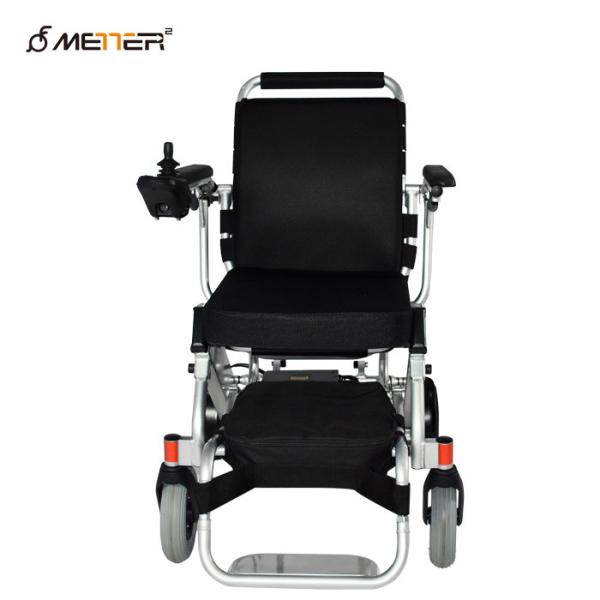

High Quality Folding Electric Wheelchair With Aluminum Alloy For The Elderly Indoor And Outdoor
Model DYN30A ( D07 )

Description

Pingfang electric wheelchair is exquisite and exquisite, occupying only 0.14m3 after folding, which is convenient for daily storage and carrying. Pingfang electric wheelchair adopts hub type brushless motor, which can save electricity, save energy, and have a longer driving range, making your trip more comfortable. One-button quick belt folding, income comfortable, operation brief.

The use of brushless motor makes the vehicle's energy conversion efficiency greatly improved, and then enhances the range of the vehicle;Aluminum frame, front and back folding structure;Up and down can be turned up type handrails, adjustable before and after the safety of the handle.

Aluminum alloy has high specific strength, light weight, good fluidity, strong filling capacity, good corrosion resistance and low melting point. It is widely used in locomotive parts, medical equipment and other industries.

Lightweight aluminum transit wheelchair.It can be put into trunk easily for its foldable lightweight aluminum alloy frame.Aluminum frame enables the wheelchair ultra-lightweight, only weighs 18.5kg.

The product specifications you cared most

Model Number DYN30A (D07) Type Elecctric Wheelchair
Net Weight (without Battery) 18 KG / 39.68 lbs Battery Weight 1.5 KG / 3.31 lbs
Distance 15KM/ 9.3mi Or 30KM/18.64mi Maximun Speed 6KM/H
Load Capacity 100kg/220lb Charge Time 5h
Battery Capacity 24V 8AH Or 24V 16AH Motor 150W *2 brushless motor
Unfolded(LxWxH) size 87.5x57x87.5cm Seat Size 40*44*6cm
Folded Size 57*29*69cm Packing Dimension 65*36*77cm
Front Wheel 7*2 PU Tyre
or 8
*2 Pneumatic tyres
Rear Wheel 8” Rubber wheel filled with PU
Joystick Left, Right or Backrest***** Cushion Removable
Charger Input 100-240 VAC 50/60Hz Grade Ability 10°
Anti-tip device Yes Seat Belt Yes
Tools Yes Flip-up Armrest Yes
Battery type Lithium Ion Battery Color Yellow, Black, Red, Silver****

*Error and uncertainty in measurement
Packaging

Individual Package Weight 25kg/55lb # of PCS /Master Carton 1pc
Individual Package Dimension (L*W*H) 65*36*77cm # of 20'' container 162pcs
Packing Carton All sides of the interior are protected by pearl cotton # of 40'' container 324pcs

*Error and uncertainty in measurement

Comfortable

Use breathable cushion comfortable and can be removable for cleaning. And The tightness of the seat back cushion can be adjusted according to the user's demand. Users will not feel tired after sitting for a long time.

Electrical appliances are highly compatible. The noise of the motor is low, So in the library and other quiet places can be safely used, will not affect others.
Security
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
