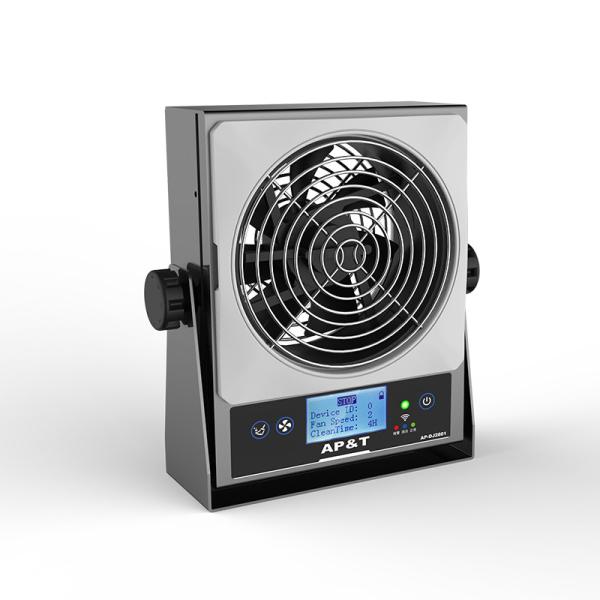

Portable Anti Static Eliminator Modular DC 55W Ion Air Blower
Portable Anti Static Eliminator Modular DC 55W Ion Air Blower
Specifications
Brand Name :
AP&T
Model Number :
DJ28 Ionizing air blower
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, MoneyGram，paypal
Supply Ability :
1000 pcs per month
Delivery Time :
5 working days
Packaging Details :
In cartons
Input Current :
＜ 0.25A AC
package size: :
39X33X19 cm
Ion emission :
DC
pplication: :
Electronic Equipment
Product Name :
anti static eliminator ion air blower
Shipping :
Express or Shipping
Air volume :
≤93CFM*4
Power :
55W
Description

portable antistatic anti static eliminator ion air blower

◆ Product features

1, touch the switch button, easy and quick operation.
2. With multiple air outlets, produce a large number of ions.
3, with automatic needle brush function.
4. Automatically brush needles every 8 hours by default, eliminating manual cleaning and maintenance of needles.
5, five speed wind speed, stable performance.
6, with liquid crystal display, can display equipment address, wind speed gear, cleaning cycle, as shown below:
7. When the fan fails and ion balance is abnormal, the red light will alarm.
8. The ion output characteristics of air blower can be adjusted remotely.
9, can realize network communication, monitoring the fan working status.
10. Passed the CE test, with electromagnetic protection function, will not cause electromagnetic interference to other equipment; In addition, it can effectively prevent external electromagnetic interference from affecting the normal operation of the air blower.
11, machine structure modular, convenient disassembly and maintenance.

◆ Industry applications

It can be widely used in electronics, semiconductor, optoelectronics and other industries etc.

◆ Installation and use guide:


(1) Select the best heat dissipation position, and install the fan and the supporting power adapter firmly.
(2) Connect the power cable connected to the adapter to the RJ45 power socket of the eliminator , and connect the three-phase power socket to the power board.
(3) Gently touch the power switch on the front panel of the ion air blower. After the ion fan is turned on, the ion fan will brush the needle automatically. When the indicator light is green, the fan will work normally.

Model No AP-DJ2811 Ionizer
Input voltage DC 24V (dual RJ45 interface)
Input current <0.6A
Output voltage DC±5KV→±5.5KV
Power <14.5W
Emitter electrode Tungsten
Discharge range 750*300mm(L*W)
Air volume <179CFM
Noise <75dBA(150mm from air outlet)
Ozone thickness ≤0.05ppm(150mm from air outlet)
Ion balance ≤|±10V|
Discharge speed ≤1.5S(300mm from air outlet)
Alarm indication

Boot instant-blue light

Normal working -Green light(Under monitoring)

Fan alarm -Red light flash with beeping

Ionization abnormal-Red light slow flash with beeping

Blue light blinks when infrared debugging
Working temperature 0℃-50℃
Working humidity <70%RH
Dimension 177*81*205.5mm(L*W*H)
Power adaptor

1. Interface power supply (default configuration):

INPUT: AC100—240V 50 / 60Hz;

OUTPUT: DC24V 2A (dual RJ45 interface)

2. Jack-type power supply (customized):

INPUT: AC100—240V 50 / 60Hz;

OUTPUT: DC24V 2A (5.5 * 2.5 single male head)

Integrated power supply

(Optional)

INPUT:AC100—250V 50/60Hz

OUTPUT: DC24V 2A (16 RJ45 interfaces)
Shell material Aluminum dusting
Installation accessories 1 pair of U-shaped aluminum powder spraying mounting bracket, 2 pairs of stainless steel screw handles (M5 × 8)
Weight Bare metal (including bracket) 1125g
Net weight (network cable, power cord, adapter, remote control) 1590g
Gross weight 2080g
Shipping Multipal Selection To Choose
