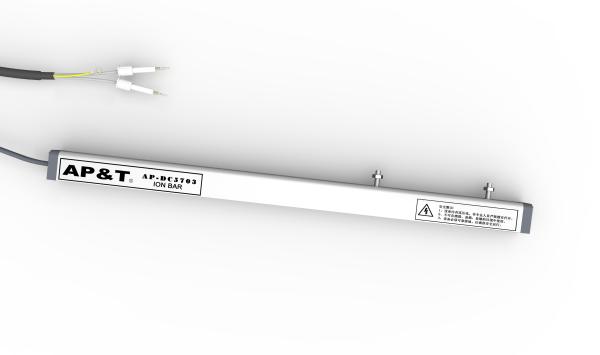

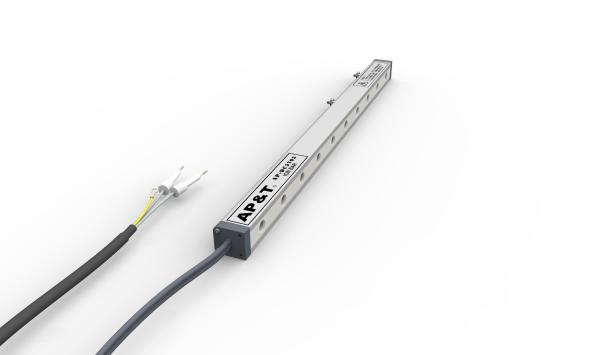

AP-DC5703 Industrial 30 - 100mm Bar Type Ionizer Static Eliminator Bar For Paper
AP-DC5703 Industrial 30 - 100mm Bar Type Ionizer Static Eliminator Bar For Paper
AP-DC5703 Industrial 30 - 100mm Bar Type Ionizer Static Eliminator Bar For Paper
AP-DC5703 Industrial 30 - 100mm Bar Type Ionizer Static Eliminator Bar For Paper
Specifications
Brand Name :
AP&T
Model Number :
AP-DC5703
Certification :
CE
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs / month
Delivery Time :
3 to 5 working days
Packaging Details :
Standard Export Packing (Carton)
Power :
5W
Input Voltage :
220V/50HZ or 110V/60HZ
Output voltage :
AC7.0KV
Air pressure :
5-7Kg
Keyword :
ionizing air bar
Operating voltage :
5.6KV
Current consumption :
0.04mA
Warranty :
One Year
Description

AP-DC5703 Industrial 30 - 100mm Bar Type Ionizer Static Eliminator Bar For Paper

1. Features

1) Static Eliminator Bar shaped and cross over static eliminator

2) Excellent electrical property data by applying the newest static eliminating technology

3) Two groups of independent positive and negative high voltage electrode with long lifetime

4) Stripe shaped notch on the back of the Static Eliminator bar for users to fasten the bar with M6 bolt

5) Working under high voltage and micro current with good safety performance

2. Industry Applications

Used in textile, plastic, film and printing industries or Others

3. Specification

AP-DC5703 Industrial 30 - 100mm Bar Type Ionizer Static Eliminator Bar For Paper

4. Working Ways(DC)

AP-DC5703 Industrial 30 - 100mm Bar Type Ionizer Static Eliminator Bar For Paper

5. Elimination Effect

AP-DC5703 Industrial 30 - 100mm Bar Type Ionizer Static Eliminator Bar For Paper

Testing instrument :3M-711 Static tester

Testing standard :SJ/T10694-2006,GB/T14437-97

Testing voltage :±1000 — ±100V Attenuation

Testing environment :Humidity 30%—50% Temperature 20±5℃

6. Outline Dimensional Drawing

AP-DC5703 Industrial 30 - 100mm Bar Type Ionizer Static Eliminator Bar For Paper

7, Positioning

AP-DC5703 Industrial 30 - 100mm Bar Type Ionizer Static Eliminator Bar For Paper

AP-DC5703 Industrial 30 - 100mm Bar Type Ionizer Static Eliminator Bar For PaperAP-DC5703 Industrial 30 - 100mm Bar Type Ionizer Static Eliminator Bar For Paper
