Aluminum Alloy 25W Printing Anti Static Bar 100mm Working Distance
Aluminum Alloy 25W Printing Anti Static Bar 100mm Working Distance
Specifications
Brand Name :
AP&T
Model Number :
AP-AB1205
Certification :
CE & ISO9001
Place of Origin :
Shanghai China
MOQ :
5pcs
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
5-7 business days
Packaging Details :
Cartons
name :
antistatic bar
Decay time :
≤2S
Warranty :
1 Year
Working temperature :
0 ~ 50°C
Material :
aluminum alloy
Air pressure :
0.3Mpa-0.8Mpa
Voltage :
7000-10000v
Power :
25W
Description

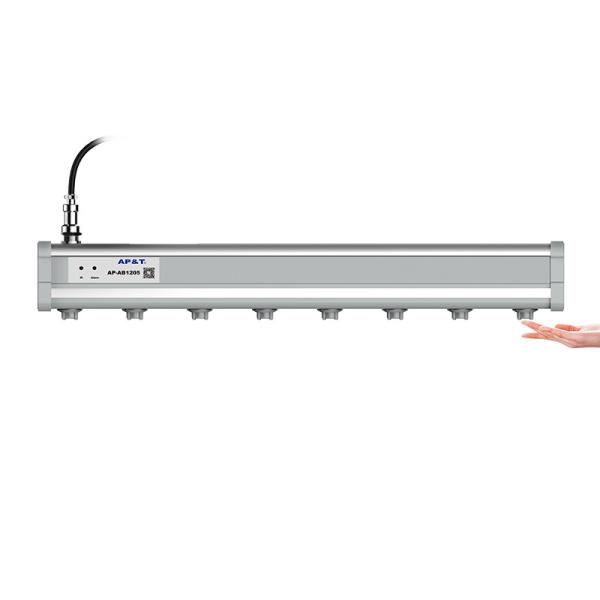

AP-AB1205 ionizing bar for digital color UV printer anti static bar

Specification

Model AP-AB1205
Output voltage DC±5KV
Output frequency 30Hz(default)
Power 10W
Working distance 30－100mm
Ion balance ≤|±30V|(AVE)
Discharge time ≤2S
Working humidity ＜70%

Aluminum Alloy 25W Printing Anti Static Bar 100mm Working Distance

Features

(1)Bar shaped and cross over static Bar

(2)Compact structure and elegant appearance

(3)Fast discharge speed, low ion balance and high safety performance

(4)Abnormal high voltage alarm function

(5)Electroshock-proof function

Working way

Aluminum Alloy 25W Printing Anti Static Bar 100mm Working Distance

Caution

Anti Static bar should be installed within the working area of static removing and installation angle should be perpendicular to the surface of the charged body

The discharge electrode of anti static bar should stay away from metal conductor, metal grounding, rods must be reliable ground connected.

Trouble shooting

NO Error Possible reason Solution
1 Power port indication LED off Poor contact of power cord Check status and stable connection of power cord
Power supply mismatch Check power supply specification(INPUT:100—240VAC 50/60Hz；OUTPUT:24VDC 1000mA)
2 Static removing performance decline obviously Pollute or damage of discharge pin Clean or replace discharge pin
Electrode pad not tightly screwed Be sure the electrode pad screwed tightly
Improper installation position Confirm the optimum installation position
3 Static removing performance decline There are conductor or other ion bar around Remove conductor or other ion bar
4 HV Alarm Electromagnetic disturb Switch off and reset
Abnormal discharge Check installation position and be away from conductors
Pollute or damage of discharge pin Send back to manufacturer
5 Smoking or burning Pollute or damage of discharge pin or electrode pad insulator Send back to manufacturer

Aluminum Alloy 25W Printing Anti Static Bar 100mm Working Distance

Aluminum Alloy 25W Printing Anti Static Bar 100mm Working Distance
