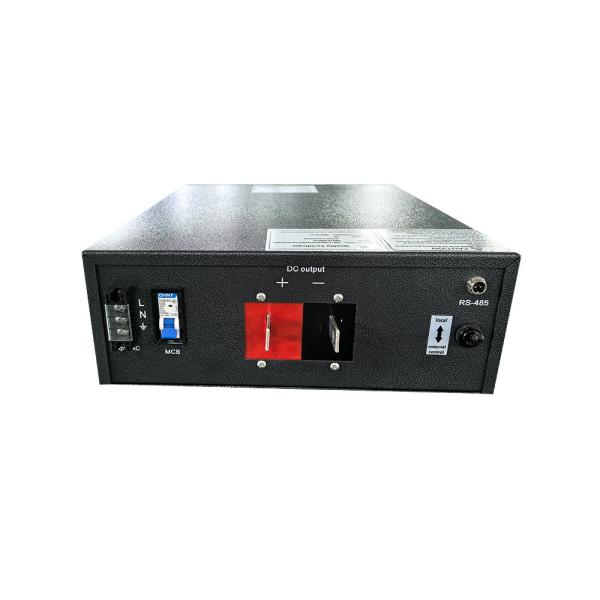

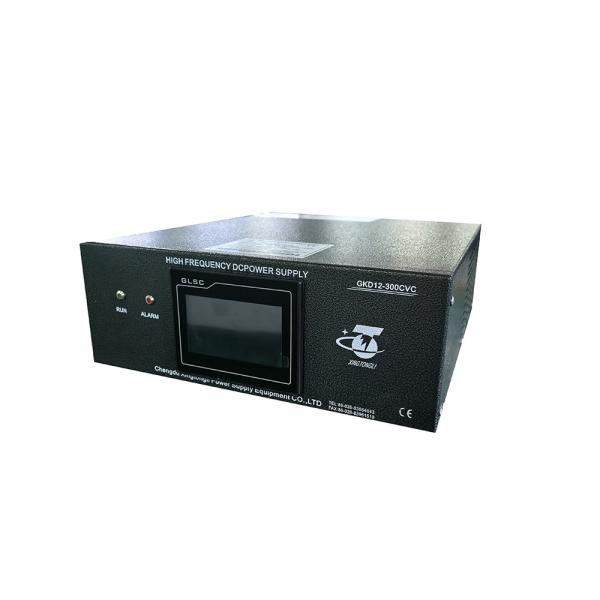

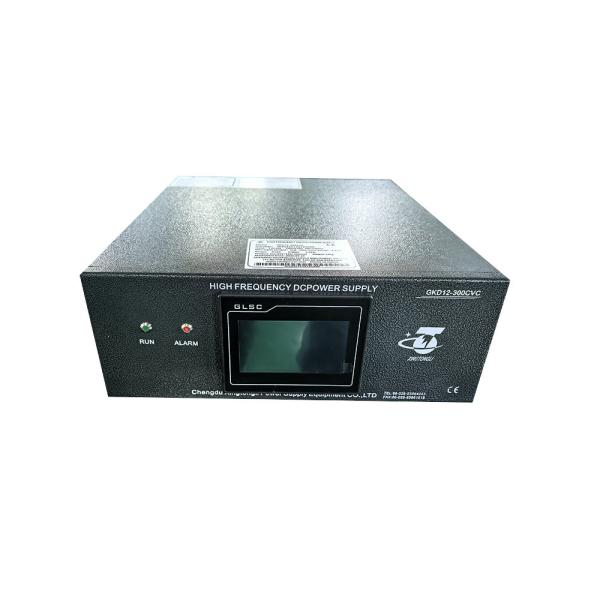

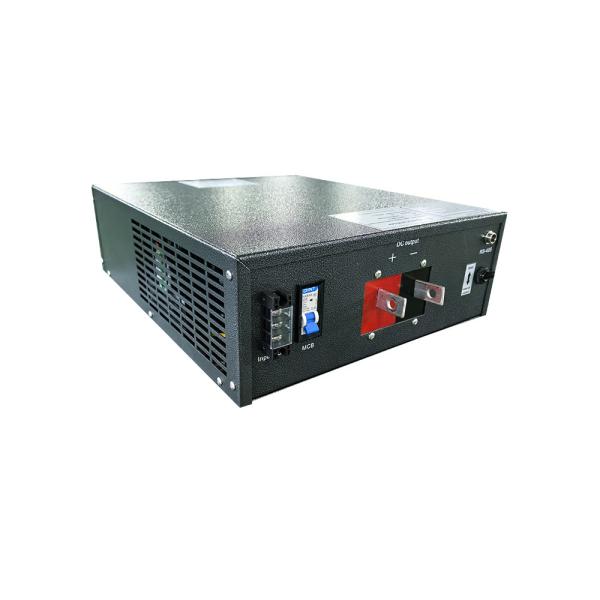

12V 300A Single Phase LGBT High Frequency DC Power Supply Plating Rectifier
12V 300A Single Phase LGBT High Frequency DC Power Supply Plating Rectifier
12V 300A Single Phase LGBT High Frequency DC Power Supply Plating Rectifier
12V 300A Single Phase LGBT High Frequency DC Power Supply Plating Rectifier
12V 300A Single Phase LGBT High Frequency DC Power Supply Plating Rectifier
12V 300A Single Phase LGBT High Frequency DC Power Supply Plating Rectifier
12V 300A Single Phase LGBT High Frequency DC Power Supply Plating Rectifier
12V 300A Single Phase LGBT High Frequency DC Power Supply Plating Rectifier
12V 300A Single Phase LGBT High Frequency DC Power Supply Plating Rectifier
12V 300A Single Phase LGBT High Frequency DC Power Supply Plating Rectifier
Specifications
MOQ :
1ps
Price :
500-600$/unit
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
5-30 working days
Packaging Details :
strong plywood standard exporting package
Description

The 12V 300A high-frequency electroplating rectifier is a DC power supply device specially designed for precision electroplating, laboratory research and development, and small-scale industrial production. It adopts 220V single-phase AC input, is compatible with the standard mains power, and has an output of 0-12V/0-300A that is continuously adjustable, ensuring that the electroplated layer is uniform and dense. It is suitable for high-precision processes such as gold plating, silver plating, and copper filling in PCB through-holes.

Core Features
High Efficiency and Energy Saving
It adopts high-frequency IGBT technology with a conversion efficiency of ≥90%, which is more than 15% more energy-efficient than traditional silicon rectifiers.
It has an ultra-low ripple (≤1%) to avoid rough or nodular plating layers and improve the surface finish.

Intelligent Control

It has local touch screen control + RS485 remote communication, supports PLC automation integration, and is suitable for intelligent production lines.

The single-chip microcomputer enables precise adjustment with a voltage/current accuracy of ±0.5%.

Industrial-Grade Reliability

It has a forced air-cooling system (with IP21 protection), intelligent temperature-controlled speed regulation, and can support full-load operation in an environment of 40°C.
It has multiple protections: overvoltage (OVP), overcurrent (OCP), short circuit (SCP), and overheating (OTP) protections are all available.


Technical Parameters
Parameters Specifications
Input voltage AC 220V ±10% (single-phase, 50/60Hz self-adaptive)
Output voltage DC 0-12V adjustable (accuracy ±0.5%)
Output current DC 0-300A adjustable (accuracy ±1A)
Maximum output power 3.6KW (12V×300A)
Cooling method Forced air cooling (noise ≤60dB)
Control mode Local touch screen + RS485 remote control
Protection functions Overvoltage/overcurrent/short circuit/overheating protection
Working environment -10°C ~ +50°C, humidity ≤85% RH (without condensation)
Certification standards CE, ISO 9001,

12V 300A Single Phase LGBT High Frequency DC Power Supply Plating Rectifier


12V 300A Single Phase LGBT High Frequency DC Power Supply Plating RectifierTypical Applications
PCB manufacturing: Copper filling in through-holes, gold plating on gold fingers.
Jewelry electroplating: Precision plating on rings/necklaces.
Laboratory research and development: Verification of small-batch electrolysis processes.
Electronic components: Tin plating on connectors, silver plating on lead frames.


Why Choose This Rectifier?
✔ Strong Compatibility: With 220V single-phase input, there is no need to modify the power grid, and it can be used immediately after being plugged in.
✔ Precise Control: It meets the requirements of micrometer-level electroplating processes.
✔ Easy Maintenance: It has a modular design, and key components (such as IGBT) can be quickly replaced.
