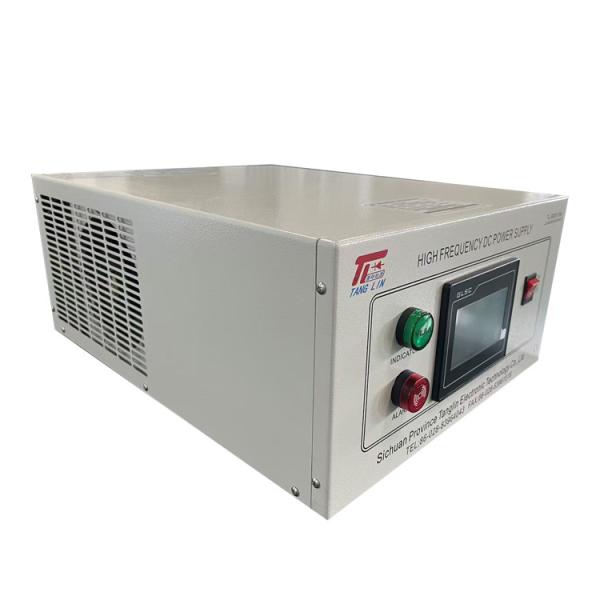

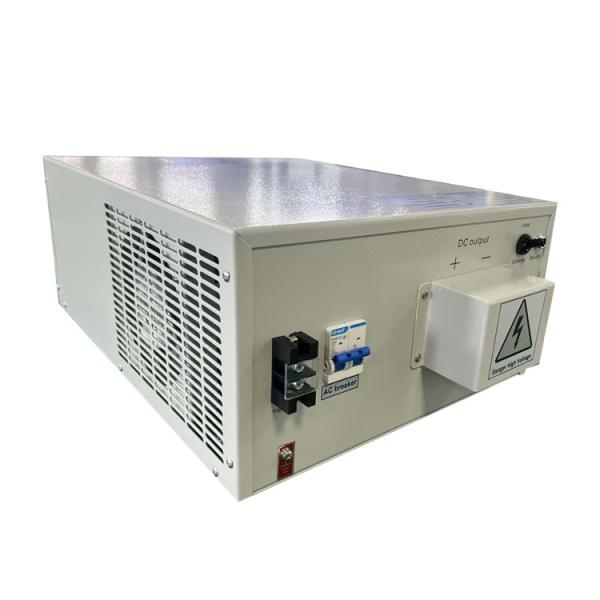

This 600V 10A high-voltage DC power supply is designed for electrolysis, electrochemical research, and industrial testing. Utilizing advanced IGBT switch mode technology, it delivers a stable and precise DC output with support for constant current and constant voltage (CC/CV) operation. The system features a touchscreen interface, remote communication (MODBUS/RS485), and multiple protection functions such as overvoltage, overcurrent, and overtemperature. Ideal for laboratory, R&D, and pilot-scale electrochemical processes.

Technical Parameters

• Input Power: Single-phase 220V AC ±10%, 50/60Hz

• Output Capability:

  • Voltage: DC 0-600V continuously adjustable

  • Current: DC 0-10A continuously adjustable

  • Power: Max. 6kW (600V × 10A)

• Regulation Accuracy: Voltage ±1%, Current ±1%

• Efficiency: ≥89% (high-frequency IGBT soft-switching technology)

• Cooling System: Intelligent temperature-controlled fan (low noise, load-adaptive speed adjustment)

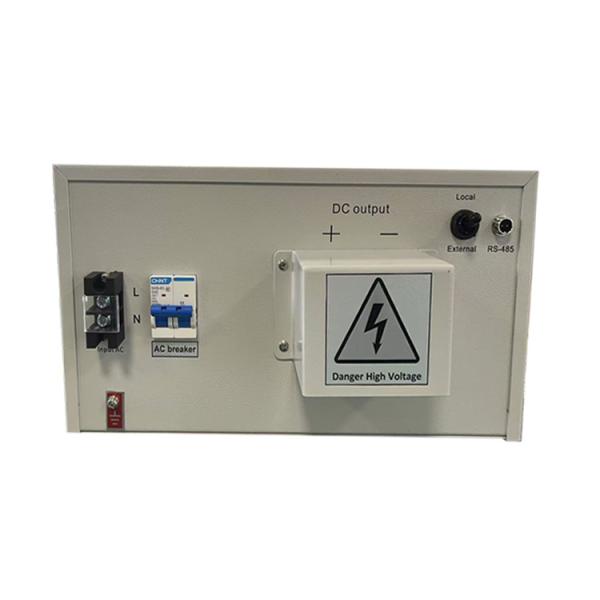

• Communication Interface: DP interface (RS485, Modbus protocol support)

• Protection Features: Over-voltage, over-current, short-circuit, overheating, input surge protection

• Control Modes: Local keypad control / remote communication control (auto CC/CV switching)

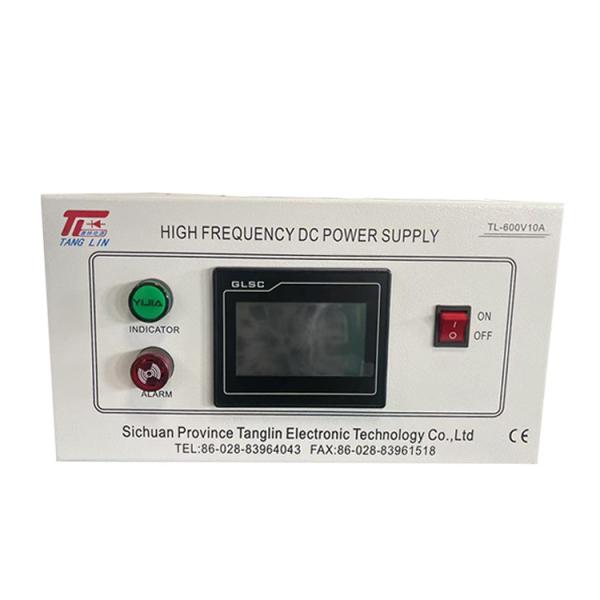

• Display Interface: LCD screen (real-time voltage, current, fault codes)

• Operating Temperature: -10℃ to +45℃

• Protection Rating: IP20 (basic dust protection)

Typical Applications

• Small-Batch Electroplating: Gold/silver plating for jewelry, nickel plating for hardware accessories.

• Electrolytic Repair: Mold surface restoration, metal part derusting.

• Laboratory Research: Electrochemical experiments, power supply for small electrolytic cells.

• Vocational Training: Electroplating process teaching equipment for technical institutes.

•
•
