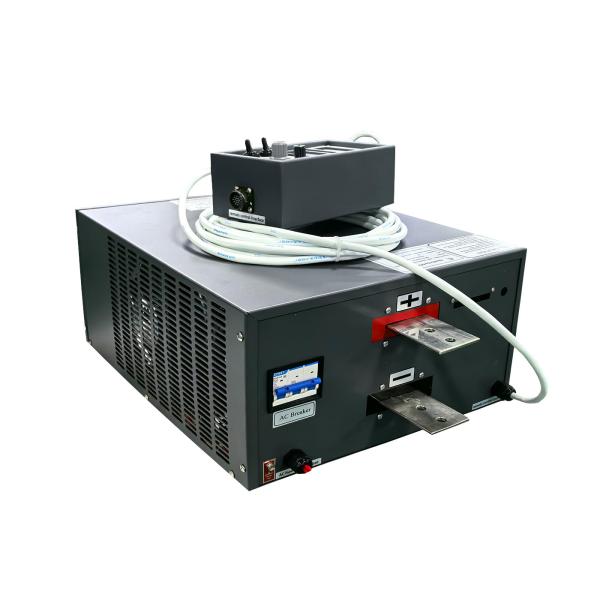

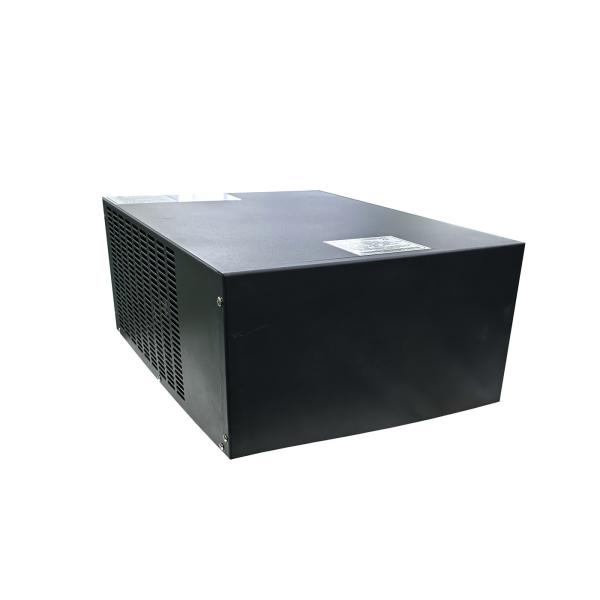

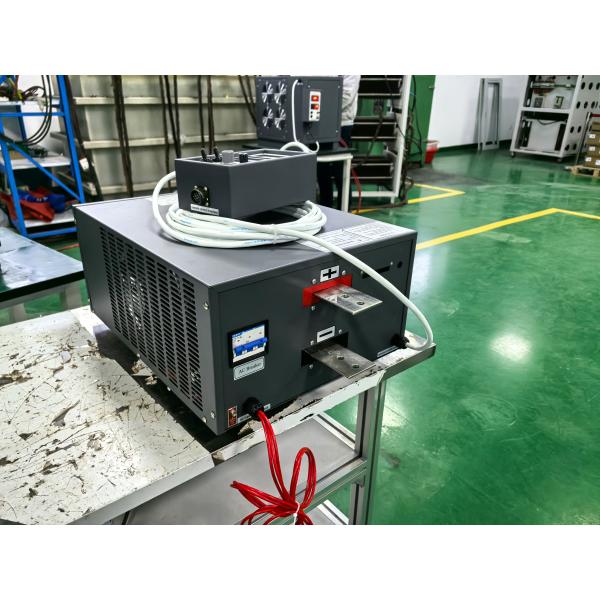

The 12V 1000A 400V 3-Phase Remote-Controlled IGBT Electroplating Rectifier is an industrial-grade power supply designed for high-precision metal plating and surface treatment. It supports a 3-phase 400V input and 0-12V/0-1000A DC output, integrated with remote control functionality (RS485/Modbus protocol) to adapt to automated production lines. Utilizing IGBT high-frequency inverter technology and a nanocrystalline soft magnetic transformer, it ensures efficient and stable power supply (efficiency ≥94%) with output ripple ≤1%, guaranteeing uniform and dense coatings for metals like nickel, copper, silver, and gold.

Product Parameters

Input Specifications

• Input Voltage: 3-Phase AC 400V
• Frequency: 50/60Hz
• Input Wiring: 3-phase

Output Specifications

• Voltage Range: 0-12V continuously adjustable
• Current Range: 0-1000A continuous output
• Output Modes: Automatic CC/CV switching with soft start to prevent inrush current
• Output Ripple: ≤1%
• Efficiency: ≥89%

Protection System

• Overcurrent Protection
• Overheat Protection
• Input Protection
• Output Protection

Mechanical and Environmental Parameters

• Cooling Method: Forced air cooling (standard silent fan with intelligent speed control)/ water cooling (optional, requires external circulation system)
• Operating Temperature: -10°C~+45°
• Protection Rating: IP54 (dustproof and water spray resistant, suitable for humid/dusty industrial environments)
• Installation Method: Cabinet floor mounting/ rack mounting (optional rail brackets)

Certifications and Compliance

• Safety Certifications: CE certification (LVD Low Voltage Directive + EMC Electromagnetic Compatibility Directive), RoHS 2.0 lead-free certification
• Industry Standards: Compliant with GB/T 3859.1-2013 Semiconductor Converters and ISO 9001 quality management system
