Specifications
Brand Name :
Xingtongli
Model Number :
GKD12-2000CVC
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
1575-1775$/unit
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
5-30 working days
Packaging Details :
strong plywood standard exporting package
Description

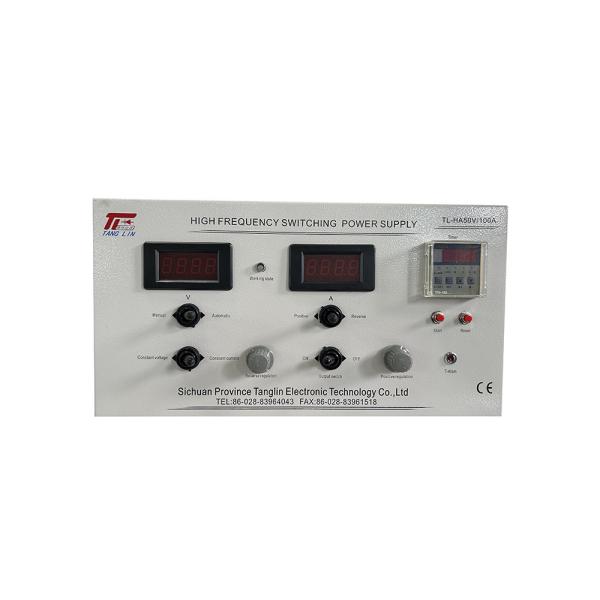

50V 100A Reversing Power Supply Rectifier for Electroplating & Electrolysis

The 50V 100A reversing power supply provides stable DC output with forward and reverse polarity functions. It is widely used in electroplating, electrolysis, anodizing, and surface treatment applications. Designed for precision and reliability, this unit ensures efficient operation and long service life in industrial environments.


Technical Specifications
  • Input Power: Single-phase 220V AC ±15%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-50V continuously adjustable
    • Current: DC 0-100A continuously adjustable
    • Power: Max. 5kW (50V ×100A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥90% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
