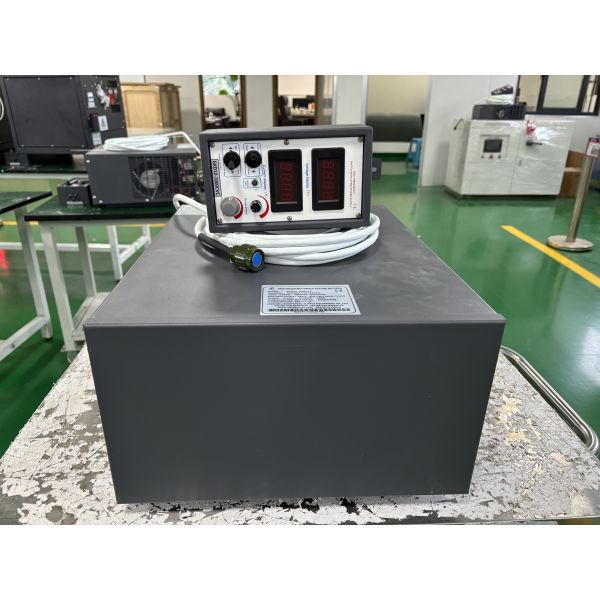

High-Capacity 12V 1000A Plating Rectifier — 400V 3-Phase Input Industrial DC Power System
High-Capacity 12V 1000A Plating Rectifier — 400V 3-Phase Input Industrial DC Power System
High-Capacity 12V 1000A Plating Rectifier — 400V 3-Phase Input Industrial DC Power System
High-Capacity 12V 1000A Plating Rectifier — 400V 3-Phase Input Industrial DC Power System
High-Capacity 12V 1000A Plating Rectifier — 400V 3-Phase Input Industrial DC Power System
High-Capacity 12V 1000A Plating Rectifier — 400V 3-Phase Input Industrial DC Power System
High-Capacity 12V 1000A Plating Rectifier — 400V 3-Phase Input Industrial DC Power System
High-Capacity 12V 1000A Plating Rectifier — 400V 3-Phase Input Industrial DC Power System
Specifications
Brand Name :
Xingtongli
Model Number :
GKD12-1000CVC
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
965-1180$/unit
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
5-30 working days
Packaging Details :
strong plywood standard exporting package
Description
High-Capacity 12V 1000A Plating Rectifier — 400V 3-Phase Input Industrial DC Power System

Designed for demanding electroplating applications, this 12V 1000A rectifier delivers exceptional stability and high output efficiency. Powered by a 400V three-phase input, it utilizes advanced IGBT technology to ensure low ripple, precise voltage/current control, and reliable long-term operation. Its robust design supports heavy-load plating processes such as chrome, nickel, zinc, and copper, making it ideal for continuous industrial production lines. Integrated protections and programmable functions further enhance safety, consistency, and process control.



Technical Specifications
  • Input Power: three-phase 400V AC ±5%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-12V continuously adjustable
    • Current: DC 0-1000A continuously adjustable
    • Power: Max.12KW (12V ×1000A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
