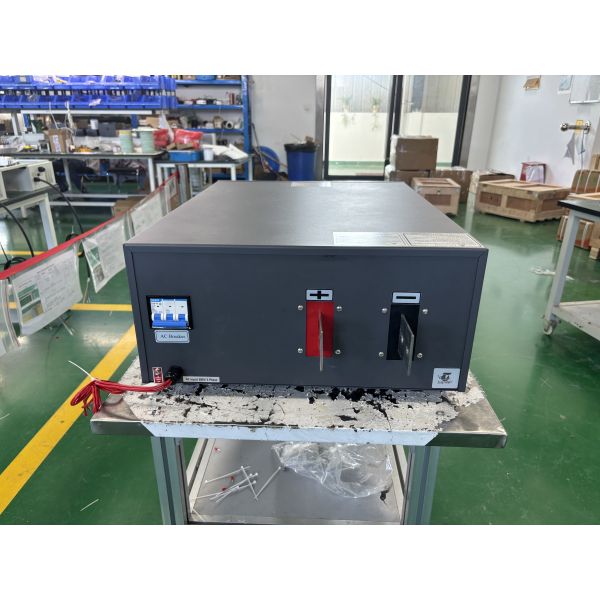

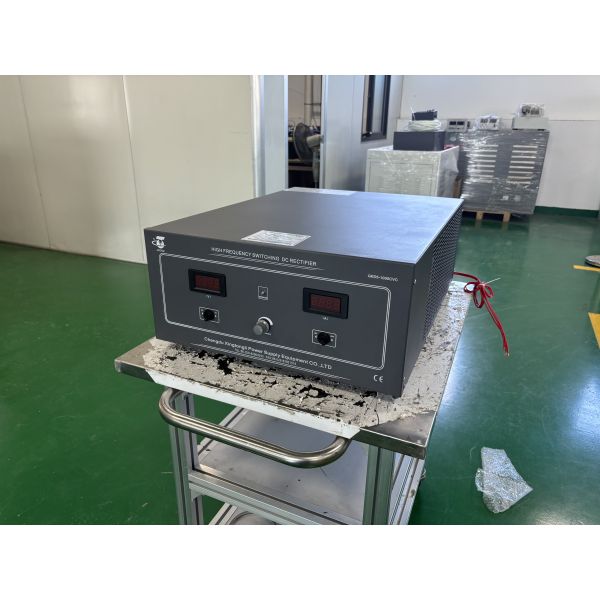

5V 1000A High-Power DC Rectifier for Electrolysis & Plating
5V 1000A High-Power DC Rectifier for Electrolysis & Plating
5V 1000A High-Power DC Rectifier for Electrolysis & Plating
5V 1000A High-Power DC Rectifier for Electrolysis & Plating
5V 1000A High-Power DC Rectifier for Electrolysis & Plating
5V 1000A High-Power DC Rectifier for Electrolysis & Plating
5V 1000A High-Power DC Rectifier for Electrolysis & Plating
5V 1000A High-Power DC Rectifier for Electrolysis & Plating
Specifications
Brand Name :
Xingtongli
Model Number :
GKD5-1000CVC
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
940-1150$/unit
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
5-30 working days
Packaging Details :
strong plywood standard exporting package
Description
5V 1000A High-Power DC Rectifier for Electrolysis & Plating

This 5V 1000A high-current industrial rectifier is engineered for applications that demand extremely stable and precise low-voltage, high-amperage DC output. Powered by a 380V three-phase input, it delivers exceptional efficiency, low ripple, and continuous heavy-load performance. Its robust design and advanced digital control system make it ideal for electrolysis, electroplating, metal finishing, hydrogen generation, battery formation, and other high-current processes. Built for reliability and durability, it ensures stable operation even in demanding industrial environments.



Technical Specifications
  • Input Power: three-phase 380V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-5V continuously adjustable
    • Current: DC 0-1000A continuously adjustable
    • Power: Max.5KW (5V ×1000A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • 5V 1000A High-Power DC Rectifier for Electrolysis & Plating
  • 5V 1000A High-Power DC Rectifier for Electrolysis & Plating
