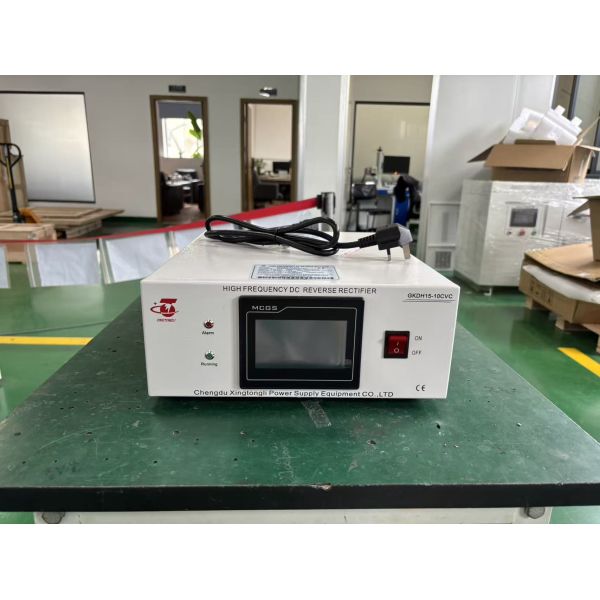

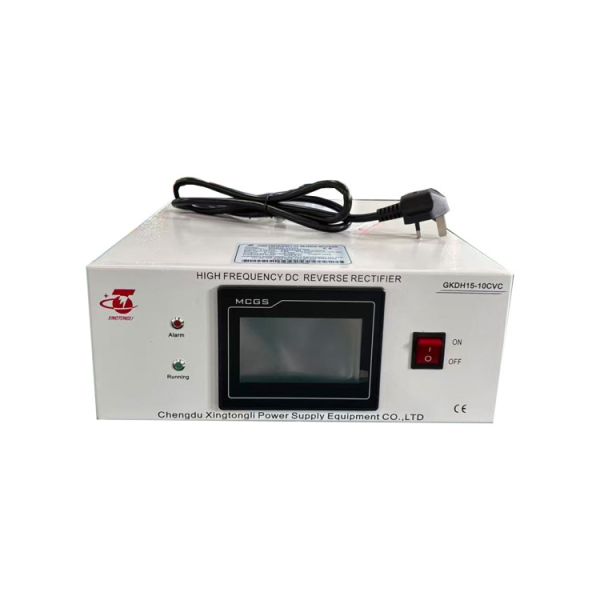

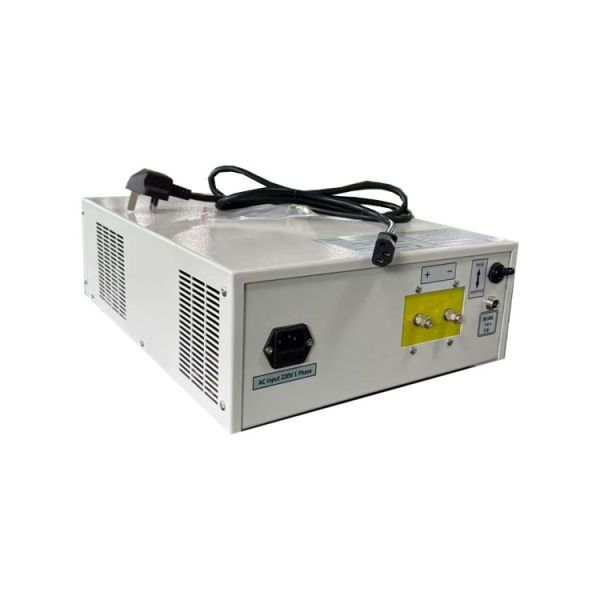

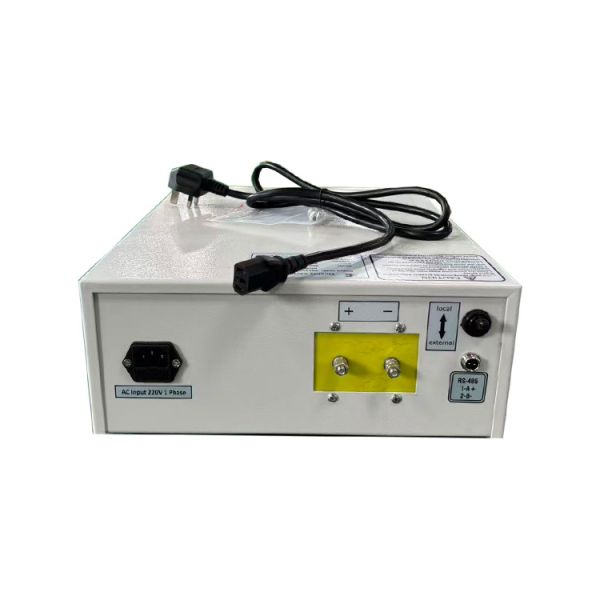

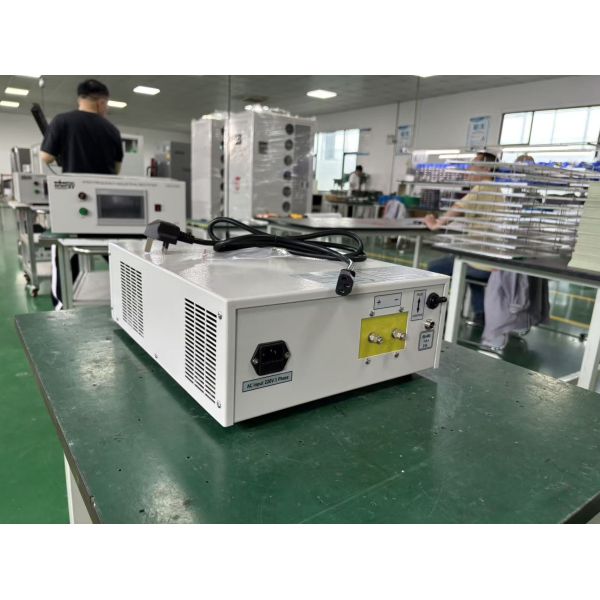

15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input
15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input
15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input
15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input
15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input
15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input
15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input
15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input
Specifications
Model Number :
GKDH15-10CVC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Price :
580-750$/unit
Supply Ability :
200 Set/Sets per Month
Certification :
CE ISO9001
MOQ :
1pcs
Delivery Time :
5-30 working days
Packaging Details :
strong plywood standard exporting package
Brand Name :
Xingtongli
Place of Origin :
China
Description

15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input

This 15V 10A polarity reversing DC power supply is designed for high-precision electrochemical and laboratory applications. It provides stable DC output with ultra-low ripple (≤1%) ensuring consistent and reliable process results. Equipped with an intelligent CPU control system, it supports HMI touch screen operation and RS485 communication for easy remote control and system integration. With 220V single-phase input, this unit is ideal for electroplating, surface treatment, and research applications requiring programmable polarity reversal and precise current control.

Technical Specifications
  • Input Power: single-phase 220V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0±15V continuously adjustable
    • Current: DC 0±10A continuously adjustable
    • Power: Max 150W (15V *10A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
