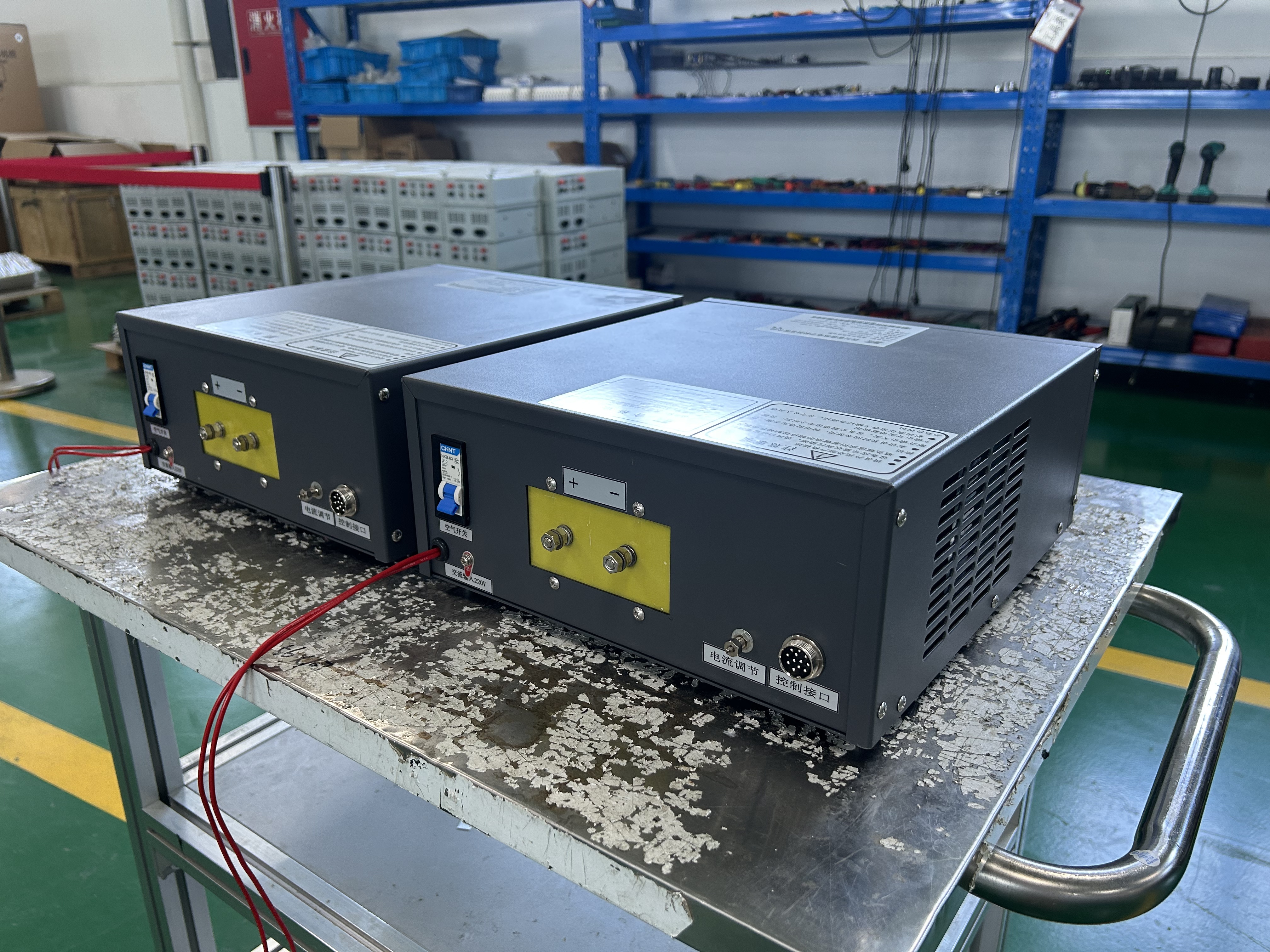

18V 50A Compact DC Power Supply for Electroplating with 220V Single Phase Input and Control Interface
18V 50A Compact DC Power Supply for Electroplating with 220V Single Phase Input and Control Interface
18V 50A Compact DC Power Supply for Electroplating with 220V Single Phase Input and Control Interface
18V 50A Compact DC Power Supply for Electroplating with 220V Single Phase Input and Control Interface
18V 50A Compact DC Power Supply for Electroplating with 220V Single Phase Input and Control Interface
18V 50A Compact DC Power Supply for Electroplating with 220V Single Phase Input and Control Interface
18V 50A Compact DC Power Supply for Electroplating with 220V Single Phase Input and Control Interface
18V 50A Compact DC Power Supply for Electroplating with 220V Single Phase Input and Control Interface
Specifications
Certification :
CE ISO9001
Model Number :
GKD18-50CVC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Price :
390-500$/unit
Supply Ability :
200 Set/Sets per Month
MOQ :
1pcs
Delivery Time :
5-30 working days
Place of Origin :
China
Brand Name :
Xingtongli
Packaging Details :
strong plywood standard exporting package
Description

18V 50A Compact DC Power Supply for Electroplating with 220V Single Phase Input and Control Interface

The 18V 50A DC power supply is designed for electroplating and other electrochemical applications requiring stable and adjustable DC output. It features 220V single phase AC input and air cooling, offering a compact and reliable solution for continuous operation. Equipped with a control interface, the unit can be integrated with external control systems for convenient operation and monitoring. It is suitable for laboratory use, small scale electroplating, anodizing, surface treatment, and other industrial applications.

Technical Specifications
  • Input Power: single-phase 220V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-18V continuously adjustable
    • Current: DC 0-50A continuously adjustable
    • Power: Max 900W (18V *50A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • 18V 50A Compact DC Power Supply for Electroplating with 220V Single Phase Input and Control Interface
  • 18V 50A Compact DC Power Supply for Electroplating with 220V Single Phase Input and Control Interface
