12V 100A High Frequency Switching DC Power Supply 220V Single Phase Input Vertical Cabinet Design Customized Industrial Power Supply
12V 100A High Frequency Switching DC Power Supply 220V Single Phase Input Vertical Cabinet Design Customized Industrial Power Supply
12V 100A High Frequency Switching DC Power Supply 220V Single Phase Input Vertical Cabinet Design Customized Industrial Power Supply
12V 100A High Frequency Switching DC Power Supply 220V Single Phase Input Vertical Cabinet Design Customized Industrial Power Supply
12V 100A High Frequency Switching DC Power Supply 220V Single Phase Input Vertical Cabinet Design Customized Industrial Power Supply
12V 100A High Frequency Switching DC Power Supply 220V Single Phase Input Vertical Cabinet Design Customized Industrial Power Supply
12V 100A High Frequency Switching DC Power Supply 220V Single Phase Input Vertical Cabinet Design Customized Industrial Power Supply
12V 100A High Frequency Switching DC Power Supply 220V Single Phase Input Vertical Cabinet Design Customized Industrial Power Supply
Specifications
Model Number :
GKD12-100CVC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Place of Origin :
China
Packaging Details :
strong plywood standard exporting package
MOQ :
1pcs
Delivery Time :
5-30 working days
Price :
520-650$/unit
Certification :
CE ISO9001
Supply Ability :
200 Set/Sets per Month
Brand Name :
Xingtongli
Description

12V 100A High Frequency Switching DC Power Supply 220V Single Phase Input Vertical Cabinet Design Customized Industrial Power Supply

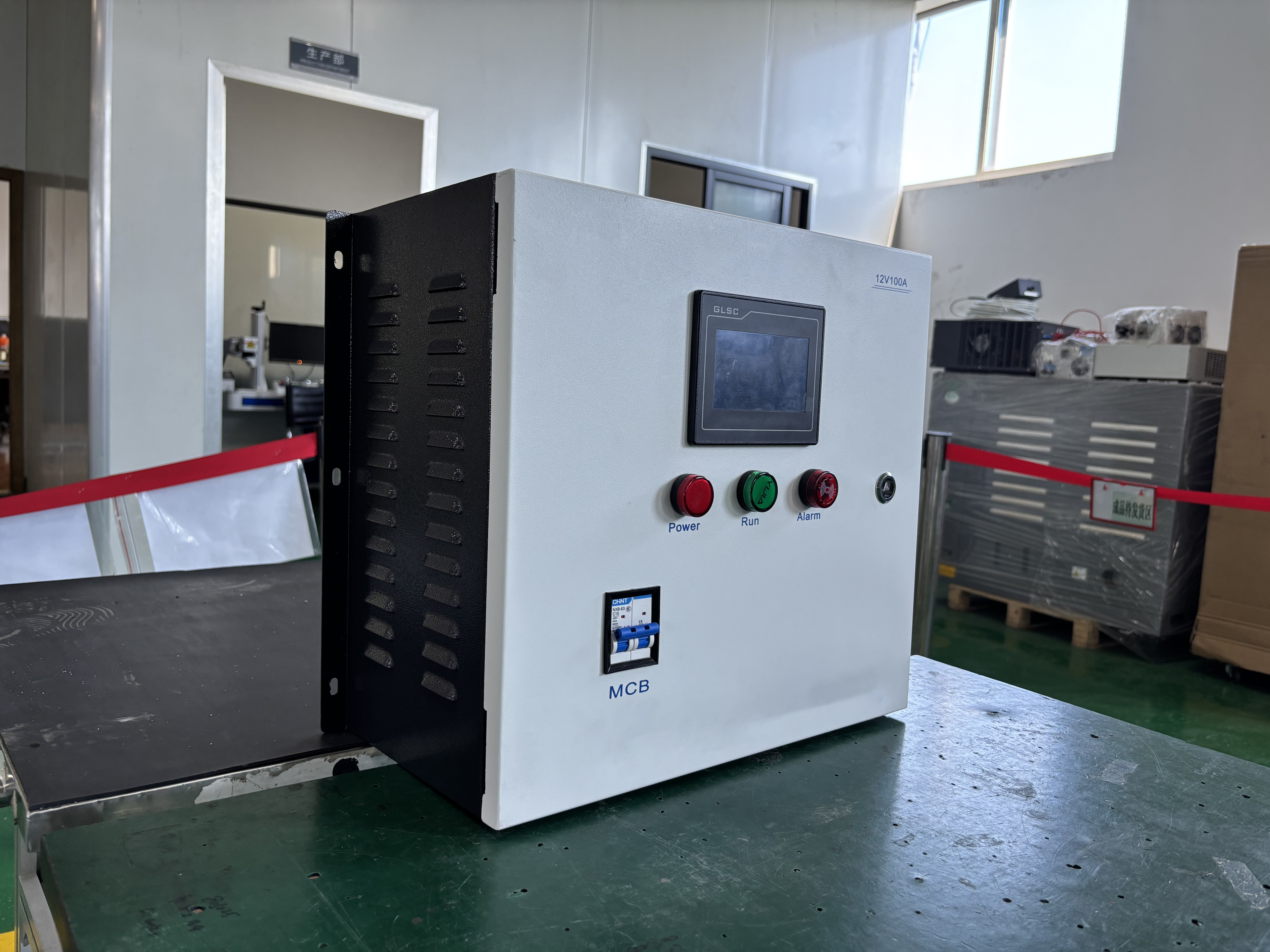

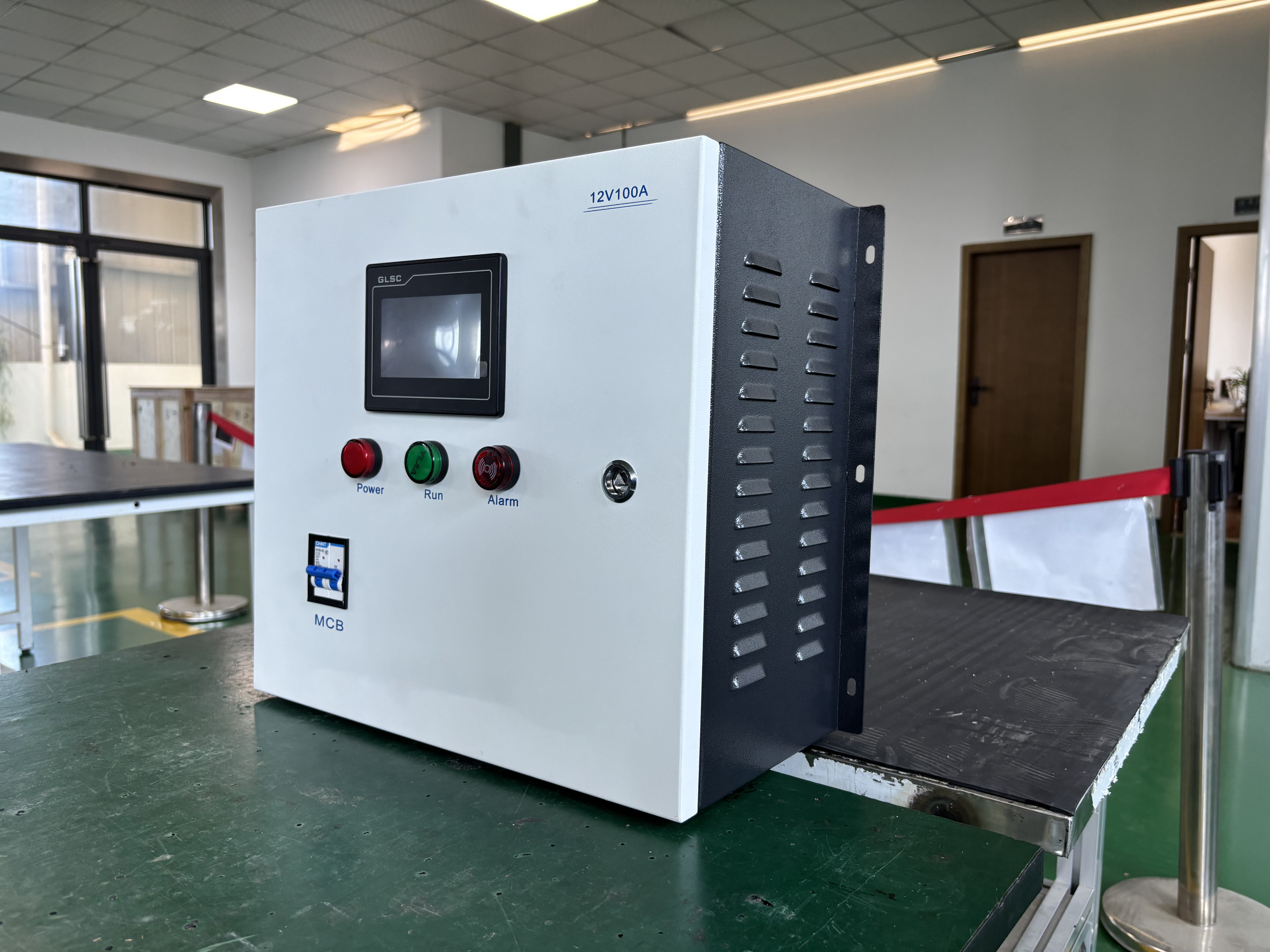

This 12V 100A high-frequency switching DC power supply features a compact vertical cabinet structure, making it suitable for space-limited industrial installations and equipment integration. Designed for applications such as electroplating, laboratory testing, battery charging, automation systems, and DC power supply requirements, it provides stable output, fast response, and high conversion efficiency. The unit supports 220V single-phase AC input and can be customized with different output parameters, control modes, communication interfaces, and cooling solutions according to customer needs.

Technical Specifications
  • Input Power: single-phase 220V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-12V continuously adjustable
    • Current: DC 0-100A continuously adjustable
    • Power: Max 1.2KW (12V *100A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • 12V 100A High Frequency Switching DC Power Supply 220V Single Phase Input Vertical Cabinet Design Customized Industrial Power Supply
  • 12V 100A High Frequency Switching DC Power Supply 220V Single Phase Input Vertical Cabinet Design Customized Industrial Power Supply
