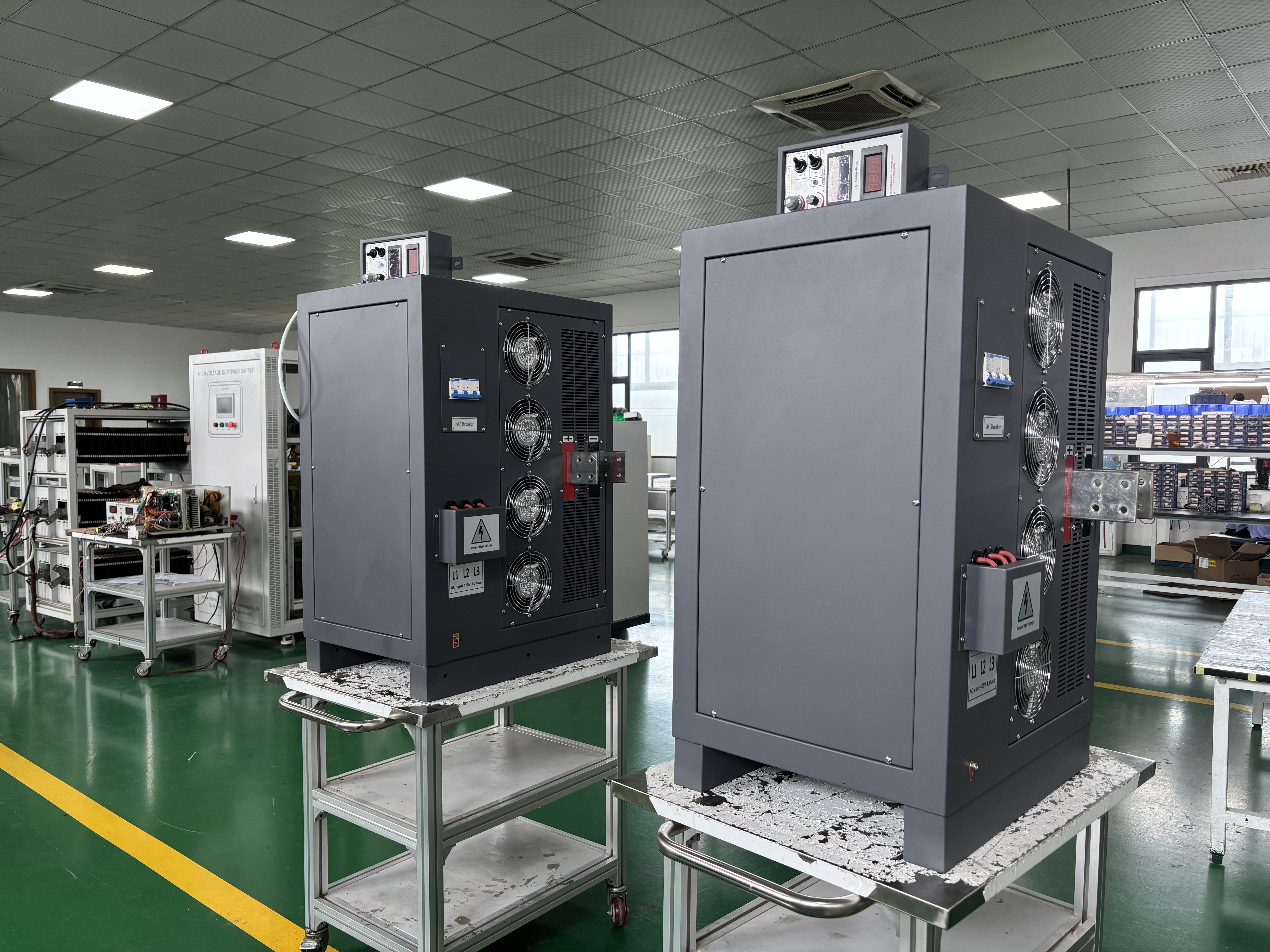

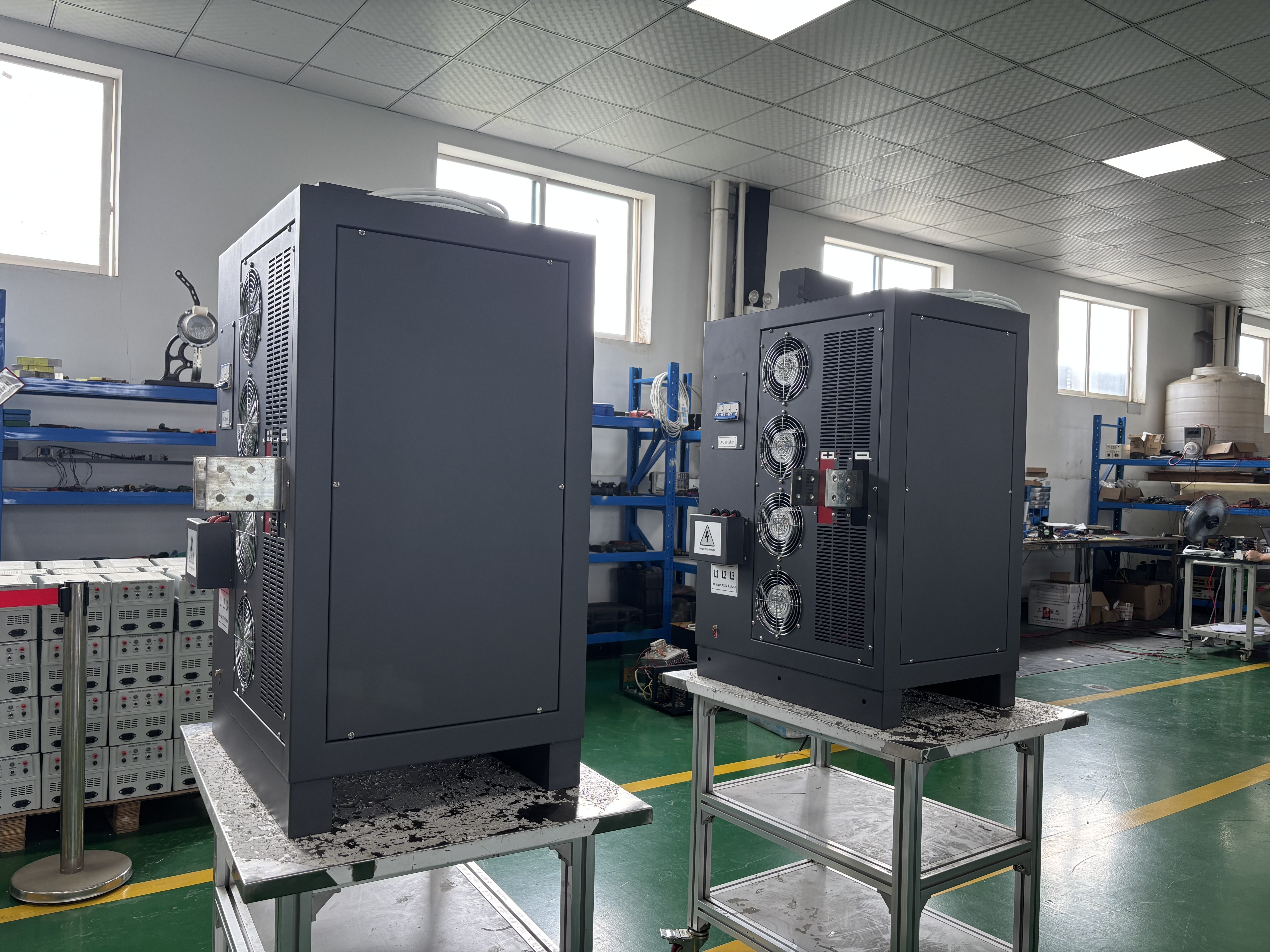

24V 2000A Electroplating Rectifier Power Supply 3 Phase 415V Input High Current DC Rectifier for Industrial Plating
24V 2000A Electroplating Rectifier Power Supply 3 Phase 415V Input High Current DC Rectifier for Industrial Plating
24V 2000A Electroplating Rectifier Power Supply 3 Phase 415V Input High Current DC Rectifier for Industrial Plating
24V 2000A Electroplating Rectifier Power Supply 3 Phase 415V Input High Current DC Rectifier for Industrial Plating
24V 2000A Electroplating Rectifier Power Supply 3 Phase 415V Input High Current DC Rectifier for Industrial Plating
24V 2000A Electroplating Rectifier Power Supply 3 Phase 415V Input High Current DC Rectifier for Industrial Plating
24V 2000A Electroplating Rectifier Power Supply 3 Phase 415V Input High Current DC Rectifier for Industrial Plating
24V 2000A Electroplating Rectifier Power Supply 3 Phase 415V Input High Current DC Rectifier for Industrial Plating
Specifications
Model Number :
GKD24-2000CVC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Place of Origin :
China
Packaging Details :
strong plywood standard exporting package
MOQ :
1pcs
Delivery Time :
5-30 working days
Price :
2200-2580$/unit
Certification :
CE ISO9001
Supply Ability :
200 Set/Sets per Month
Brand Name :
Xingtongli
Description

24V 2000A Electroplating Rectifier Power Supply 3 Phase 415V Input High Current DC Rectifier for Industrial Plating

This 24V 2000A electroplating rectifier is designed for high-current DC power applications such as electroplating, anodizing, surface treatment, and industrial processes. With 415V three-phase AC input, it provides stable and reliable DC output with high efficiency and precise current/voltage control. The rectifier supports customized specifications, including output voltage/current, cooling method, control mode, and communication interface to meet different industrial requirements. Built with advanced IGBT switching technology, it features high efficiency, low ripple, and multiple protection functions for safe and continuous operation.

Technical Specifications
  • Input Power: three-phase 415V AC ±5%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-24V continuously adjustable
    • Current: DC 0-2000A continuously adjustable
    • Power: Max 48KW (24V *2000A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • 24V 2000A Electroplating Rectifier Power Supply 3 Phase 415V Input High Current DC Rectifier for Industrial Plating
  • 24V 2000A Electroplating Rectifier Power Supply 3 Phase 415V Input High Current DC Rectifier for Industrial Plating
